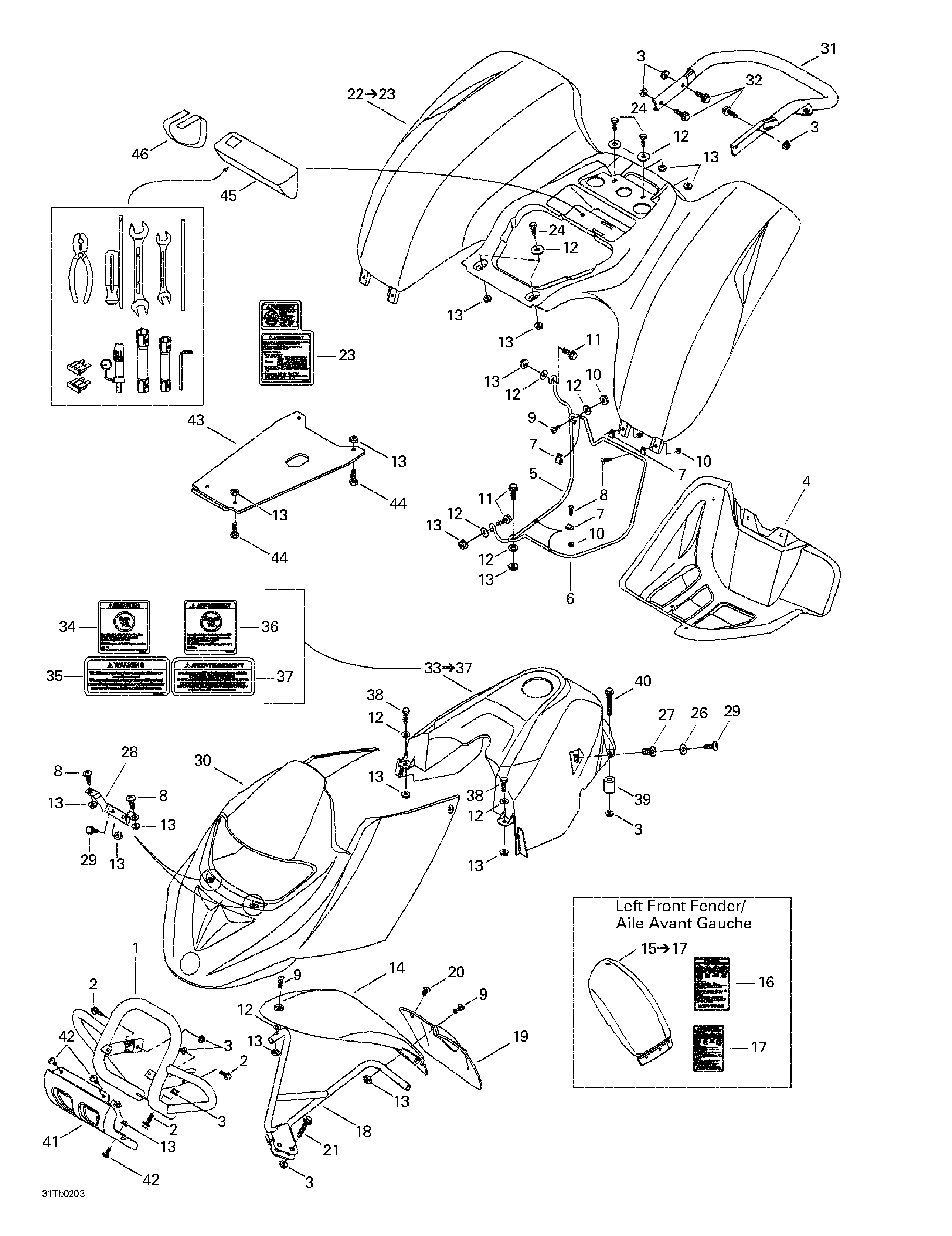

09- Body для BRP DS 650 - 2002
-
№АртикулНазвание
-
1705000142 Front BumperFront Bumper
-
2207682544 Hex. Flanged Screw M8 x 25Hex. Flanged Screw M8 x 25
-
3233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
4705000301 R.H. Foot ProtectorR.H. Foot Protector
-
705000302 LH Foot ProtectorLH Foot Protector
-
5705000116 R.H. SupportR.H. Support
-
705000119 LH SupportLH Support
-
6705000117 R.H. SupportR.H. Support
-
705000120 LH SupportLH Support
-
7293650111 Gear ClampGear Clamp
-
8211000123 Screw M6 x 20Screw M6 x 20
-
9250000032 Screw M6 x 30Screw M6 x 30
-
10232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
11207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
12224061201 Flat WasherFlat Washer
-
13233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
14705000270 R.H. Front Fender (DS Yellow)R.H. Front Fender (DS Yellow)
-
705000360 R.H. Front Fender (DS Black)R.H. Front Fender (DS Black)
-
15703500126 LH Front Fender Kit (DS Yellow). Includes 15 - 17.LH Front Fender Kit (DS Yellow). Includes 15 - 17.
-
703500127 LHFront Fender Kit (DS Black)LHFront Fender Kit (DS Black)
-
16704900112 Warning Label (English). (Injuries/Death)Warning Label (English). (Injuries/Death)
-
17704900002 Warning Label (French). (Injuries/Death)Warning Label (French). (Injuries/Death)
-
18705000150 R.H. Fender SupportR.H. Fender Support
-
705000151 LH Fender SupportLH Fender Support
-
19705000095 R.H. MudguardR.H. Mudguard
-
705000096 LH MudguardLH Mudguard
-
20414939500 DartDart
-
21207683544 Hex. Flanged Screw M8 x 35Hex. Flanged Screw M8 x 35
-
22703500124 Rear Fender Kit (DS Yellow). Includes 22 - 23.Rear Fender Kit (DS Yellow). Includes 22 - 23.
-
703500125 Rear Fender Kit (DS Black)Rear Fender Kit (DS Black)
-
23704900102 Warning Label Ass'y (French). (Passenger and tire Pressure)Warning Label Ass'y (French). (Passenger and tire Pressure)
-
709900040 Warning Label Ass'y (English). (Passenger and tire Pressure)Warning Label Ass'y (English). (Passenger and tire Pressure)
-
24207161844 Hex. Screw M6 x 18Hex. Screw M6 x 18
-
25250000043 Screw M6 x 20 (Scotch Grip)Screw M6 x 20 (Scotch Grip)
-
26506117300 BushingBushing
-
27732610057 Jack Nut M6Jack Nut M6
-
28705000146 Facia BracketFacia Bracket
-
29207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
30705000273 Front Facia (DS Yellow)Front Facia (DS Yellow)
-
705000363 Front Facia (DS Black)Front Facia (DS Black)
-
31705000143 Rear BumperRear Bumper
-
32207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
33703500128 Tank Cover Kit. Includes 33 - 37.Tank Cover Kit. Includes 33 - 37.
-
34704900113 Warning Label (English). (Under 16)Warning Label (English). (Under 16)
-
35704900089 Warning Label (English). (Performance/VTT)Warning Label (English). (Performance/VTT)
-
36704900012 Warning Label (French). (Under 16)Warning Label (French). (Under 16)
-
37704900105 Warning Label (French). (Performance/VTT)Warning Label (French). (Performance/VTT)
-
38207063044 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
39705000114 SpacerSpacer
-
40207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
41705000303 Protector PlateProtector Plate
-
42211000123 Screw M6 x 20Screw M6 x 20
-
43705000304 Skid PlateSkid Plate
-
44207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
45529035782 Tool KitTool Kit
-
46708200008 StrapStrap
