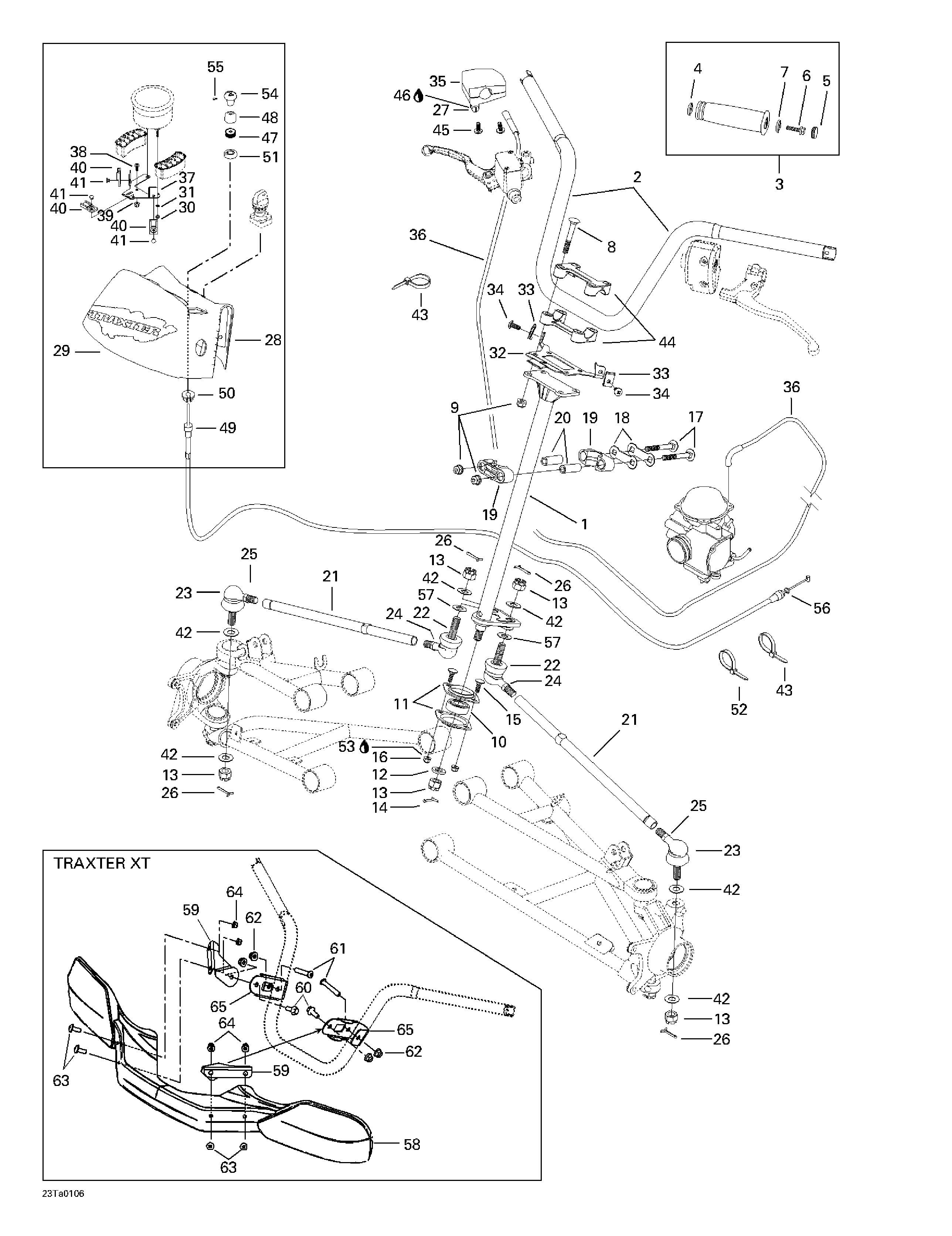

07- Steering System для BRP Traxter XT, 7467/7468/7472/7481 - 2001

  • №
    Артикул
    Название
  • 1
    709400089 Main Tube
    Main Tube
  • 2
    709400005 Handle Bar
    Handle Bar
  • 3
    295500691 Handle Bar Grip Kit - Black. Includes 3 - 7.
    Handle Bar Grip Kit - Black. Includes 3 - 7.
  • 5
    277000203 Grip Cap
    Grip Cap
  • 6
    250000002 Hex. Screw M6 x 30. (Scotch Grip)
    Hex. Screw M6 x 30. (Scotch Grip)
  • 7
    234062600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 8
    207786544 Carriage Bolt M8 x 65
    Carriage Bolt M8 x 65
  • 9
    233281414 Elastic Flanged Stop Nut M8
    Elastic Flanged Stop Nut M8
  • 10
    709400012 Thrust Bearing
    Thrust Bearing
  • 11
    709400013 Thrust Washer
    Thrust Washer
  • 12
    234021410 Flat Washer 12 mm
    Flat Washer 12 mm
  • 13
    232221414 Hex. Castellated Nut M12
    Hex. Castellated Nut M12
  • 14
    211400017 Cotter Pin
    Cotter Pin
  • 15
    207762544 Carriage Bolt M6 x 25
    Carriage Bolt M6 x 25
  • 16
    233261414 Elastic Flanged Stop Nut M6
    Elastic Flanged Stop Nut M6
  • 17
    207787044 Carriage Bolt M8 x 70
    Carriage Bolt M8 x 70
  • 18
    506150600 Stopper Plate
    Stopper Plate
  • 19
    709400034 Half Housing
    Half Housing
  • 20
    506150500 Housing Bushing
    Housing Bushing
  • 21
    709400064 Tie Rod Ass'y. Includes 21 - 25.
    Tie Rod Ass'y. Includes 21 - 25.
  • 22
    709400065 R.H. Ball Joint
    R.H. Ball Joint
  • 23
    709400066 L.H. Ball Joint
    L.H. Ball Joint
  • 24
    732610019 R.H. Hex. Jam Nut M12
    R.H. Hex. Jam Nut M12
  • 25
    732610020 L.H. Hex. Jam Nut M12
    L.H. Hex. Jam Nut M12
  • 26
    211400013 Cotter Pin
    Cotter Pin
  • 27
    250000017 Set Screw M5 x 20. (Scotch Grip)
    Set Screw M5 x 20. (Scotch Grip)
  • 28
    703500019 Steering Cover. Includes 28 - 29.
    Steering Cover. Includes 28 - 29.
  • 29
    704900024 Steering Cover Label
    Steering Cover Label
  • 30
    414303600 Nut
    Nut
  • 31
    234141601 Lock Washer 4 mm
    Lock Washer 4 mm
  • 32
    709400077 Steering Cover Support
    Steering Cover Support
  • 33
    211100050 Speednut M6
    Speednut M6
  • 34
    211000123 Screw M6 x 20
    Screw M6 x 20
  • 35
    709400016 Throttle Handle
    Throttle Handle
  • 36
    707000097 Throttle Cable
    Throttle Cable
  • 37
    710000159 Housing Support
    Housing Support
  • 38
    208651241 Screw M5 x 12
    Screw M5 x 12
  • 39
    232551414 Elastic Stop Nut M5
    Elastic Stop Nut M5
  • 40
    270000141 Clip
    Clip
  • 41
    390402400 Rivet
    Rivet
  • 42
    503175400 Hardened Washer
    Hardened Washer
  • 43
    414115200 Tie Rap
    Tie Rap
  • 44
    709400028 Steering Clamp
    Steering Clamp
  • 45
    205353046 Socket Screw M5 x 30
    Socket Screw M5 x 30
  • 46
    293800061 Loctite BLK/MAX, 20 g
    Loctite BLK/MAX, 20 g
  • 47
    707000087 Cap Holder
    Cap Holder
  • 48
    707000088 Rubber Cap
    Rubber Cap
  • 49
    707000096 Choke Cable
    Choke Cable
  • 50
    211100030 Hex. Nut
    Hex. Nut
  • 51
    707000067 Washer ''D''
    Washer ''D''
  • 52
    293750009 Tie Rap 160 mm
    Tie Rap 160 mm
  • 53
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 54
    707000089 Button
    Button
  • 55
    205030487 Socket Screw M3 x 0.5
    Socket Screw M3 x 0.5
  • 56
    293300075 O-Ring
    O-Ring
  • 57
    503189276 Washer
    Washer
  • 58
    705000183 Hand Protector. Traxter XT.
    Hand Protector. Traxter XT.
  • 59
    709400116 RH Support. Traxter XT.
    RH Support. Traxter XT.
  • 709400117 LH Support. Traxter XT.
    LH Support. Traxter XT.
  • 60
    207682044 Hex. Screw M8 x 20. Traxter XT.
    Hex. Screw M8 x 20. Traxter XT.
  • 61
    205484546 Socket Screw M8 x 45. Traxter XT.
    Socket Screw M8 x 45. Traxter XT.
  • 62
    233281414 Nut M8. Traxter XT.
    Nut M8. Traxter XT.
  • 63
    211000123 Phil Truss. Traxter XT.
    Phil Truss. Traxter XT.
  • 64
    233261414 Nut M8. Traxter XT.
    Nut M8. Traxter XT.
  • 65
    709400118 U'' Bracket`Traxter XT.``
    U'' Bracket`Traxter XT.``
