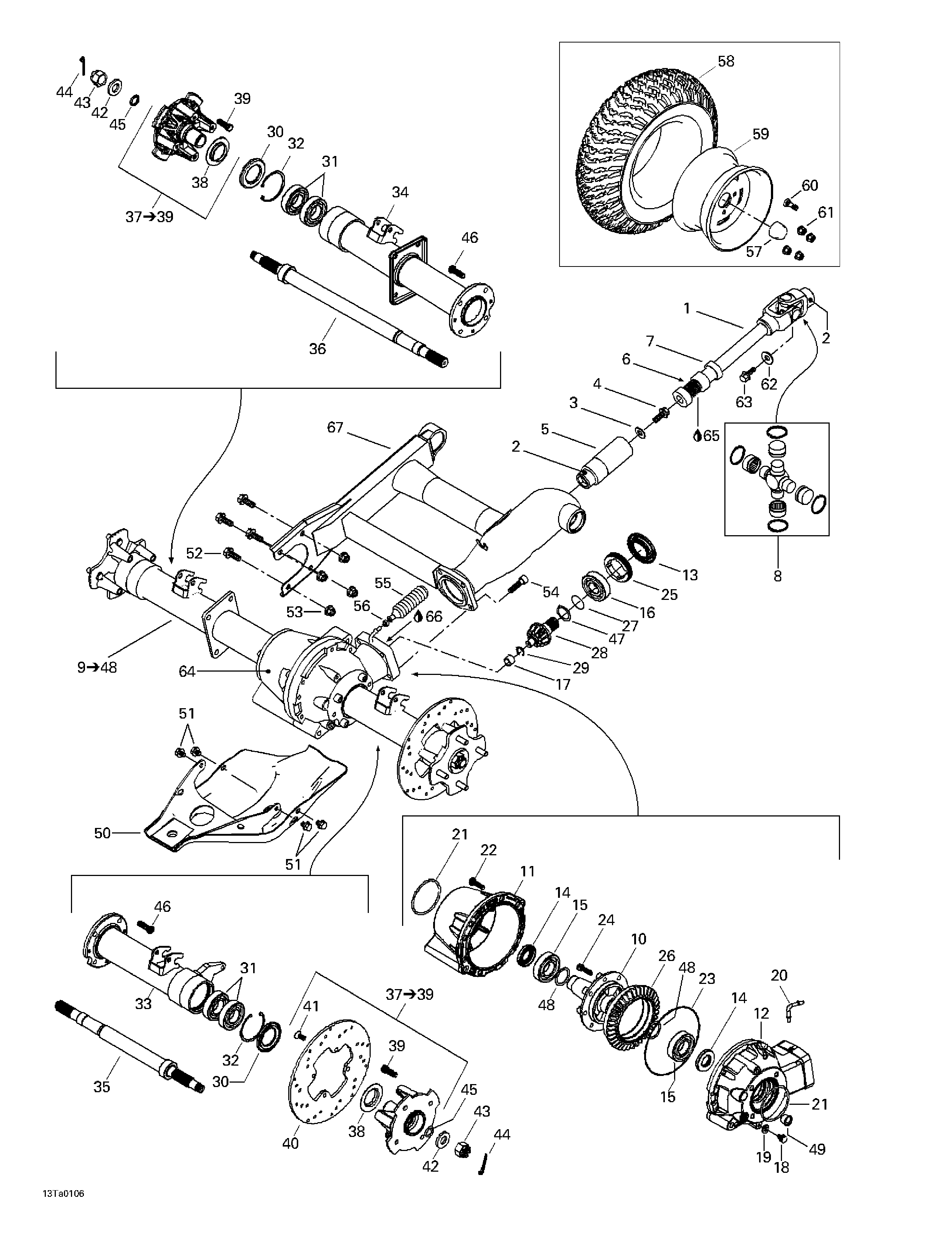

05- Drive System, Rear для BRP Traxter XT, 7467/7468/7472/7481 - 2001
-
№АртикулНазвание
-
1703500007 Rear Propeller Shaft Ass'y. Includes 1 - 8.Rear Propeller Shaft Ass'y. Includes 1 - 8.
-
2705400036 Wear RingWear Ring
-
3250200014 WasherWasher
-
4250000060 Retainer Screw M10 x 16Retainer Screw M10 x 16
-
7705500097 Sealing RingSealing Ring
-
8703500002 Universal Joint Packing KitUniversal Joint Packing Kit
-
9705500157 Rigid Axle Ass'y. Includes 9 - 46.Rigid Axle Ass'y. Includes 9 - 46.
-
10705500159 Propulsion SpoolPropulsion Spool
-
11705500013 Differential CapDifferential Cap
-
12705500014 Differential CarrierDifferential Carrier
-
13705400027 Oil SealOil Seal
-
14705500081 Oil SealOil Seal
-
15705500080 Ball BearingBall Bearing
-
16705500074 Ball BearingBall Bearing
-
17705500077 Needle BearingNeedle Bearing
-
18705500298 Drain PlugDrain Plug
-
19705500299 Sealing RingSealing Ring
-
20705500124 Vent ValveVent Valve
-
21705500078 O RingO Ring
-
22705500088 ScrewScrew
-
23705500091 SealSeal
-
24705500090 Ring Gear ScrewRing Gear Screw
-
25705500161 NutNut
-
26705500087 Gear (36 Theeth)Gear (36 Theeth)
-
27705500073 O RingO Ring
-
28705500076 Gear (10 Theeth)Gear (10 Theeth)
-
29705500102 Retaining RingRetaining Ring
-
30705500099 Oil SealOil Seal
-
31705500084 Ball BearingBall Bearing
-
32705500085 Retaining RingRetaining Ring
-
33705500156 Axle Tube R.HAxle Tube R.H
-
34705500209 Axle Tube L.HAxle Tube L.H
-
35705500049 Axle Ass'y R.HAxle Ass'y R.H
-
36705500050 Axle Ass'y L.HAxle Ass'y L.H
-
37705500006 Rear Wheel Hub. Includes 37 - 39.Rear Wheel Hub. Includes 37 - 39.
-
38705500100 Wear SleeveWear Sleeve
-
39211300020 Wheel Stud M10 x 30Wheel Stud M10 x 30
-
40705600170 Brake Disk (Rear). (7459-7460-7467-7468-7472-7481)Brake Disk (Rear). (7459-7460-7467-7468-7472-7481)
-
705600033 Brake Disk (Rear). (7465 - 7466) Traxter.Brake Disk (Rear). (7465 - 7466) Traxter.
-
41235381646 Screw M8 x 16. (Scotch Grip)Screw M8 x 16. (Scotch Grip)
-
42250200019 WasherWasher
-
43232291413 Hex. Castle Nut M18Hex. Castle Nut M18
-
44211400012 Cotter PinCotter Pin
-
45293300052 O-RingO-Ring
-
46705500149 Axle Tube ScrewAxle Tube Screw
-
703500049 Pinion Shim Kit. (Not Shown)Pinion Shim Kit. (Not Shown)
-
703500050 Differential Shim Kit. (Not Shown)Differential Shim Kit. (Not Shown)
-
49705500143 Oil Level CapOil Level Cap
-
50705000019 Rear Differential ProtectorRear Differential Protector
-
51207581046 Hex. Flanged Screw M8 x 10. (Scotch Grip)Hex. Flanged Screw M8 x 10. (Scotch Grip)
-
52207602544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
53233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
54205502544 Socket Screw M10 x 25. (Scotch Grip)Socket Screw M10 x 25. (Scotch Grip)
-
55705400066 Rubber BellowRubber Bellow
-
56293750001 Tie Rap 94 mmTie Rap 94 mm
-
57705400012 Wheel CapWheel Cap
-
58705500004 Rear Tire. (7465 - 7466) Traxter.Rear Tire. (7465 - 7466) Traxter.
-
705500314 Rear Tire. (7459 - 7460 ) Traxter.Rear Tire. (7459 - 7460 ) Traxter.
-
705500140 Rear Tire. (7467 - 7468 - 7472 - 7481) Traxter XT.Rear Tire. (7467 - 7468 - 7472 - 7481) Traxter XT.
-
59705500239 Rear Rim. (7459 - 7460 - 7465 - 7466) Traxter.Rear Rim. (7459 - 7460 - 7465 - 7466) Traxter.
-
705500309 Rear Rim. (7467 - 7468 - 7472 - 7481) Traxter XT.Rear Rim. (7467 - 7468 - 7472 - 7481) Traxter XT.
-
60705400053 Rim ValveRim Valve
-
61705400013 Nut M10Nut M10
-
62211200041 WasherWasher
-
63207581646 Hex. Flanged Screw M8 x 16. (Scotch Grip)Hex. Flanged Screw M8 x 16. (Scotch Grip)
-
64293600011 Redline Pump Oil,. 75W90, 12 x 6 ozRedline Pump Oil,. 75W90, 12 x 6 oz
-
65293550019 Grease, 60 gGrease, 60 g
-
66293800088 Sealant U - Black, 300 mlSealant U - Black, 300 ml
-
67703500023 Swing Arm Kit (voir D4)Swing Arm Kit (voir D4)
