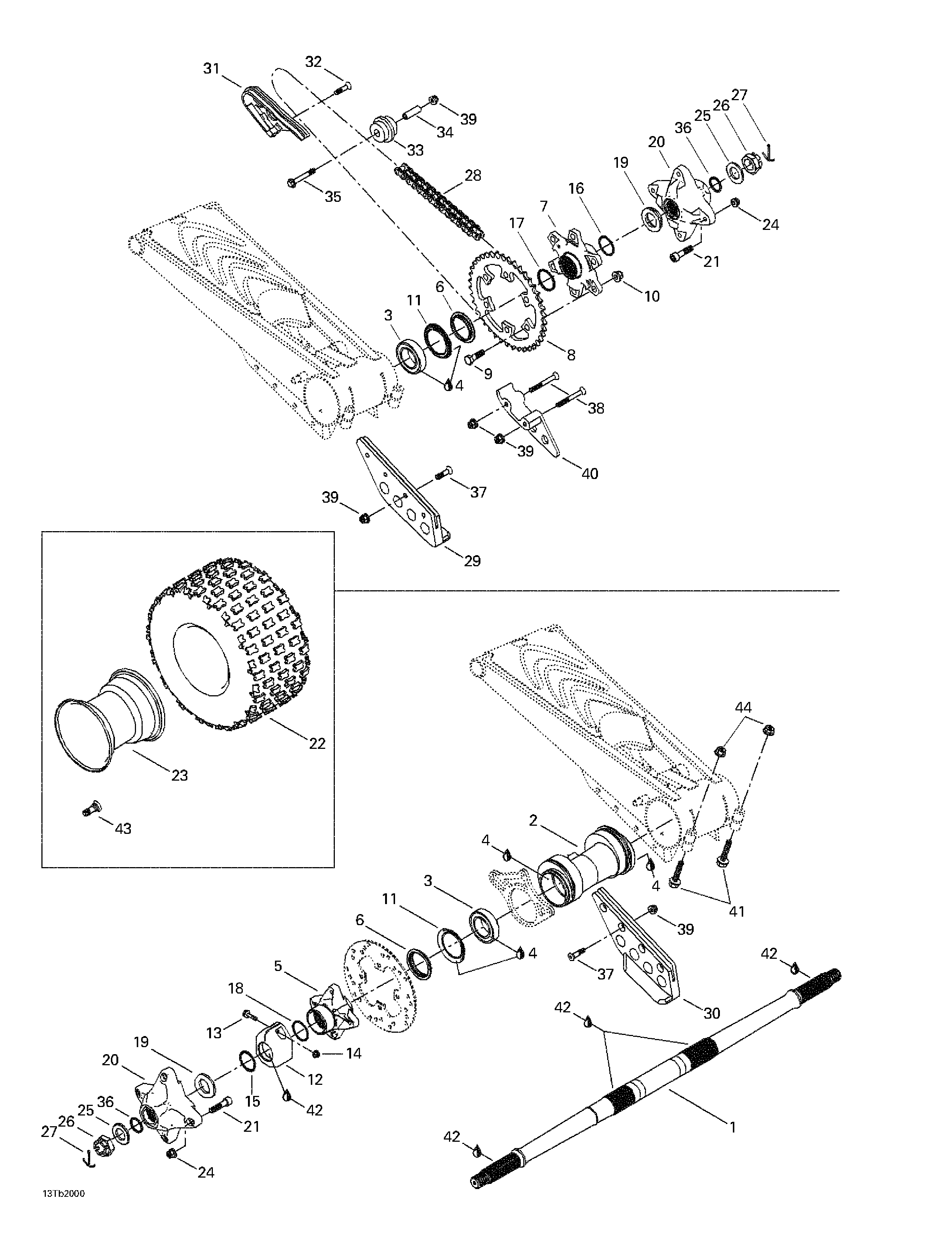

05- Drive System, Rear для BRP DS 650, 7404 - 2000
-
№АртикулНазвание
-
1705500051 Drive AxleDrive Axle
-
2705500056 Chain TightenerChain Tightener
-
3293350025 Cone BearingCone Bearing
-
4293550010 Synthetic Grease, 400gSynthetic Grease, 400g
-
5705500190 Disc Brake Hub Ass'yDisc Brake Hub Ass'y
-
6705500191 Wear RingWear Ring
-
7705500192 Sprocket HubSprocket Hub
-
8705500054 SprocketSprocket
-
9250000034 Modified ScrewModified Screw
-
10232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
11293250115 Oil SealOil Seal
-
12705500204 Adjusting NutAdjusting Nut
-
13207663044 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
14233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
15705500065 Ring RetainerRing Retainer
-
16705500108 Ring RetainerRing Retainer
-
17293300059 O-RingO-Ring
-
18293300060 O-RingO-Ring
-
19705500067 Ring SupportRing Support
-
20705500069 Wheel HubWheel Hub
-
21205504044 Socket Head Screw M10 x 40Socket Head Screw M10 x 40
-
22705500063 Rear TireRear Tire
-
23705500064 Rear RimRear Rim
-
24732610084 Flanged Nut M10Flanged Nut M10
-
25250200004 Hardened WasherHardened Washer
-
26250100006 Hex. Castellated Nut M24Hex. Castellated Nut M24
-
27211400011 Cotter PinCotter Pin
-
28705500052 ChainChain
-
29705500053 R.H. ProtectorR.H. Protector
-
30705500114 LH ProtectorLH Protector
-
31705500071 Slider-ShoeSlider-Shoe
-
32205882044 Socket Head Screw M8 x 20 (Scotch Grip)Socket Head Screw M8 x 20 (Scotch Grip)
-
33705500070 Chain RollerChain Roller
-
34705500115 BushingBushing
-
35207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
36293300064 O-RingO-Ring
-
37205383544 Socket Head Screw M8 x 35Socket Head Screw M8 x 35
-
38205387044 Socket Head Screw M8 x 70Socket Head Screw M8 x 70
-
39233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
40705500116 ProtectorProtector
-
41207606044 Hex. Flanged Screw M10 x 60Hex. Flanged Screw M10 x 60
-
42293550019 Grease, 300 mlGrease, 300 ml
-
43705400067 Rim ValveRim Valve
-
44233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
45705500206 Thrust WasherThrust Washer
-
46293800060 Loctite 243, 10 mlLoctite 243, 10 ml
