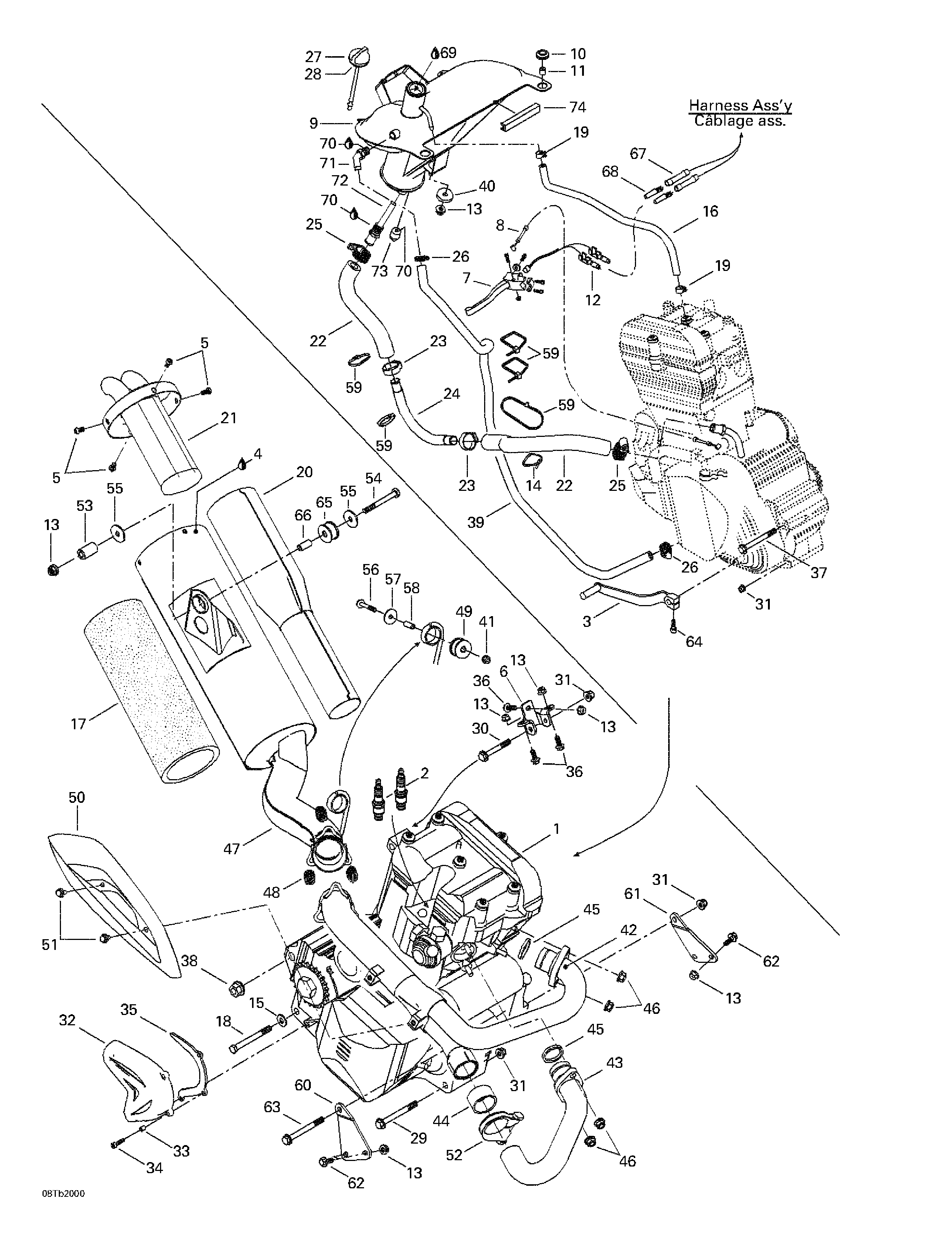

01- Exhaust System для BRP DS 650, 7404 - 2000
-
№АртикулНазвание
-
1707000023 Rotax 4 Strokes Engine >Rotax 4 Strokes Engine >
-
2707000008 Spark Plug (NGK / DR8EA)Spark Plug (NGK / DR8EA)
-
3711248317 Shifter PedalShifter Pedal
-
4413710300 Sealant, Loctite 17914, 80 mlSealant, Loctite 17914, 80 ml
-
5205461060 Socket Head Screw M6 x 10Socket Head Screw M6 x 10
-
6707000029 Support BracketSupport Bracket
-
7707000035 Shifter LeverShifter Lever
-
8707000027 Shifter Lever CableShifter Lever Cable
-
9709000012 Oil TankOil Tank
-
10293720062 GrommetGrommet
-
11707000058 SpacerSpacer
-
12278000230 Male TerminalMale Terminal
-
13233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
14293750008 Tie Rap 350 mmTie Rap 350 mm
-
15224002251 WasherWasher
-
16275500139 Hose 6 mmHose 6 mm
-
17707600089 InsulatorInsulator
-
18230202046 Hex. Screw M10 x 120Hex. Screw M10 x 120
-
19414415200 Spring ClampSpring Clamp
-
20707600053 Perforated TubePerforated Tube
-
21707600066 End PieceEnd Piece
-
22707000098 Hose 15.8 mmHose 15.8 mm
-
23293650099 Oetiker ClampOetiker Clamp
-
24707000059 Intake TubeIntake Tube
-
25293650051 Tridon Gear ClampTridon Gear Clamp
-
26293650027 Tridon Gear ClampTridon Gear Clamp
-
27707000047 OilCapAss'y. Includes 27 - 29.OilCapAss'y. Includes 27 - 29.
-
28293250009 O-RingO-Ring
-
29707000060 Oil Dip StickOil Dip Stick
-
30207507046 Hex. Flanged Screw M10 x 70Hex. Flanged Screw M10 x 70
-
31233201416 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
32707000024 Pinion CoverPinion Cover
-
33707000065 SpacerSpacer
-
34205062544 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
35707000028 Chain GuardChain Guard
-
36207682544 Hex. Flanged Screw M8 x 25Hex. Flanged Screw M8 x 25
-
37230275044 Hex. Screw M14 x 150 (Scotch Grip)Hex. Screw M14 x 150 (Scotch Grip)
-
38233271414 Elastic Flanged Stop Nut M14Elastic Flanged Stop Nut M14
-
39709000022 Hose 9.5 mmHose 9.5 mm
-
40250200002 Rubber WasherRubber Washer
-
41233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
42707600019 LH Tuned PipeLH Tuned Pipe
-
43707600095 R.H. Tuned PipeR.H. Tuned Pipe
-
44707600020 Pipe GasketPipe Gasket
-
45707600069 Pipe GasketPipe Gasket
-
46233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
47707600065 Tuned PipeTuned Pipe
-
48415107100 SpringSpring
-
49707600012 RubberRubber
-
50707600074 Heat ShieldHeat Shield
-
51207661244 Hex. Flanged Screw M6 x 12Hex. Flanged Screw M6 x 12
-
52293650093 Gear ClampGear Clamp
-
53707600049 SpacerSpacer
-
54207687044 Hex. Flanged Screw M8 x 70Hex. Flanged Screw M8 x 70
-
55224081301 Flat WasherFlat Washer
-
56207664044 Hex. Flanged Screw M6 x 40Hex. Flanged Screw M6 x 40
-
57224060251 WasherWasher
-
58707600070 SpacerSpacer
-
59414115200 Tie RapTie Rap
-
60707000071 Support R.HSupport R.H
-
61707000072 Support L.HSupport L.H
-
62207682544 Hex. Flanged Screw M8 x 25Hex. Flanged Screw M8 x 25
-
63230500046 Hex. Flanged Screw M10 x 100Hex. Flanged Screw M10 x 100
-
64205062047 Socket Head Screw M6 x 20Socket Head Screw M6 x 20
-
65707600077 RubberRubber
-
66293900025 BushingBushing
-
67278001007 Insulated SheathInsulated Sheath
-
68278001009 Female TerminalFemale Terminal
-
70293800013 Loctite 56765, Pipe Sealant, 250 mlLoctite 56765, Pipe Sealant, 250 ml
-
71420922245 Angular TubeAngular Tube
-
72707000076 StrainerStrainer
-
73250000000 Magnetic CapMagnetic Cap
-
74414506600 TrimTrim
-
75707000093 AdaptorAdaptor
-
76413703100 Loctite 609, 10 ccLoctite 609, 10 cc
-
77413705800 Loctite 414, 29.5 ccLoctite 414, 29.5 cc
-
78230501046 Hex. Flanged Screw M10 x 110 (Scotch Grip)Hex. Flanged Screw M10 x 110 (Scotch Grip)
-
79293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
80234071410 Flat Washer 14 mmFlat Washer 14 mm
