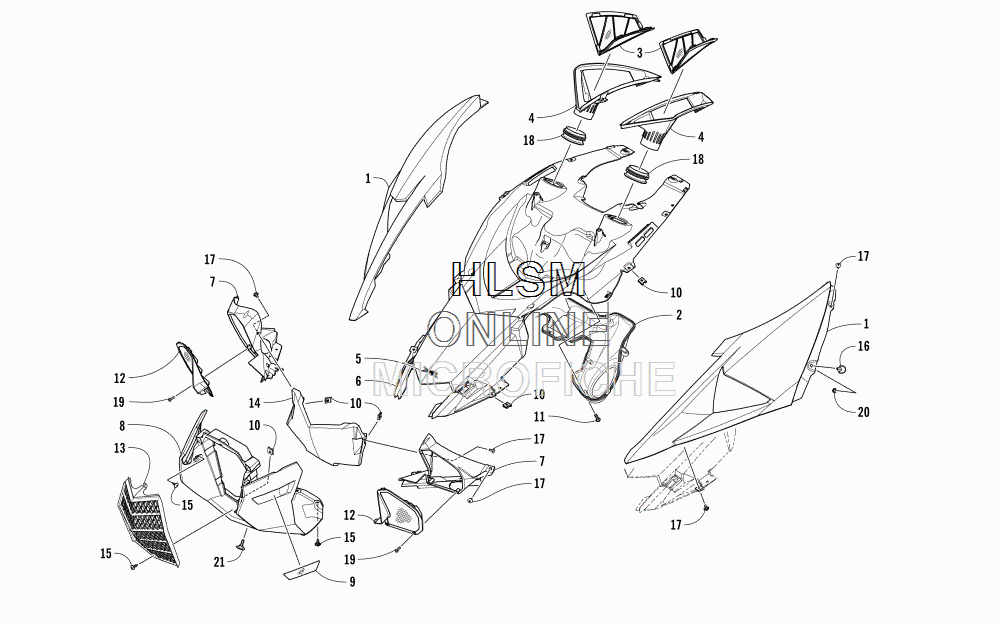

HOOD ASSEMBLY для Arctic Cat ZR 9000 THUNDERCAT 137 BLACK EARLY BUILD - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    5718-674 HOOD W/DECALS - RIGHT - BLACK (SEE DECALS PAGE FOR DECALS)
    HOOD W/DECALS - RIGHT - BLACK (SEE DECALS PAGE FOR DECALS)
  • 1
    5718-675 HOOD W/DECALS - LEFT - BLACK (SEE DECALS PAGE FOR DECALS)
    HOOD W/DECALS - LEFT - BLACK (SEE DECALS PAGE FOR DECALS)
  • 1
    7606-138 HOOD W/O DECALS - RIGHT - BLACK
    HOOD W/O DECALS - RIGHT - BLACK
  • 1
    7606-139 HOOD W/O DECALS - LEFT - BLACK
    HOOD W/O DECALS - LEFT - BLACK
  • 2
    2670-500 PLENUM, INTAKE - LOWER
    PLENUM, INTAKE - LOWER
  • 3
    0608-758 SCREEN, INTAKE DUCT - RIGHT
    SCREEN, INTAKE DUCT - RIGHT
  • 3
    0608-759 SCREEN, INTAKE DUCT - LEFT
    SCREEN, INTAKE DUCT - LEFT
  • 4
    0608-748 DUCT, INTAKE - RIGHT
    DUCT, INTAKE - RIGHT
  • 4
    0608-749 DUCT, INTAKE - LEFT
    DUCT, INTAKE - LEFT
  • 5
    4411-479 DECAL, AIRCAT
    DECAL, AIRCAT
  • 6
    7606-095 PLENUM, INTAKE - UPPER
    PLENUM, INTAKE - UPPER
  • 7
    7606-054 VENT - RIGHT
    VENT - RIGHT
  • 7
    7606-055 VENT - LEFT
    VENT - LEFT
  • 8
    7606-196 FASCIA, FRONT W/O DECAL - BLACK
    FASCIA, FRONT W/O DECAL - BLACK
  • 9
    2621-915 DECAL, REFLECTOR - AMBER
    DECAL, REFLECTOR - AMBER
  • 10
    1623-939 NUT, U
    NUT, U
  • 11
    1623-933 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 12
    7606-056 BEZEL, VENT - RIGHT
    BEZEL, VENT - RIGHT
  • 12
    7606-057 BEZEL, VENT - LEFT
    BEZEL, VENT - LEFT
  • 13
    7606-117 GRILLE
    GRILLE
  • 14
    7606-097 CLOSE-OFF
    CLOSE-OFF
  • 15
    2623-166 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 16
    2623-003 PIN, RETAINING
    PIN, RETAINING
  • 17
    2623-164 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 18
    6606-386 SEAL
    SEAL
  • 19
    2623-211 SCREW
    SCREW
  • 20
    2623-004 NUT, PUSH
    NUT, PUSH
  • 21
    1423-060 SCREW, SHOULDER
    SCREW, SHOULDER
