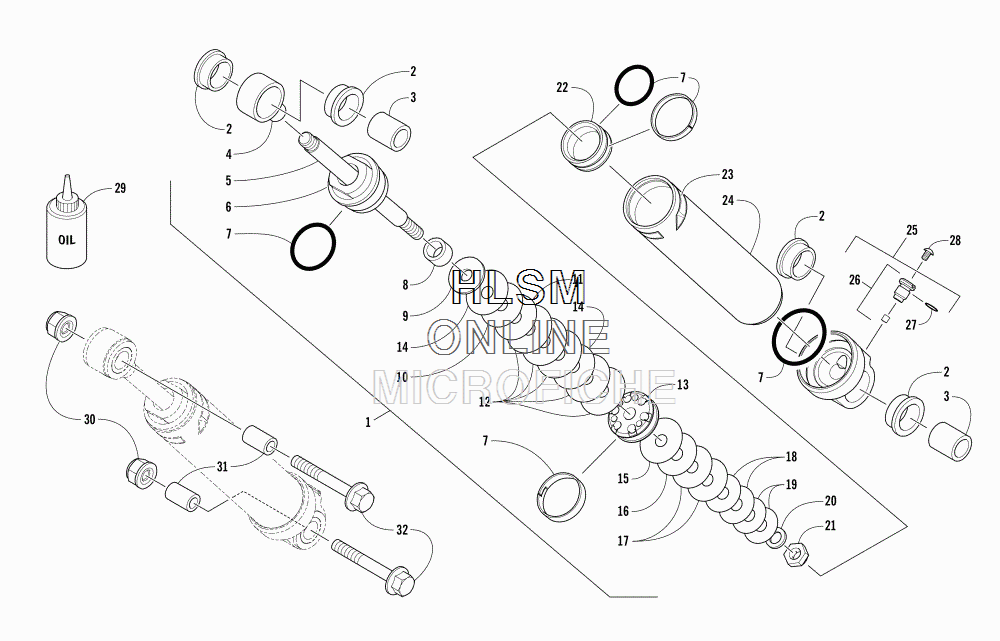

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat ZR 9000 SNO PRO 129 GREEN INTERNATIONAL - 2018 года выпуска`
-
№АртикулНазвание
-
12704-685 SHOCK, REAR ARM (INC. 2-28)SHOCK, REAR ARM (INC. 2-28)
-
23604-738 ...BUSHING...BUSHING
-
33604-737 ...SLEEVE...SLEEVE
-
43604-796 ...EYELET, SHOCK...EYELET, SHOCK
-
53604-776 ...ROD, SHOCK...ROD, SHOCK
-
64604-127 ...BEARING, ENDCAP - LONG W/BLEED - ASSEMBLY - 2"...BEARING, ENDCAP - LONG W/BLEED - ASSEMBLY - 2"
-
74604-194 ...KIT, SEAL/REBUILD...KIT, SEAL/REBUILD
-
83604-957 ...SPACER, SHAFT...SPACER, SHAFT
-
93604-874 ...WASHER, TOP OUT...WASHER, TOP OUT
-
103603-185 ...VALVE, 1.300 X 0.010 IN....VALVE, 1.300 X 0.010 IN.
-
113604-873 ...VALVE, 1.425 X 0.010 IN....VALVE, 1.425 X 0.010 IN.
-
123604-871 ...VALVE, 1.600 X 0.010 IN....VALVE, 1.600 X 0.010 IN.
-
133604-870 ...PISTON, 0.055 IN. - ORIFICE...PISTON, 0.055 IN. - ORIFICE
-
143603-125 ...VALVE, 1.000 X 0.010 IN....VALVE, 1.000 X 0.010 IN.
-
153604-886 ...VALVE, 1.425 X 0.012 IN....VALVE, 1.425 X 0.012 IN.
-
163603-146 ...VALVE, 1.100 X 0.012 IN....VALVE, 1.100 X 0.012 IN.
-
173603-126 ...VALVE, 1.000 X 0.012 IN....VALVE, 1.000 X 0.012 IN.
-
183603-117 ...VALVE, 0.900 X 0.016 IN....VALVE, 0.900 X 0.016 IN.
-
193603-107 ...VALVE, 0.800 X 0.016 IN....VALVE, 0.800 X 0.016 IN.
-
203604-775 ...WASHER, BACKUP...WASHER, BACKUP
-
213604-739 ...NUT...NUT
-
223604-876 ...PISTON, FLOATING...PISTON, FLOATING
-
231621-728 ...DECAL, WARNING - HIGH PRESSURE...DECAL, WARNING - HIGH PRESSURE
-
243604-880 ...BODY, SHOCK...BODY, SHOCK
-
253604-894 ...END CAP, SHOCK - ASSEMBLY (INC. 26-27)...END CAP, SHOCK - ASSEMBLY (INC. 26-27)
-
263604-751 ......VALVE, PRESSURE (INC. 27)......VALVE, PRESSURE (INC. 27)
-
273604-733 .........O-RING, VALVE.........O-RING, VALVE
-
283604-750 ...SCREW, MACHINE...SCREW, MACHINE
-
295639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
-
302623-202 NUT, LOCK W/WASHERNUT, LOCK W/WASHER
-
313604-109 SLEEVESLEEVE
-
328408-045 SCREW, CAPSCREW, CAP
