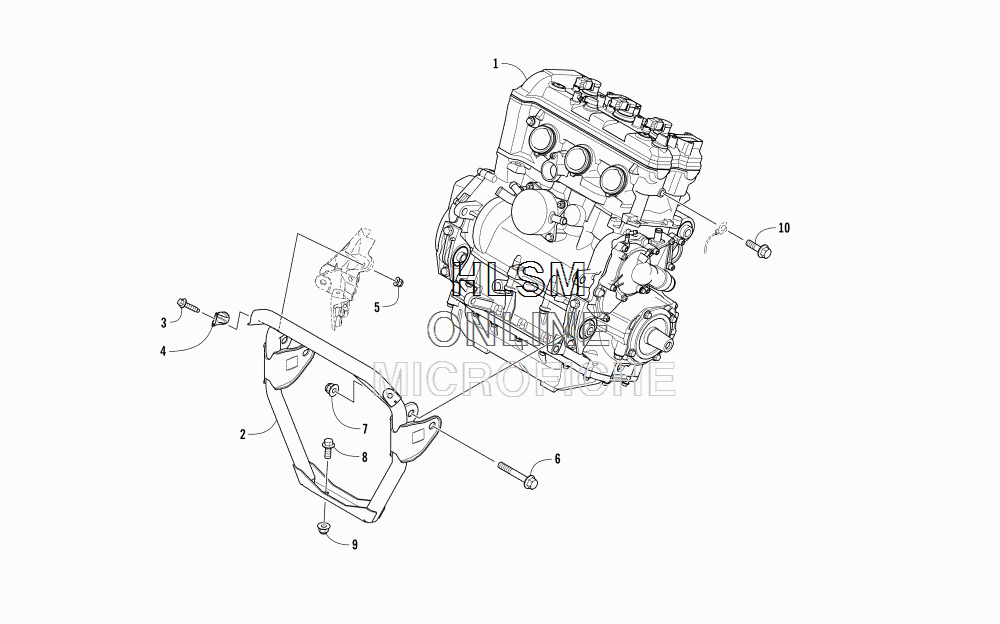

ENGINE AND RELATED PARTS для Arctic Cat ZR 9000 SNO PRO 129 GREEN INTERNATIONAL - 2018 года выпуска`
-
№АртикулНазвание
-
10662-615 ENGINE, 998TENGINE, 998T
-
20708-644 BRACKET, ENGINE MOUNTING - FRONTBRACKET, ENGINE MOUNTING - FRONT
-
38408-830 SCREW, CAPSCREW, CAP
-
41607-002 INSERTINSERT
-
58427-802 NUTNUT
-
68415-275 SCREW, CAPSCREW, CAP
-
78427-202 NUT, LOCKNUT, LOCK
-
88408-025 SCREW, CAPSCREW, CAP
-
98427-002 NUT, LOCKNUT, LOCK
-
100923-018 SCREW, CAPSCREW, CAP
Все узлы модели:
- A-ARM AND SWAY BAR ASSEMBLY
- AIR INTAKE ASSEMBLY
- BATTERY AND TRAY ASSEMBLY
- BELT GUARD ASSEMBLY
- BUMPERS AND STORAGE
- CAMSHAFT- CHAIN- AND VALVE ASSEMBLY
- CHAIN CASE ASSEMBLY
- CONSOLE ASSEMBLY
- COOLING ASSEMBLY
- CRANKCASE ASSEMBLY
- CYLINDER HEAD ASSEMBLY
- DECALS
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVEN CLUTCH
- • ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FRONT FRAME ASSEMBLY
- FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
- FUEL PUMP ASSEMBLY
- GAS TANK ASSEMBLY
- HANDLEBAR AND CONTROLS
- HEADLIGHT AND WIRING ASSEMBLIES
- HOOD ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- MAGNETO AND COVER ASSEMBLY
- OIL PAN ASSEMBLY
- OIL PUMP ASSEMBLY
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT ASSEMBLY
- REAR SUSPENSION FRONT ARM ASSEMBLY
- REAR SUSPENSION FRONT ARM SHOCK ABSORBER
- REAR SUSPENSION REAR ARM ASSEMBLY
- REAR SUSPENSION REAR ARM SHOCK ABSORBER
- SEAT ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SKID PLATE AND SIDE PANEL ASSEMBLY
- SLIDE RAIL AND TRACK ASSEMBLY
- STARTER MOTOR ASSEMBLY
- STEERING POST ASSEMBLY
- STEERING SUPPORT ASSEMBLY
- THROTTLE BODY ASSEMBLY
- TIE ROD ASSEMBLY
- TUNNEL AND SNOWFLAP ASSEMBLY
- TURBOCHARGER ASSEMBLY
- WATER PUMP ASSEMBLY
- WINDSHIELD AND INSTRUMENTS ASSEMBLIES
