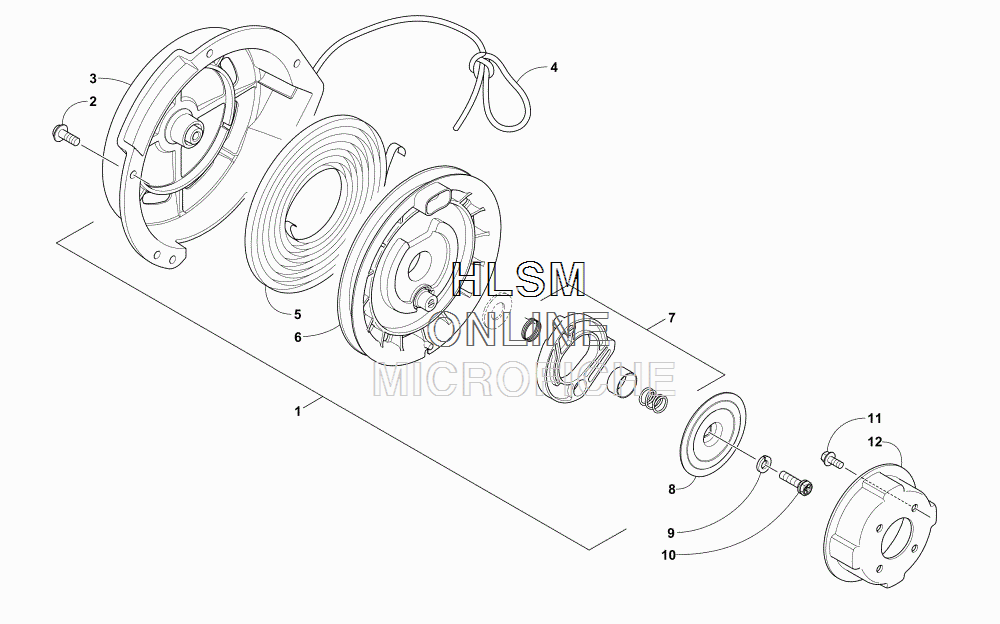

RECOIL STARTER для Arctic Cat ZR 8000 SNO PRO ES 129 GREEN EARLY RELEASE - 2018 года выпуска
-
№АртикулНазвание
-
10920-004 STARTER ASSEMBLY (INC. 3 AND 5-8)STARTER ASSEMBLY (INC. 3 AND 5-8)
-
20923-024 SCREW, CAPSCREW, CAP
-
30920-005 CASE, RECOILCASE, RECOIL
-
43006-889 ROPE, STARTER (6 MM DIA.) (203 CM)ROPE, STARTER (6 MM DIA.) (203 CM)
-
50920-015 SPRINGSPRING
-
60920-007 ROLLER, STARTERROLLER, STARTER
-
70920-008 RATCHET SETRATCHET SET
-
80920-017 PLATE, FRICTIONPLATE, FRICTION
-
98051-247 WASHER, LOCKWASHER, LOCK
-
108408-826 SCREW, CAPSCREW, CAP
-
110923-018 SCREW, CAPSCREW, CAP
-
120920-020 PULLEY, STARTERPULLEY, STARTER
