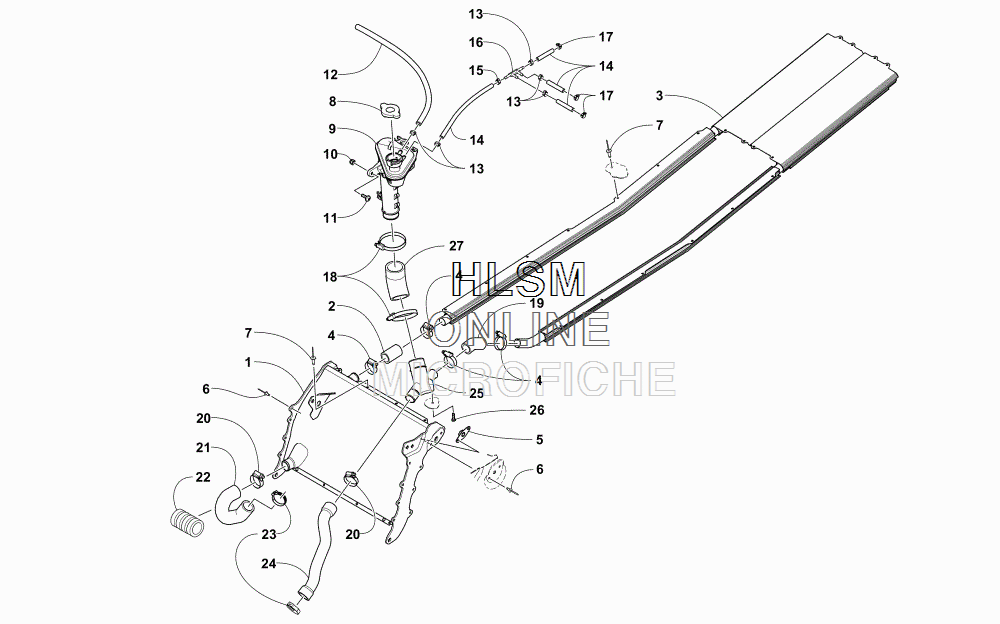

COOLING ASSEMBLY для Arctic Cat ZR 8000 SNO PRO ES 129 GREEN EARLY RELEASE - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    0713-196 EXCHANGER, HEAT
    EXCHANGER, HEAT
  • 2
    0613-214 HOSE, COOLANT
    HOSE, COOLANT
  • 3
    0713-162 EXCHANGER, HEAT - REAR
    EXCHANGER, HEAT - REAR
  • 4
    2623-038 CLAMP, HOSE
    CLAMP, HOSE
  • 5
    0608-631 PLATE, RETAINING
    PLATE, RETAINING
  • 6
    8060-708 RIVET
    RIVET
  • 7
    8060-706 RIVET
    RIVET
  • 8
    0413-255 CAP, RADIATOR
    CAP, RADIATOR
  • 9
    0613-135 TANK, COOLANT
    TANK, COOLANT
  • 10
    8422-602 NUT
    NUT
  • 11
    8476-625 SCREW, CAP
    SCREW, CAP
  • 12
    0610-692 HOSE - GREEN - 25 FT
    HOSE - GREEN - 25 FT
  • 12
    0610-693 HOSE - GREEN - 100 FT
    HOSE - GREEN - 100 FT
  • 13
    1623-655 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    0610-538 HOSE - 25 FT
    HOSE - 25 FT
  • 15
    1623-619 CLAMP, HOSE
    CLAMP, HOSE
  • 16
    0610-717 FITTING, DOUBLE-T
    FITTING, DOUBLE-T
  • 17
    0623-063 CLAMP, HOSE
    CLAMP, HOSE
  • 18
    0423-317 CLAMP
    CLAMP
  • 19
    0613-231 HOSE, COOLANT - FILLER NECK/HEAT EXCHANGER
    HOSE, COOLANT - FILLER NECK/HEAT EXCHANGER
  • 20
    2623-088 CLAMP, HOSE
    CLAMP, HOSE
  • 21
    0613-230 HOSE, COOLANT - ENGINE/HEAT EXCHANGER
    HOSE, COOLANT - ENGINE/HEAT EXCHANGER
  • 22
    0619-619 CONDUIT, FLEXIBLE - 4 IN.
    CONDUIT, FLEXIBLE - 4 IN.
  • 23
    1623-656 CLAMP, HOSE
    CLAMP, HOSE
  • 24
    0613-234 HOSE, COOLANT - TANK/ENGINE
    HOSE, COOLANT - TANK/ENGINE
  • 25
    0613-228 FITTING
    FITTING
  • 26
    1623-251 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 27
    0613-229 HOSE, COOLANT - TANK/HEAT EXCHANGER
    HOSE, COOLANT - TANK/HEAT EXCHANGER
