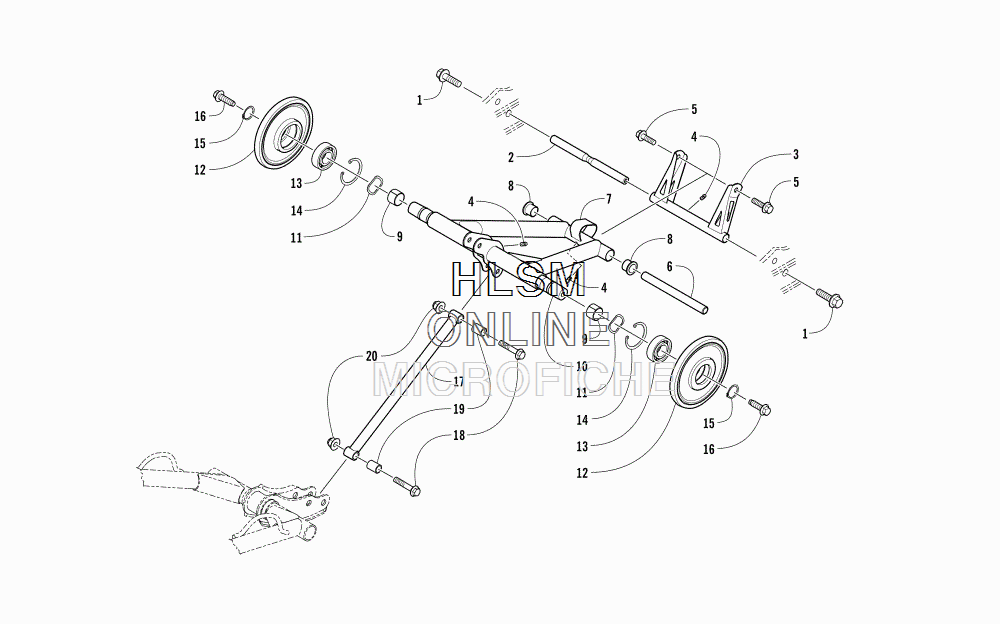

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat M 8000 SNO PRO ES 162 ORANGE - 2018 года выпуска`
-
№АртикулНазвание
-
18408-826 SCREW, CAPSCREW, CAP
-
23604-857 AXLEAXLE
-
32704-422 ARM, REAR - BLACK (INC. ONE NO. 4)ARM, REAR - BLACK (INC. ONE NO. 4)
-
41623-010 ...FITTING, GREASE...FITTING, GREASE
-
58413-831 SCREW, CAPSCREW, CAP
-
63604-855 AXLEAXLE
-
72704-782 ARM, IDLER - BLACK (INC. TWO NO. 4 AND 8-9)ARM, IDLER - BLACK (INC. TWO NO. 4 AND 8-9)
-
83604-028 ...BUSHING, FLARED...BUSHING, FLARED
-
92604-852 ...BEARING...BEARING
-
103604-854 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
111623-692 WASHER, WAVEWASHER, WAVE
-
122604-699 WHEEL, IDLER (INC. 13-14)WHEEL, IDLER (INC. 13-14)
-
130107-598 ...BEARING...BEARING
-
140123-798 ...RING, RETAINING...RING, RETAINING
-
151623-690 RING, RETAININGRING, RETAINING
-
162623-002 SCREW, CAPSCREW, CAP
-
173704-192 LINK, REAR SHOCK - BLACKLINK, REAR SHOCK - BLACK
-
188413-845 SCREW, CAPSCREW, CAP
-
193604-846 SLEEVESLEEVE
-
208437-804 NUT, LOCKNUT, LOCK
