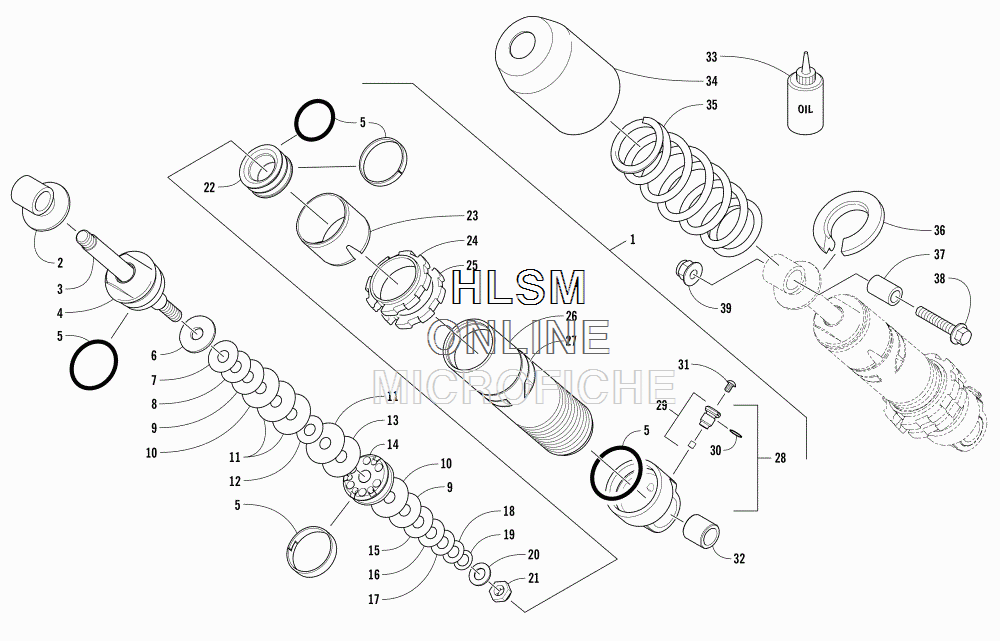

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat M 8000 SNO PRO ES 162 ORANGE - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    2704-786 SHOCK ABSORBER (INC. 2-32)
    SHOCK ABSORBER (INC. 2-32)
  • 2
    3604-797 ...EYELET, SHOCK
    ...EYELET, SHOCK
  • 3
    3604-831 ...ROD, SHOCK
    ...ROD, SHOCK
  • 4
    4604-125 ...BEARING, ENDCAP - ASSEMBLY
    ...BEARING, ENDCAP - ASSEMBLY
  • 5
    4604-121 ...KIT, SEAL/REBUILD
    ...KIT, SEAL/REBUILD
  • 6
    3604-789 ...WASHER, TOP OUT
    ...WASHER, TOP OUT
  • 7
    3603-122 ...VALVE, 1.000 X 0.006 IN.
    ...VALVE, 1.000 X 0.006 IN.
  • 8
    3603-124 ...VALVE, 1.000 X 0.008 IN.
    ...VALVE, 1.000 X 0.008 IN.
  • 9
    3603-145 ...VALVE, 1.100 X 0.010 IN.
    ...VALVE, 1.100 X 0.010 IN.
  • 10
    3603-175 ...VALVE, 1.250 X 0.010 IN.
    ...VALVE, 1.250 X 0.010 IN.
  • 11
    3603-184 ...VALVE, 1.300 X 0.008 IN.
    ...VALVE, 1.300 X 0.008 IN.
  • 12
    3603-114 ...VALVE, 0.900 X 0.008 IN.
    ...VALVE, 0.900 X 0.008 IN.
  • 13
    3603-182 ...VALVE, 1.300 X 0.006 IN.
    ...VALVE, 1.300 X 0.006 IN.
  • 14
    2603-998 ...PISTON, 0.063 IN. - ORIFICE
    ...PISTON, 0.063 IN. - ORIFICE
  • 15
    3603-125 ...VALVE, 1.000 X 0.010 IN.
    ...VALVE, 1.000 X 0.010 IN.
  • 16
    3603-115 ...VALVE, 0.900 X 0.010 IN.
    ...VALVE, 0.900 X 0.010 IN.
  • 17
    3603-105 ...VALVE, 0.800 X 0.010 IN.
    ...VALVE, 0.800 X 0.010 IN.
  • 18
    3603-092 ...VALVE, 0.700 X 0.006 IN.
    ...VALVE, 0.700 X 0.006 IN.
  • 19
    2603-015 ...VALVE, 0.550 X 0.020 IN.
    ...VALVE, 0.550 X 0.020 IN.
  • 20
    3604-775 ...WASHER, BACKUP
    ...WASHER, BACKUP
  • 21
    3604-739 ...NUT
    ...NUT
  • 22
    3604-772 ...PISTON, FLOATING
    ...PISTON, FLOATING
  • 23
    3604-773 ...SLEEVE, WEAR
    ...SLEEVE, WEAR
  • 24
    2603-014 ...NUT, ADJUSTER
    ...NUT, ADJUSTER
  • 25
    3604-779 ...COLLAR, LOCKING - ADJUSTER NUT
    ...COLLAR, LOCKING - ADJUSTER NUT
  • 26
    3604-830 ...BODY, SHOCK
    ...BODY, SHOCK
  • 27
    1621-728 ...DECAL, WARNING - HIGH PRESSURE
    ...DECAL, WARNING - HIGH PRESSURE
  • 28
    2704-257 ...END CAP, SHOCK - ASSEMBLY (INC. 29-30)
    ...END CAP, SHOCK - ASSEMBLY (INC. 29-30)
  • 29
    3604-751 ......VALVE, PRESSURE (INC. 30)
    ......VALVE, PRESSURE (INC. 30)
  • 30
    3604-733 .........O-RING, VALVE
    .........O-RING, VALVE
  • 31
    3604-750 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 32
    3604-906 ...BEARING
    ...BEARING
  • 33
    5639-530 OIL, SHOCK - 1 QT
    OIL, SHOCK - 1 QT
  • 34
    0604-790 COVER, SHOCK
    COVER, SHOCK
  • 35
    1704-236 SPRING, COMPRESSION - BLACK
    SPRING, COMPRESSION - BLACK
  • 36
    3604-200 RETAINER, SPRING
    RETAINER, SPRING
  • 37
    3604-845 AXLE
    AXLE
  • 38
    8413-845 SCREW, CAP
    SCREW, CAP
  • 39
    8437-804 NUT, LOCK
    NUT, LOCK
