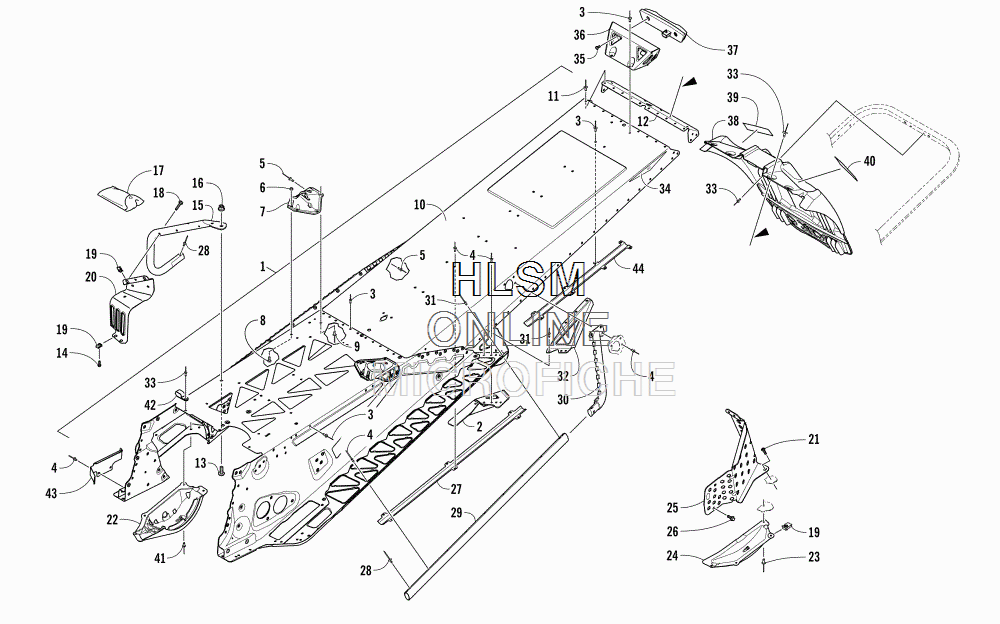

TUNNEL AND SNOWFLAP ASSEMBLY для Arctic Cat M 8000 MOUNTAIN CAT 162 BLACK EARLY BUILD - 2018 года выпуска

  • №
    Артикул
    Название
  • –
    3707-049 COMPLETE CHASSIS ASSEMBLY - GREEN
    COMPLETE CHASSIS ASSEMBLY - GREEN
  • 1
    3707-203 TUNNEL ASSEMBLY - GREEN (INC. 2-12 AND 29-32)
    TUNNEL ASSEMBLY - GREEN (INC. 2-12 AND 29-32)
  • 2
    3707-176 ...BRACKET, MOUNTING - SUSPENSION - RIGHT - GREEN
    ...BRACKET, MOUNTING - SUSPENSION - RIGHT - GREEN
  • 2
    3707-177 ...BRACKET, MOUNTING - SUSPENSION - LEFT - GREEN
    ...BRACKET, MOUNTING - SUSPENSION - LEFT - GREEN
  • 3
    8060-682 ...RIVET
    ...RIVET
  • 4
    8060-686 ...RIVET
    ...RIVET
  • 5
    1623-206 ...RIVET
    ...RIVET
  • 6
    8422-482 ...NUT, LOCK
    ...NUT, LOCK
  • 7
    3707-174 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - GREEN
    ...BRACKET, MOUNTING - REAR SPAR - RIGHT - GREEN
  • 7
    3707-175 ...BRACKET, MOUNTING - REAR SPAR - LEFT - GREEN
    ...BRACKET, MOUNTING - REAR SPAR - LEFT - GREEN
  • 8
    8476-512 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 9
    1623-257 ...RIVET
    ...RIVET
  • 10
    3707-201 ...TUNNEL, REAR - GREEN
    ...TUNNEL, REAR - GREEN
  • 11
    8060-502 ...RIVET
    ...RIVET
  • 12
    3707-173 ...END CAP, TUNNEL - GREEN
    ...END CAP, TUNNEL - GREEN
  • 13
    8476-820 SCREW, MACHINE
    SCREW, MACHINE
  • 14
    8470-516 SCREW, MACHINE
    SCREW, MACHINE
  • 15
    3707-072 SUPPORT, FOOTREST - RIGHT - GREEN
    SUPPORT, FOOTREST - RIGHT - GREEN
  • 15
    3707-073 SUPPORT, FOOTREST - LEFT - GREEN
    SUPPORT, FOOTREST - LEFT - GREEN
  • 16
    8427-802 NUT
    NUT
  • 17
    0744-090 KIT, TOOL
    KIT, TOOL
  • 18
    8468-535 SCREW, MACHINE
    SCREW, MACHINE
  • 19
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 20
    3707-024 FOOTREST - RIGHT - GREEN
    FOOTREST - RIGHT - GREEN
  • 20
    3707-025 FOOTREST - LEFT - GREEN
    FOOTREST - LEFT - GREEN
  • 21
    8470-520 SCREW, MACHINE
    SCREW, MACHINE
  • 22
    1607-646 PROTECTOR, CHAIN CASE
    PROTECTOR, CHAIN CASE
  • 23
    8061-682 RIVET
    RIVET
  • 24
    1607-645 PROTECTOR, BRAKE DISC
    PROTECTOR, BRAKE DISC
  • 25
    3707-236 SHIELD, BRAKE DISC - GREEN
    SHIELD, BRAKE DISC - GREEN
  • 26
    8408-613 SCREW, CAP
    SCREW, CAP
  • 27
    0630-307 PROTECTOR, TAILLIGHT HARNESS
    PROTECTOR, TAILLIGHT HARNESS
  • 28
    1623-130 RIVET
    RIVET
  • 29
    3707-179 ROLL, TUNNEL - GREEN
    ROLL, TUNNEL - GREEN
  • 30
    3707-182 GUSSET, TUNNEL ROLL - RIGHT - GREEN
    GUSSET, TUNNEL ROLL - RIGHT - GREEN
  • 30
    3707-183 GUSSET, TUNNEL ROLL - LEFT - GREEN
    GUSSET, TUNNEL ROLL - LEFT - GREEN
  • 31
    1623-241 RIVET
    RIVET
  • 32
    3707-180 GUSSET, RUNNING BOARD - RIGHT - GREEN
    GUSSET, RUNNING BOARD - RIGHT - GREEN
  • 32
    3707-181 GUSSET, RUNNING BOARD - LEFT - GREEN
    GUSSET, RUNNING BOARD - LEFT - GREEN
  • 33
    8061-706 RIVET
    RIVET
  • 34
    0621-990 DECAL, REFLECTOR - RED
    DECAL, REFLECTOR - RED
  • 35
    8470-510 SCREW, MACHINE
    SCREW, MACHINE
  • 36
    0730-281 BRACKET, MOUNTING - TAILLIGHT - GREEN
    BRACKET, MOUNTING - TAILLIGHT - GREEN
  • 37
    0609-898 TAILLIGHT, LED
    TAILLIGHT, LED
  • 38
    6606-394 SNOWFLAP
    SNOWFLAP
  • 39
    5611-852 DECAL, WARNING - TOWING (FRENCH)
    DECAL, WARNING - TOWING (FRENCH)
  • 40
    5611-853 DECAL, WARNING - TOWING (ENGLISH)
    DECAL, WARNING - TOWING (ENGLISH)
  • 41
    8061-708 RIVET
    RIVET
  • 42
    1623-762 CLAMP, ROUTING
    CLAMP, ROUTING
  • 43
    0608-705 BRACKET, ROUTING - OIL LINE
    BRACKET, ROUTING - OIL LINE
  • 44
    0630-280 PROTECTOR, HARNESS - TAILLIGHT
    PROTECTOR, HARNESS - TAILLIGHT
