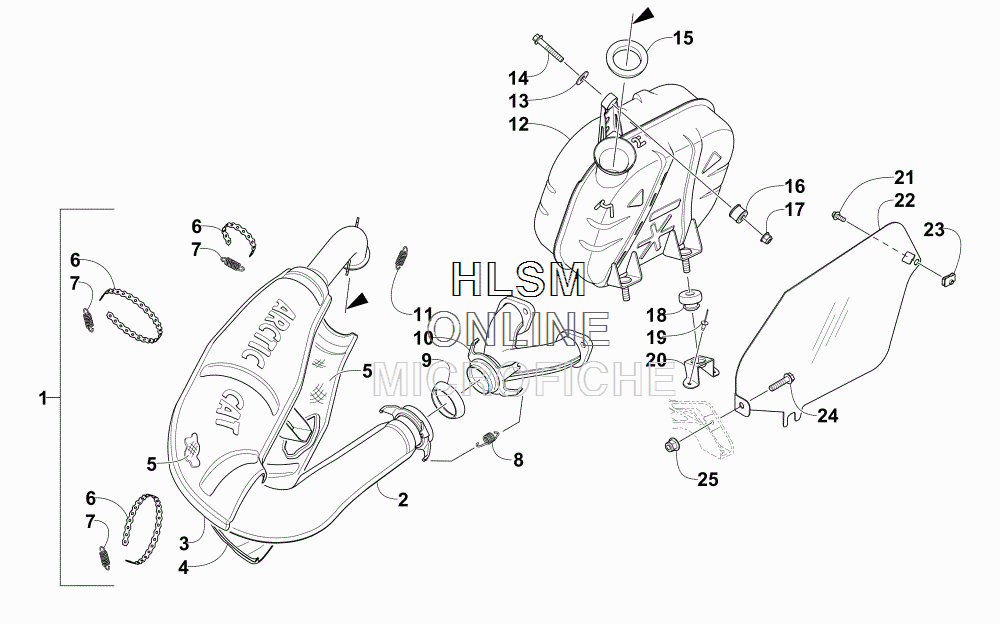

EXHAUST ASSEMBLY для Arctic Cat LYNX 2000 BLACK - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1712-444 CHAMBER, EXPANSION - ASSEMBLY (INC. 2-7)
    CHAMBER, EXPANSION - ASSEMBLY (INC. 2-7)
  • 2
    1712-429 ...CHAMBER, EXPANSION
    ...CHAMBER, EXPANSION
  • 3
    2612-292 ...COVER, EXPANSION CHAMBER - UPPER
    ...COVER, EXPANSION CHAMBER - UPPER
  • 4
    2612-291 ...COVER, EXPANSION CHAMBER - LOWER
    ...COVER, EXPANSION CHAMBER - LOWER
  • 5
    2612-297 ...PACKING, EXPANSION CHAMBER
    ...PACKING, EXPANSION CHAMBER
  • 6
    0624-552 ...BAND, TIE - 5 FT
    ...BAND, TIE - 5 FT
  • 6
    0624-541 ...BAND, TIE - 25 FT
    ...BAND, TIE - 25 FT
  • 7
    1612-178 ...SPRING, EXHAUST
    ...SPRING, EXHAUST
  • 8
    2612-399 SPRING, EXTENSION
    SPRING, EXTENSION
  • 9
    0612-131 GASKET, EXHAUST - MANIFOLD
    GASKET, EXHAUST - MANIFOLD
  • 10
    1712-336 MANIFOLD, EXHAUST
    MANIFOLD, EXHAUST
  • 11
    0612-471 SPRING, EXTENSION
    SPRING, EXTENSION
  • 12
    1712-725 RESONATOR
    RESONATOR
  • 13
    8050-282 WASHER
    WASHER
  • 14
    8408-850 SCREW, CAP
    SCREW, CAP
  • 15
    1612-323 GASKET, EXHAUST PIPE
    GASKET, EXHAUST PIPE
  • 16
    0412-577 BUSHING
    BUSHING
  • 17
    8427-802 NUT
    NUT
  • 18
    1612-873 GROMMET
    GROMMET
  • 19
    8060-686 RIVET
    RIVET
  • 20
    2612-024 BRACKET, MOUNTING - RESONATOR
    BRACKET, MOUNTING - RESONATOR
  • 21
    8408-820 SCREW, CAP
    SCREW, CAP
  • 22
    2612-342 SHIELD, HEAT
    SHIELD, HEAT
  • 23
    1623-640 CLIP, U-NUT
    CLIP, U-NUT
  • 24
    8408-625 SCREW, CAP
    SCREW, CAP
  • 25
    8427-602 NUT, LOCK
    NUT, LOCK
