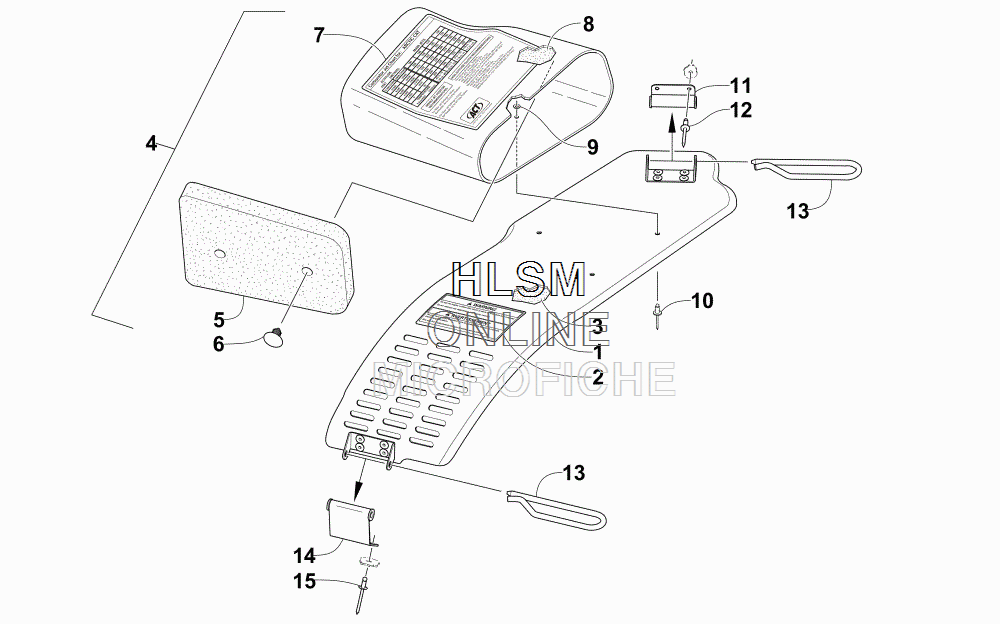

BELT GUARD ASSEMBLY для Arctic Cat LYNX 2000 BLACK - 2018 года выпуска`
-
№АртикулНазвание
-
11707-153 GUARD, BELTGUARD, BELT
-
21611-565 DECAL, WARNING - BELT GUARDDECAL, WARNING - BELT GUARD
-
30617-661 FOAM, BELT GUARDFOAM, BELT GUARD
-
40713-010 DUCT, AIR-OUT (INC. 5-6)DUCT, AIR-OUT (INC. 5-6)
-
50617-561 ...FOAM, AIR-OUT...FOAM, AIR-OUT
-
61623-809 ...CLIP, RETAINING...CLIP, RETAINING
-
72621-317 DECAL, CLUTCHING CHARTDECAL, CLUTCHING CHART
-
80617-662 FOAM, AIR-OUT - UPPERFOAM, AIR-OUT - UPPER
-
90123-802 WASHERWASHER
-
108060-688 RIVETRIVET
-
111707-169 HINGE, BELT GUARD - REARHINGE, BELT GUARD - REAR
-
121623-575 RIVETRIVET
-
131623-720 PIN, BELT GUARDPIN, BELT GUARD
-
141707-168 HINGE, BELT GUARD - FRONTHINGE, BELT GUARD - FRONT
-
158061-508 RIVETRIVET
