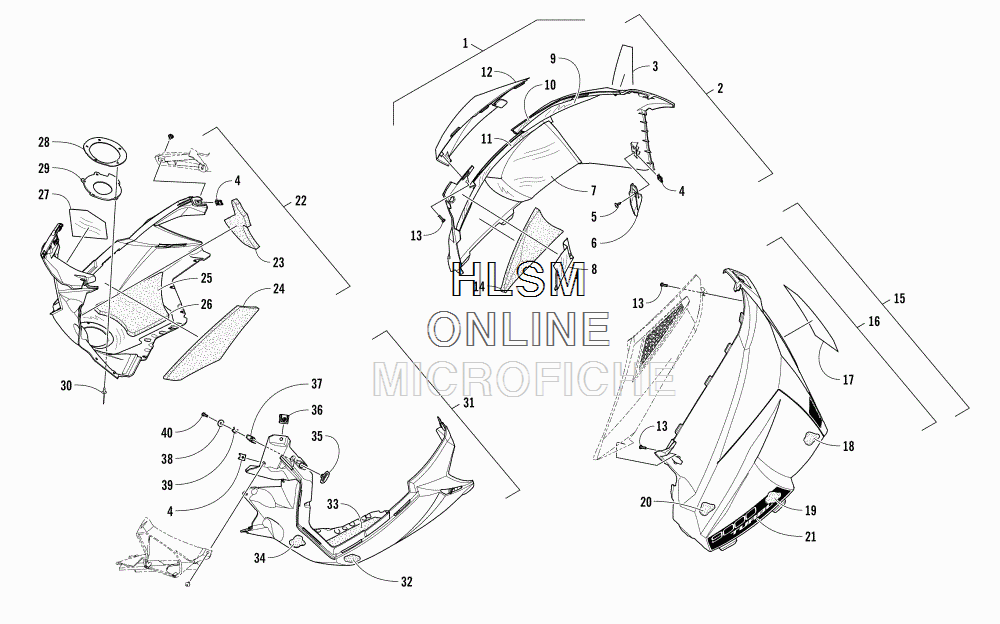

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat ZR 9000 THUNDERCAT 137 RED - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    5718-266 PANEL, SIDE W/DECALS - RIGHT - BLACK (INC. 2-14 AND 21)
    PANEL, SIDE W/DECALS - RIGHT - BLACK (INC. 2-14 AND 21)
  • 2
    5718-030 ...PANEL, SIDE W/WARNING DECAL - RIGHT - BLACK (INC. 3-14)
    ...PANEL, SIDE W/WARNING DECAL - RIGHT - BLACK (INC. 3-14)
  • 3
    3621-487 ......DECAL, WARNING - ENGLISH
    ......DECAL, WARNING - ENGLISH
  • 4
    1623-939 ......NUT, U
    ......NUT, U
  • 5
    2623-166 ......SCREW, SELF-TAPPING
    ......SCREW, SELF-TAPPING
  • 6
    7606-292 ......HOOK, MOUNTING - RIGHT
    ......HOOK, MOUNTING - RIGHT
  • 6
    7606-293 ......HOOK, MOUNTING - LEFT
    ......HOOK, MOUNTING - LEFT
  • 7
    7606-076 ......FOIL, PROTECTIVE - LOWER - REAR - RIGHT
    ......FOIL, PROTECTIVE - LOWER - REAR - RIGHT
  • 8
    7606-498 ......FOIL, PROTECTIVE - UPPER FRONT - RIGHT
    ......FOIL, PROTECTIVE - UPPER FRONT - RIGHT
  • 9
    7606-288 ......FOIL, PROTECTIVE - UPPER - RIGHT
    ......FOIL, PROTECTIVE - UPPER - RIGHT
  • 10
    7606-432 ......FOIL, PROTECTIVE - RIGHT
    ......FOIL, PROTECTIVE - RIGHT
  • 11
    7606-116 ......FOIL, PROTECTIVE - MIDDLE - RIGHT
    ......FOIL, PROTECTIVE - MIDDLE - RIGHT
  • 12
    7606-091 ......VENT, SIDE PANEL
    ......VENT, SIDE PANEL
  • 13
    2623-211 ......SCREW
    ......SCREW
  • 14
    0617-754 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
    ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
  • 15
    5718-267 PANEL, SIDE W/DECALS - LEFT - GREEN (INC. 4-6 AND 16-21)
    PANEL, SIDE W/DECALS - LEFT - GREEN (INC. 4-6 AND 16-21)
  • 16
    5718-031 ...PANEL, SIDE W/WARNING DECAL - LEFT - BLACK (INC. 4-6 AND 17-20)
    ...PANEL, SIDE W/WARNING DECAL - LEFT - BLACK (INC. 4-6 AND 17-20)
  • 17
    3621-486 ......DECAL, WARNING - FRENCH
    ......DECAL, WARNING - FRENCH
  • 18
    0617-757 ......FOAM, SIDE PANEL - LOWER REAR - LEFT
    ......FOAM, SIDE PANEL - LOWER REAR - LEFT
  • 19
    0617-755 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT
    ......FOAM, SIDE PANEL - LOWER FRONT - LEFT
  • 20
    0617-759 ......FOAM, SIDE PANEL - MIDDLE - LEFT
    ......FOAM, SIDE PANEL - MIDDLE - LEFT
  • 21
    3621-606 ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT
    ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT
  • 21
    3621-607 ...DECAL, SIDE PANEL - LOWER FRONT - LEFT
    ...DECAL, SIDE PANEL - LOWER FRONT - LEFT
  • 22
    4718-970 PLATE, SKID W/O DECALS - RIGHT - BLACK (INC. 4, 23-27, AND 35-40)
    PLATE, SKID W/O DECALS - RIGHT - BLACK (INC. 4, 23-27, AND 35-40)
  • 23
    0617-760 ...FOAM, SKID PLATE - FRONT - RIGHT
    ...FOAM, SKID PLATE - FRONT - RIGHT
  • 24
    0617-762 ...FOAM, SKID PLATE - MIDDLE - RIGHT
    ...FOAM, SKID PLATE - MIDDLE - RIGHT
  • 25
    0617-764 ...FOAM, SKID PLATE - LOWER - RIGHT
    ...FOAM, SKID PLATE - LOWER - RIGHT
  • 26
    3612-192 ...FOIL, SKID PLATE - RIGHT
    ...FOIL, SKID PLATE - RIGHT
  • 27
    3612-274 ...FOIL, SKID PLATE - RIGHT
    ...FOIL, SKID PLATE - RIGHT
  • 28
    3612-193 PLATE, EXHAUST OUTLET
    PLATE, EXHAUST OUTLET
  • 29
    3612-191 SEAL, EXHAUST OUTLET
    SEAL, EXHAUST OUTLET
  • 30
    8061-708 RIVET
    RIVET
  • 31
    4718-971 PLATE, SKID W/O DECALS - LEFT - BLACK (INC. 4, 32-34, AND 35-40)
    PLATE, SKID W/O DECALS - LEFT - BLACK (INC. 4, 32-34, AND 35-40)
  • 32
    0617-765 ...FOAM, SKID PLATE - LOWER - LEFT
    ...FOAM, SKID PLATE - LOWER - LEFT
  • 33
    0617-763 ...FOAM, SKID PLATE - MIDDLE - LEFT
    ...FOAM, SKID PLATE - MIDDLE - LEFT
  • 34
    0617-761 ...FOAM, SKID PLATE - FRONT - LEFT
    ...FOAM, SKID PLATE - FRONT - LEFT
  • 35
    7606-265 KNOB, HOLDDOWN
    KNOB, HOLDDOWN
  • 36
    2623-005 CLIP, RETAINING
    CLIP, RETAINING
  • 37
    7606-296 PLATE, BACKING
    PLATE, BACKING
  • 38
    2623-171 WASHER, FLAT
    WASHER, FLAT
  • 39
    2623-155 CLIP, RETAINING
    CLIP, RETAINING
  • 40
    1623-933 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
