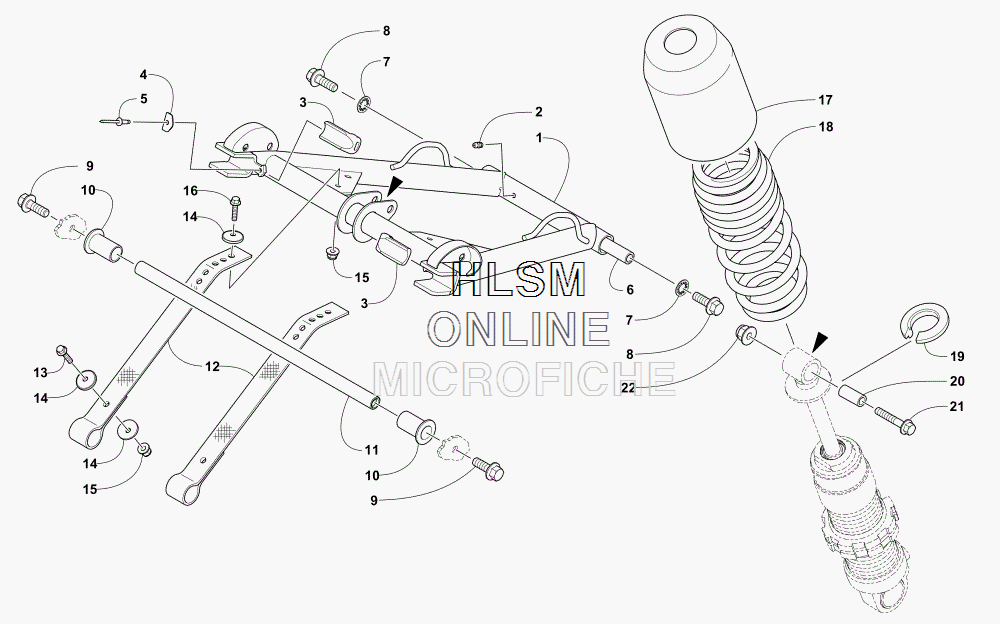

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat ZR 9000 THUNDERCAT 137 RED - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    3704-004 ARM, FRONT SUSPENSION - BLACK (INC. 2-5)
    ARM, FRONT SUSPENSION - BLACK (INC. 2-5)
  • 2
    1623-010 ...FITTING, GREASE
    ...FITTING, GREASE
  • 3
    3604-141 ...BUMPER, FRONT SLIDER
    ...BUMPER, FRONT SLIDER
  • 4
    3604-968 ...PLATE, RETAINING
    ...PLATE, RETAINING
  • 5
    8060-708 ...RIVET
    ...RIVET
  • 6
    4604-086 AXLE, INNER
    AXLE, INNER
  • 7
    1623-992 WASHER, INTERNAL TOOTH LOCK
    WASHER, INTERNAL TOOTH LOCK
  • 8
    8413-031 SCREW, CAP
    SCREW, CAP
  • 9
    8408-041 SCREW, CAP
    SCREW, CAP
  • 10
    3604-233 BUSHING, FLARED
    BUSHING, FLARED
  • 11
    3604-663 AXLE, FRONT SLIDER
    AXLE, FRONT SLIDER
  • 12
    3604-823 STRAP, LIMITER
    STRAP, LIMITER
  • 13
    8408-630 SCREW, CAP
    SCREW, CAP
  • 14
    8450-109 WASHER
    WASHER
  • 15
    8427-602 NUT, LOCK
    NUT, LOCK
  • 16
    8408-620 SCREW, CAP
    SCREW, CAP
  • 17
    0604-790 COVER, SHOCK
    COVER, SHOCK
  • 18
    1704-736 SPRING, COMPRESSION - BLACK
    SPRING, COMPRESSION - BLACK
  • 19
    3604-200 RETAINER, SPRING
    RETAINER, SPRING
  • 20
    3604-273 AXLE
    AXLE
  • 21
    8408-045 SCREW, CAP
    SCREW, CAP
  • 22
    2623-202 NUT, LOCK W/WASHER
    NUT, LOCK W/WASHER
