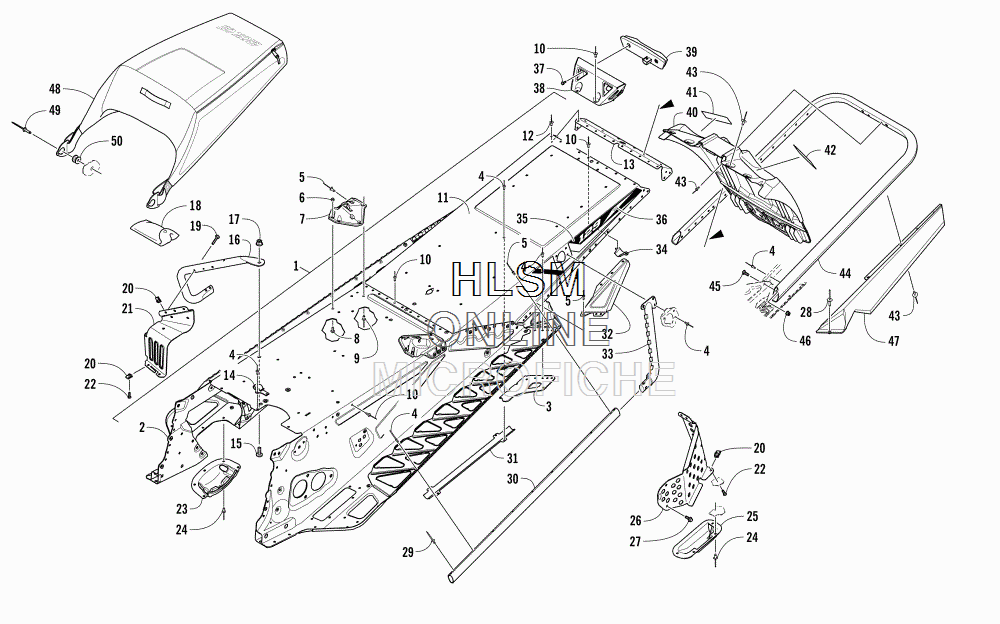

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat ZR 8000 LTD ES 129 BLACK - 2017 года выпуска`
-
№АртикулНазвание
-
-1707-825 COMPLETE CHASSIS ASSEMBLY - BLACKCOMPLETE CHASSIS ASSEMBLY - BLACK
-
11707-913 TUNNEL ASSEMBLY - BLACK (INC. 2-13)TUNNEL ASSEMBLY - BLACK (INC. 2-13)
-
21707-910 ...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)
-
31707-916 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
-
31707-917 ......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
-
48060-686 ......RIVET......RIVET
-
51623-241 ...RIVET...RIVET
-
68422-502 ...NUT...NUT
-
71707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
-
71707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-682 ...RIVET...RIVET
-
111707-835 ...TUNNEL, REAR - BLACK...TUNNEL, REAR - BLACK
-
128060-484 ...RIVET...RIVET
-
131707-725 ...END CAP, TUNNEL - BLACK...END CAP, TUNNEL - BLACK
-
140645-709 CLIP, ROUTINGCLIP, ROUTING
-
158476-820 SCREW, MACHINESCREW, MACHINE
-
161707-454 SUPPORT, FOOTREST - RIGHTSUPPORT, FOOTREST - RIGHT
-
161707-455 SUPPORT, FOOTREST - LEFTSUPPORT, FOOTREST - LEFT
-
178427-802 NUTNUT
-
180744-087 KIT, TOOLKIT, TOOL
-
198468-535 SCREW, MACHINESCREW, MACHINE
-
201623-637 CLIP, U-NUTCLIP, U-NUT
-
211707-556 FOOTREST - RIGHT - BLACKFOOTREST - RIGHT - BLACK
-
211707-557 FOOTREST - LEFT - BLACKFOOTREST - LEFT - BLACK
-
228470-516 SCREW, MACHINESCREW, MACHINE
-
231607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
248061-708 RIVETRIVET
-
250607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
262707-044 SHIELD, BRAKE DISC - BLACKSHIELD, BRAKE DISC - BLACK
-
278408-613 SCREW, CAPSCREW, CAP
-
288060-710 RIVETRIVET
-
291623-130 RIVETRIVET
-
301707-697 ROLL, TUNNEL - BLACKROLL, TUNNEL - BLACK
-
310630-308 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
321707-698 GUSSET, RUNNING BOARD - RIGHT - BLACKGUSSET, RUNNING BOARD - RIGHT - BLACK
-
321707-699 GUSSET, RUNNING BOARD - LEFT - BLACKGUSSET, RUNNING BOARD - LEFT - BLACK
-
331707-700 GUSSET, TUNNEL ROLL - RIGHT - BLACKGUSSET, TUNNEL ROLL - RIGHT - BLACK
-
331707-701 GUSSET, TUNNEL ROLL - LEFT - BLACKGUSSET, TUNNEL ROLL - LEFT - BLACK
-
340630-292 PROTECTOR, TAILLIGHT HARNESSPROTECTOR, TAILLIGHT HARNESS
-
353621-940 DECAL, TUNNEL - RIGHT - 129"DECAL, TUNNEL - RIGHT - 129"
-
353621-941 DECAL, TUNNEL - LEFT - 129"DECAL, TUNNEL - LEFT - 129"
-
360621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
378470-510 SCREW, MACHINESCREW, MACHINE
-
380730-227 BRACKET, MOUNTING - TAILLIGHT - BLACKBRACKET, MOUNTING - TAILLIGHT - BLACK
-
390609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
406606-394 SNOWFLAPSNOWFLAP
-
415611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
425611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
438061-706 RIVETRIVET
-
442707-959 BUMPER, REAR - GREENBUMPER, REAR - GREEN
-
458476-620 SCREW, MACHINESCREW, MACHINE
-
468427-602 NUT, LOCKNUT, LOCK
-
476606-870 FLARE, TUNNEL - RIGHTFLARE, TUNNEL - RIGHT
-
476606-871 FLARE, TUNNEL - LEFTFLARE, TUNNEL - LEFT
-
486606-600 SADDLEBAGSADDLEBAG
-
498060-630 RIVETRIVET
-
501623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
