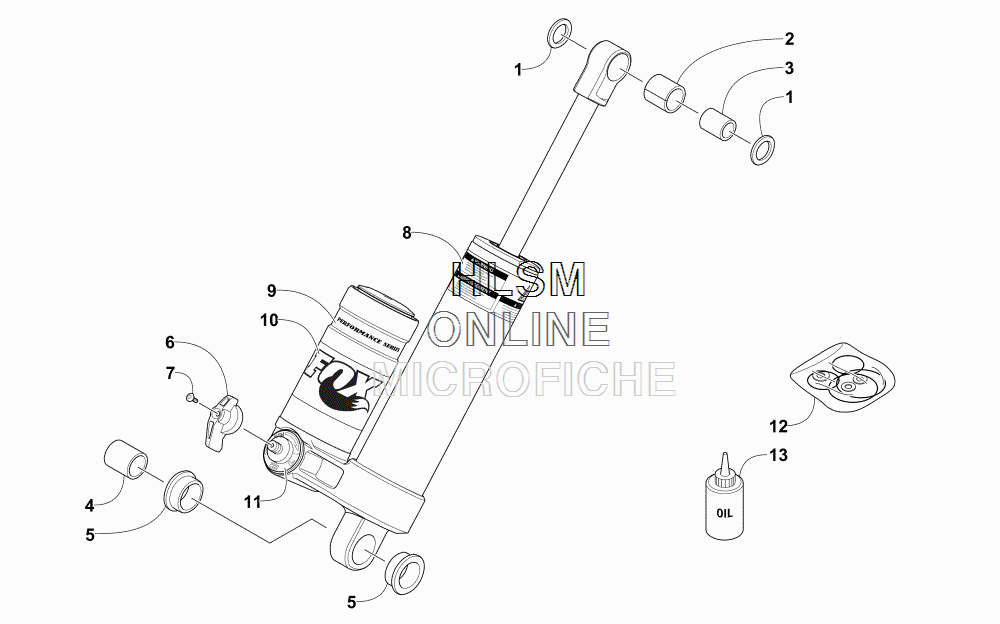

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat ZR 8000 LTD ES 129 BLACK - 2017 года выпуска`
-
№АртикулНазвание
-
-2704-819 SHOCK ABSORBERSHOCK ABSORBER
-
14604-215 SPACERSPACER
-
23603-399 BUSHING, EYELETBUSHING, EYELET
-
34604-216 SLEEVESLEEVE
-
42604-223 SLEEVESLEEVE
-
51604-222 BUSHINGBUSHING
-
63603-520 KNOB, DAMPING ADJUSTER - REBOUNDKNOB, DAMPING ADJUSTER - REBOUND
-
73603-377 SCREW, MACHINESCREW, MACHINE
-
83603-418 DECAL, WARNINGDECAL, WARNING
-
93603-365 DECAL, "PERFORMANCE SERIES"DECAL, "PERFORMANCE SERIES"
-
103603-378 DECAL, RESERVOIRDECAL, RESERVOIR
-
113603-523 DECAL, BASE VALUEDECAL, BASE VALUE
-
124604-160 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
135639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
