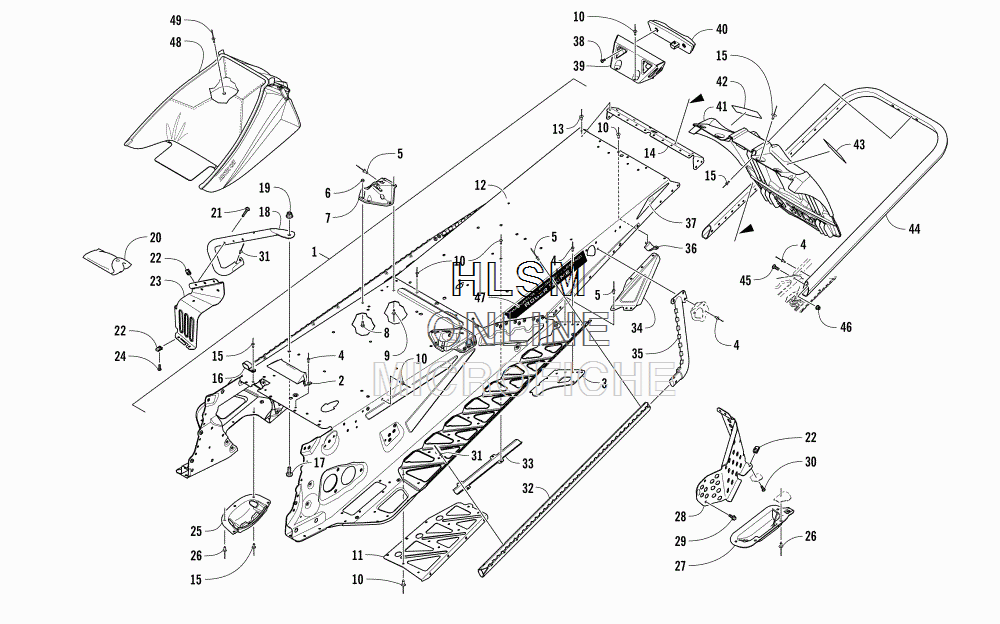

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat ZR 6000 RS LTD ES 129 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
-2707-191 COMPLETE CHASSIS ASSEMBLY - BLACKCOMPLETE CHASSIS ASSEMBLY - BLACK
-
13707-118 TUNNEL ASSEMBLY - BLACK (INC. 2-13)TUNNEL ASSEMBLY - BLACK (INC. 2-13)
-
20630-353 ...PROTECTOR, HARNESS...PROTECTOR, HARNESS
-
32707-644 ...BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK...BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
-
32707-645 ...BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK...BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
-
48060-706 ...RIVET...RIVET
-
51623-241 ...RIVET...RIVET
-
68422-502 ...NUT...NUT
-
71707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
-
71707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-702 ...RIVET...RIVET
-
112707-172 ...SUPPORT, RUNNING BOARD - RIGHT - BLACK...SUPPORT, RUNNING BOARD - RIGHT - BLACK
-
112707-173 ...SUPPORT, RUNNING BOARD - LEFT - BLACK...SUPPORT, RUNNING BOARD - LEFT - BLACK
-
122707-931 ...TUNNEL, REAR - BLACK...TUNNEL, REAR - BLACK
-
138060-504 ...RIVET...RIVET
-
141707-725 END CAP, TUNNEL - BLACKEND CAP, TUNNEL - BLACK
-
158061-706 RIVETRIVET
-
161623-762 CLAMP, ROUTINGCLAMP, ROUTING
-
178476-820 SCREW, MACHINESCREW, MACHINE
-
182707-684 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
182707-685 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
198427-802 NUTNUT
-
200744-087 KIT, TOOLKIT, TOOL
-
218468-535 SCREW, MACHINESCREW, MACHINE
-
221623-637 CLIP, U-NUTCLIP, U-NUT
-
231707-556 FOOTREST - RIGHT - BLACKFOOTREST - RIGHT - BLACK
-
231707-557 FOOTREST - LEFT - BLACKFOOTREST - LEFT - BLACK
-
248470-516 SCREW, MACHINESCREW, MACHINE
-
251607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
268061-708 RIVETRIVET
-
270607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
282707-044 SHIELD, BRAKE DISC - BLACKSHIELD, BRAKE DISC - BLACK
-
298408-613 SCREW, CAPSCREW, CAP
-
308470-520 SCREW, MACHINESCREW, MACHINE
-
311623-130 RIVETRIVET
-
322707-170 ROLL, TUNNEL - RIGHT - BLACKROLL, TUNNEL - RIGHT - BLACK
-
322707-171 ROLL, TUNNEL - LEFT - BLACKROLL, TUNNEL - LEFT - BLACK
-
330630-338 PROTECTOR, TAILLIGHT HARNESSPROTECTOR, TAILLIGHT HARNESS
-
341707-698 GUSSET, RUNNING BOARD - RIGHT - BLACKGUSSET, RUNNING BOARD - RIGHT - BLACK
-
341707-699 GUSSET, RUNNING BOARD - LEFT - BLACKGUSSET, RUNNING BOARD - LEFT - BLACK
-
351707-700 GUSSET, TUNNEL ROLL - RIGHT - BLACKGUSSET, TUNNEL ROLL - RIGHT - BLACK
-
351707-701 GUSSET, TUNNEL ROLL - LEFT - BLACKGUSSET, TUNNEL ROLL - LEFT - BLACK
-
360630-292 PROTECTOR, TAILLIGHT HARNESSPROTECTOR, TAILLIGHT HARNESS
-
370621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
388470-510 SCREW, MACHINESCREW, MACHINE
-
390730-227 BRACKET, MOUNTING - TAILLIGHT - BLACKBRACKET, MOUNTING - TAILLIGHT - BLACK
-
400609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
416606-394 SNOWFLAPSNOWFLAP
-
425611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
435611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
442707-959 BUMPER, REAR - GREENBUMPER, REAR - GREEN
-
458476-620 SCREW, MACHINESCREW, MACHINE
-
468427-602 NUT, LOCKNUT, LOCK
-
473621-914 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
473621-915 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
487606-530 BAG, TUNNELBAG, TUNNEL
-
498061-628 RIVETRIVET
