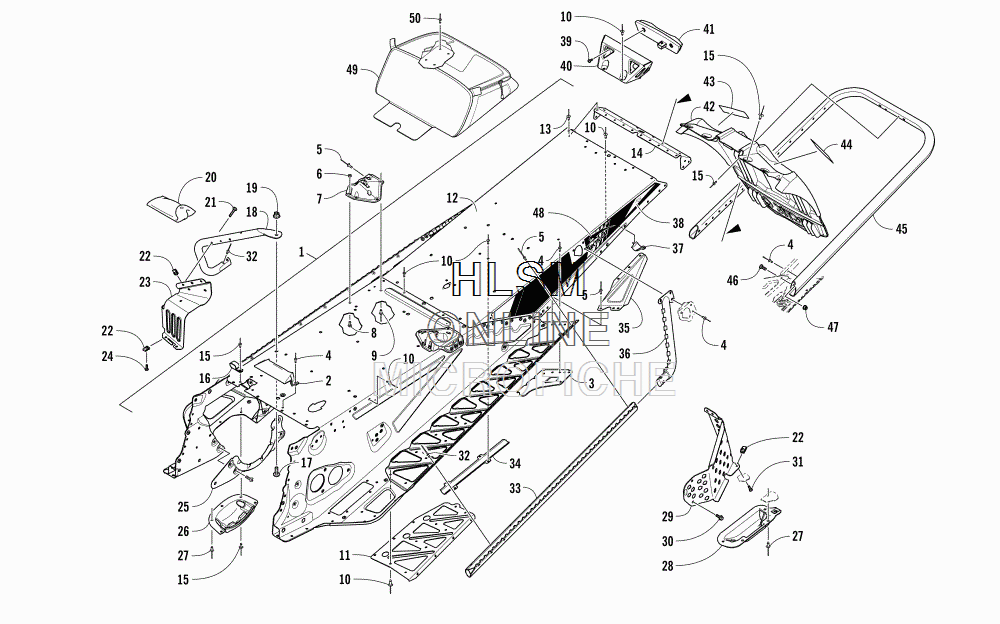

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat ZR 6000 R XC GREEN - 2017 года выпуска

  • №
    Артикул
    Название
  • -
    2707-191 COMPLETE CHASSIS ASSEMBLY - BLACK
    COMPLETE CHASSIS ASSEMBLY - BLACK
  • 1
    3707-118 TUNNEL ASSEMBLY - BLACK (INC. 3-14)
    TUNNEL ASSEMBLY - BLACK (INC. 3-14)
  • 2
    0630-353 PROTECTOR, HARNESS
    PROTECTOR, HARNESS
  • 3
    2707-644 ...BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
    ...BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
  • 3
    2707-645 ...BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
    ...BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
  • 4
    8060-706 ...RIVET
    ...RIVET
  • 5
    1623-241 ...RIVET
    ...RIVET
  • 6
    8422-502 ...NUT
    ...NUT
  • 7
    1707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
    ...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
  • 7
    1707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
    ...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
  • 8
    8476-512 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 9
    1623-257 ...RIVET
    ...RIVET
  • 10
    8060-702 ...RIVET
    ...RIVET
  • 11
    2707-172 ...SUPPORT, RUNNING BOARD - RIGHT - BLACK
    ...SUPPORT, RUNNING BOARD - RIGHT - BLACK
  • 11
    2707-173 ...SUPPORT, RUNNING BOARD - LEFT - BLACK
    ...SUPPORT, RUNNING BOARD - LEFT - BLACK
  • 12
    2707-931 ...TUNNEL, REAR - BLACK
    ...TUNNEL, REAR - BLACK
  • 13
    8060-504 ...RIVET
    ...RIVET
  • 14
    1707-725 ...END CAP, TUNNEL - BLACK
    ...END CAP, TUNNEL - BLACK
  • 15
    8061-706 RIVET
    RIVET
  • 16
    1623-762 CLAMP, ROUTING
    CLAMP, ROUTING
  • 17
    8476-820 SCREW, MACHINE
    SCREW, MACHINE
  • 18
    2707-684 SUPPORT, FOOTREST - RIGHT - BLACK
    SUPPORT, FOOTREST - RIGHT - BLACK
  • 18
    2707-685 SUPPORT, FOOTREST - LEFT - BLACK
    SUPPORT, FOOTREST - LEFT - BLACK
  • 19
    8427-802 NUT
    NUT
  • 20
    0744-078 KIT, TOOL
    KIT, TOOL
  • 21
    8468-535 SCREW, MACHINE
    SCREW, MACHINE
  • 22
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 23
    1707-556 FOOTREST - RIGHT - BLACK
    FOOTREST - RIGHT - BLACK
  • 23
    1707-557 FOOTREST - LEFT - BLACK
    FOOTREST - LEFT - BLACK
  • 24
    8470-516 SCREW, MACHINE
    SCREW, MACHINE
  • 25
    1607-306 BRACE, SUPPORT
    BRACE, SUPPORT
  • 26
    1607-109 PROTECTOR, CHAIN CASE
    PROTECTOR, CHAIN CASE
  • 27
    8061-708 RIVET
    RIVET
  • 28
    2707-738 PROTECTOR, BRAKE DISC
    PROTECTOR, BRAKE DISC
  • 29
    2707-044 SHIELD, BRAKE DISC - BLACK
    SHIELD, BRAKE DISC - BLACK
  • 30
    8408-613 SCREW, CAP
    SCREW, CAP
  • 31
    8470-520 SCREW, MACHINE
    SCREW, MACHINE
  • 32
    1623-130 RIVET
    RIVET
  • 33
    2707-170 ROLL, TUNNEL - RIGHT - BLACK
    ROLL, TUNNEL - RIGHT - BLACK
  • 33
    2707-171 ROLL, TUNNEL - LEFT - BLACK
    ROLL, TUNNEL - LEFT - BLACK
  • 34
    0630-338 PROTECTOR, TAILLIGHT HARNESS
    PROTECTOR, TAILLIGHT HARNESS
  • 35
    1707-698 GUSSET, RUNNING BOARD - RIGHT - BLACK
    GUSSET, RUNNING BOARD - RIGHT - BLACK
  • 35
    1707-699 GUSSET, RUNNING BOARD - LEFT - BLACK
    GUSSET, RUNNING BOARD - LEFT - BLACK
  • 36
    1707-700 GUSSET, TUNNEL ROLL - RIGHT - BLACK
    GUSSET, TUNNEL ROLL - RIGHT - BLACK
  • 36
    1707-701 GUSSET, TUNNEL ROLL - LEFT - BLACK
    GUSSET, TUNNEL ROLL - LEFT - BLACK
  • 37
    0630-292 PROTECTOR, TAILLIGHT HARNESS
    PROTECTOR, TAILLIGHT HARNESS
  • 38
    0621-990 DECAL, REFLECTOR - RED
    DECAL, REFLECTOR - RED
  • 39
    8470-510 SCREW, MACHINE
    SCREW, MACHINE
  • 40
    0730-227 BRACKET, MOUNTING - TAILLIGHT - BLACK
    BRACKET, MOUNTING - TAILLIGHT - BLACK
  • 41
    0609-898 TAILLIGHT, LED
    TAILLIGHT, LED
  • 42
    6606-394 SNOWFLAP
    SNOWFLAP
  • 43
    5611-852 DECAL, WARNING - TOWING (FRENCH)
    DECAL, WARNING - TOWING (FRENCH)
  • 44
    5611-853 DECAL, WARNING - TOWING (ENGLISH)
    DECAL, WARNING - TOWING (ENGLISH)
  • 45
    2707-959 BUMPER, REAR - GREEN
    BUMPER, REAR - GREEN
  • 46
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 47
    8427-602 NUT, LOCK
    NUT, LOCK
  • 48
    3621-962 DECAL, TUNNEL - RIGHT
    DECAL, TUNNEL - RIGHT
  • 48
    3621-963 DECAL, TUNNEL - LEFT
    DECAL, TUNNEL - LEFT
  • 49
    7606-419 SADDLEBAG, REAR
    SADDLEBAG, REAR
  • 50
    8061-628 RIVET
    RIVET
