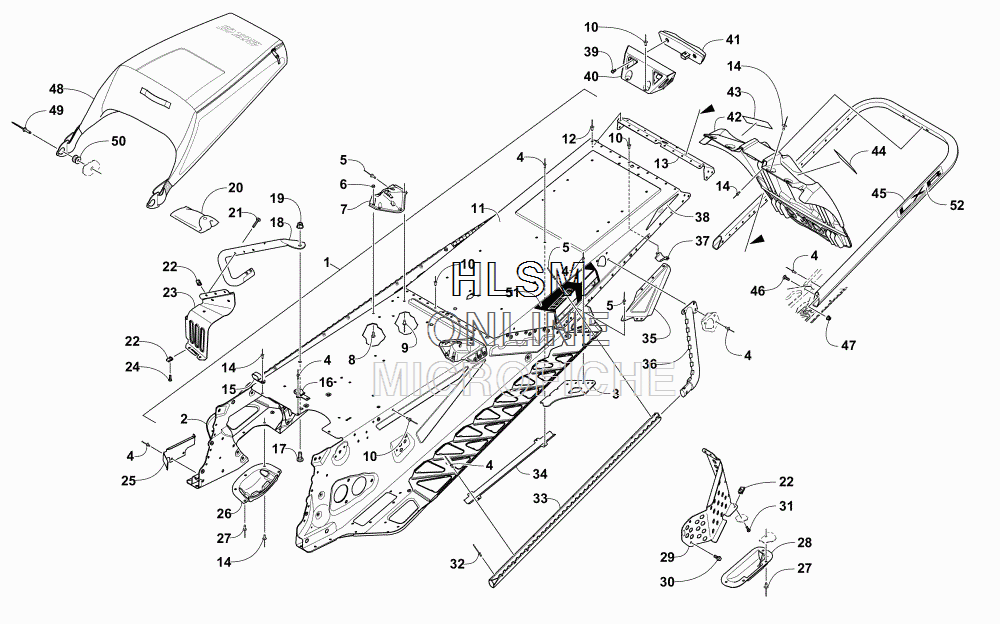

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat ZR 6000 LXR ES 129 BLACK - 2017 года выпуска

  • №
    Артикул
    Название
  • -
    1707-823 COMPLETE CHASSIS ASSEMBLY
    COMPLETE CHASSIS ASSEMBLY
  • 1
    1707-912 TUNNEL ASSEMBLY (INC. 2-13)
    TUNNEL ASSEMBLY (INC. 2-13)
  • 2
    1707-981 ...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)
    ...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)
  • 3
    0607-992 ......BRACKET, MOUNTING - SUSPENSION - RIGHT
    ......BRACKET, MOUNTING - SUSPENSION - RIGHT
  • 3
    0607-993 ......BRACKET, MOUNTING - SUSPENSION - LEFT
    ......BRACKET, MOUNTING - SUSPENSION - LEFT
  • 4
    8060-706 RIVET
    RIVET
  • 5
    1623-241 RIVET
    RIVET
  • 6
    8422-502 NUT
    NUT
  • 7
    1707-644 BRACKET, MOUNTING - REAR SPAR - RIGHT
    BRACKET, MOUNTING - REAR SPAR - RIGHT
  • 7
    1707-645 BRACKET, MOUNTING - REAR SPAR - LEFT
    BRACKET, MOUNTING - REAR SPAR - LEFT
  • 8
    8476-512 SCREW, MACHINE
    SCREW, MACHINE
  • 9
    1623-257 RIVET
    RIVET
  • 10
    8060-682 RIVET
    RIVET
  • 11
    1607-250 TUNNEL, REAR
    TUNNEL, REAR
  • 12
    8060-686 RIVET
    RIVET
  • 13
    1607-104 END CAP, TUNNEL
    END CAP, TUNNEL
  • 14
    8061-686 RIVET
    RIVET
  • 15
    1623-762 CLAMP, ROUTING
    CLAMP, ROUTING
  • 16
    0645-709 CLIP, ROUTING
    CLIP, ROUTING
  • 17
    8476-820 SCREW, MACHINE
    SCREW, MACHINE
  • 18
    0607-996 FOOTREST - RIGHT
    FOOTREST - RIGHT
  • 18
    0607-997 FOOTREST - LEFT
    FOOTREST - LEFT
  • 19
    8427-802 NUT
    NUT
  • 20
    0744-087 KIT, TOOL
    KIT, TOOL
  • 21
    8468-535 SCREW, MACHINE
    SCREW, MACHINE
  • 22
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 23
    0607-996 FOOTREST - RIGHT
    FOOTREST - RIGHT
  • 23
    0607-997 FOOTREST - LEFT
    FOOTREST - LEFT
  • 24
    8470-516 SCREW, MACHINE
    SCREW, MACHINE
  • 25
    0608-705 BRACKET, ROUTING - OIL LINE
    BRACKET, ROUTING - OIL LINE
  • 26
    1607-109 PROTECTOR, CHAIN CASE
    PROTECTOR, CHAIN CASE
  • 27
    8061-708 RIVET
    RIVET
  • 28
    0607-351 PROTECTOR, BRAKE DISC
    PROTECTOR, BRAKE DISC
  • 29
    1607-371 SHIELD, BRAKE DISC
    SHIELD, BRAKE DISC
  • 30
    8408-613 SCREW, CAP
    SCREW, CAP
  • 31
    8470-516 SCREW, MACHINE
    SCREW, MACHINE
  • 32
    1623-130 RIVET
    RIVET
  • 33
    1607-092 ROLL, TUNNEL - RIGHT
    ROLL, TUNNEL - RIGHT
  • 34
    0630-308 PROTECTOR, HARNESS - TAILLIGHT EXTENSION
    PROTECTOR, HARNESS - TAILLIGHT EXTENSION
  • 35
    1607-162 GUSSET, RUNNING BOARD - RIGHT
    GUSSET, RUNNING BOARD - RIGHT
  • 35
    1607-163 GUSSET, RUNNING BOARD - LEFT
    GUSSET, RUNNING BOARD - LEFT
  • 36
    1607-040 GUSSET, TUNNEL ROLL - RIGHT
    GUSSET, TUNNEL ROLL - RIGHT
  • 36
    1607-041 GUSSET, TUNNEL ROLL - LEFT
    GUSSET, TUNNEL ROLL - LEFT
  • 37
    0630-292 PROTECTOR, TAILLIGHT HARNESS
    PROTECTOR, TAILLIGHT HARNESS
  • 38
    0621-990 DECAL, REFLECTOR - RED
    DECAL, REFLECTOR - RED
  • 39
    8470-512 SCREW, MACHINE
    SCREW, MACHINE
  • 40
    0630-328 BRACKET, MOUNTING - TAILLIGHT
    BRACKET, MOUNTING - TAILLIGHT
  • 41
    0609-898 TAILLIGHT, LED
    TAILLIGHT, LED
  • 42
    6606-394 SNOWFLAP
    SNOWFLAP
  • 43
    5611-852 DECAL, WARNING - TOWING (FRENCH)
    DECAL, WARNING - TOWING (FRENCH)
  • 44
    5611-853 DECAL, WARNING - TOWING (ENGLISH)
    DECAL, WARNING - TOWING (ENGLISH)
  • 45
    2707-579 BUMPER, REAR - WHITE
    BUMPER, REAR - WHITE
  • 46
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 47
    8427-602 NUT, LOCK
    NUT, LOCK
  • 48
    6606-600 SADDLEBAG
    SADDLEBAG
  • 49
    8060-630 RIVET
    RIVET
  • 50
    1623-940 MOUNT, SADDLEBAG
    MOUNT, SADDLEBAG
  • 51
    3621-246 DECAL, TUNNEL - RIGHT - 129"
    DECAL, TUNNEL - RIGHT - 129"
  • 51
    3621-247 DECAL, TUNNEL - LEFT - 129"
    DECAL, TUNNEL - LEFT - 129"
  • 52
    3621-245 DECAL, REAR BUMPER - "LXR"
    DECAL, REAR BUMPER - "LXR"
