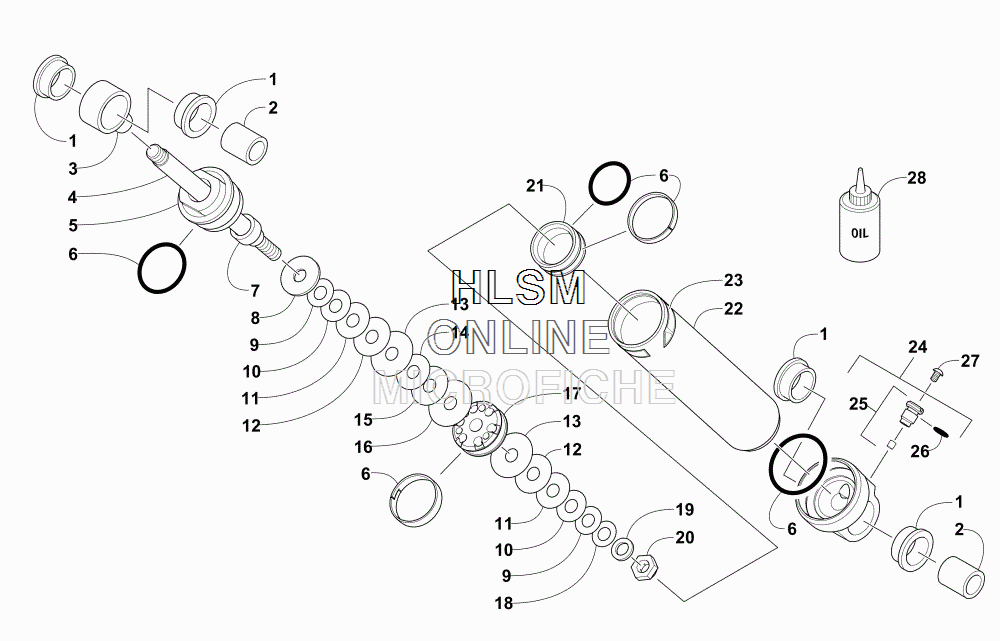

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat ZR 6000 LXR ES 129 BLACK - 2017 года выпуска`
-
№АртикулНазвание
-
-2704-680 SHOCK, REARSHOCK, REAR
-
13604-738 BUSHINGBUSHING
-
23604-737 SLEEVESLEEVE
-
33604-796 EYELET, SHOCKEYELET, SHOCK
-
43604-776 ROD, SHOCKROD, SHOCK
-
54604-126 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
64604-121 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
73604-956 SPACER, SHAFTSPACER, SHAFT
-
83604-789 WASHER, TOP OUTWASHER, TOP OUT
-
93603-105 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
103603-115 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
113603-125 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
123603-145 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
133603-175 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
143603-122 VALVE, 1.000 X 0.006 IN.VALVE, 1.000 X 0.006 IN.
-
153603-144 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
163603-186 VALVE, 1.300 X 0.012 IN.VALVE, 1.300 X 0.012 IN.
-
172603-018 PISTON, 0.055 IN. - ORIFICEPISTON, 0.055 IN. - ORIFICE
-
183603-095 VALVE, 0.700 X 0.010 IN.VALVE, 0.700 X 0.010 IN.
-
193604-775 WASHER, BACKUPWASHER, BACKUP
-
203604-739 NUTNUT
-
213604-772 PISTON, FLOATINGPISTON, FLOATING
-
223604-759 BODY, SHOCKBODY, SHOCK
-
231621-728 DECAL, WARNING - HIGH PRESSUREDECAL, WARNING - HIGH PRESSURE
-
242704-257 END CAP, SHOCK - ASSEMBLY (INC. 25-26)END CAP, SHOCK - ASSEMBLY (INC. 25-26)
-
253604-751 ...VALVE, PRESSURE (INC. 26)...VALVE, PRESSURE (INC. 26)
-
263604-733 ......O-RING, VALVE......O-RING, VALVE
-
273604-750 SCREW, MACHINESCREW, MACHINE
-
285639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
