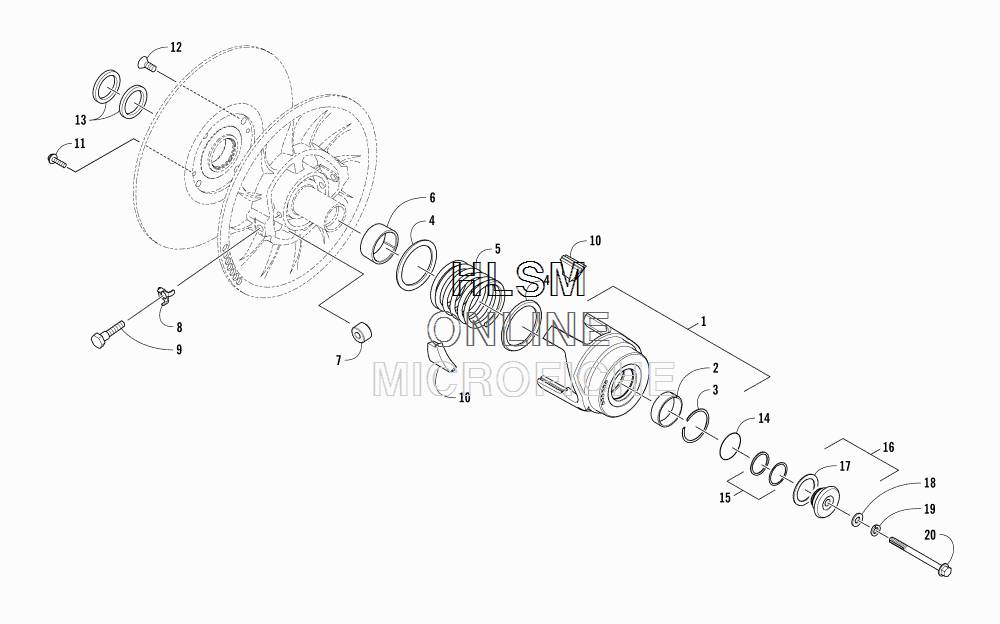

DRIVEN CLUTCH для Arctic Cat ZR 4000 LXR 129 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
-0726-342 CLUTCH, DRIVEN - ASSEMBLYCLUTCH, DRIVEN - ASSEMBLY
-
10748-772 BRACKET, TORQUE 42°/40° (INC. 2-3)BRACKET, TORQUE 42°/40° (INC. 2-3)
-
20648-831 ...BEARING...BEARING
-
30648-811 ...RING, SNAP...RING, SNAP
-
40648-810 SEAT, SPRINGSEAT, SPRING
-
50648-813 SPRING, DRIVEN CLUTCH - BLUESPRING, DRIVEN CLUTCH - BLUE
-
60648-827 SPACERSPACER
-
70648-824 ROLLER, DRIVEN-TORLONROLLER, DRIVEN-TORLON
-
80648-800 WASHER, TABWASHER, TAB
-
90648-799 SCREW, SHOULDERSCREW, SHOULDER
-
100648-826 CAM, BACK - 2-STROKECAM, BACK - 2-STROKE
-
110623-684 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
122623-050 SCREW, MACHINESCREW, MACHINE
-
130648-816 WASHER, SHIM (.030 IN.)WASHER, SHIM (.030 IN.)
-
130648-817 WASHER, SHIM (.060 IN.)WASHER, SHIM (.060 IN.)
-
130648-818 WASHER, SHIM (.090 IN.)WASHER, SHIM (.090 IN.)
-
140648-441 O-RINGO-RING
-
150648-715 WASHER, SHIM (.030 IN.)WASHER, SHIM (.030 IN.)
-
150648-716 WASHER, SHIM (.060 IN.)WASHER, SHIM (.060 IN.)
-
150648-717 WASHER, SHIM (.090 IN.)WASHER, SHIM (.090 IN.)
-
161702-114 KIT, ADJUSTER - SHEAVE - W/WASHER (INC. 17)KIT, ADJUSTER - SHEAVE - W/WASHER (INC. 17)
-
170648-788 ...WASHER, THRUST...WASHER, THRUST
-
188450-127 WASHERWASHER
-
198051-242 WASHER, LOCKWASHER, LOCK
-
208408-801 SCREW, CAPSCREW, CAP
