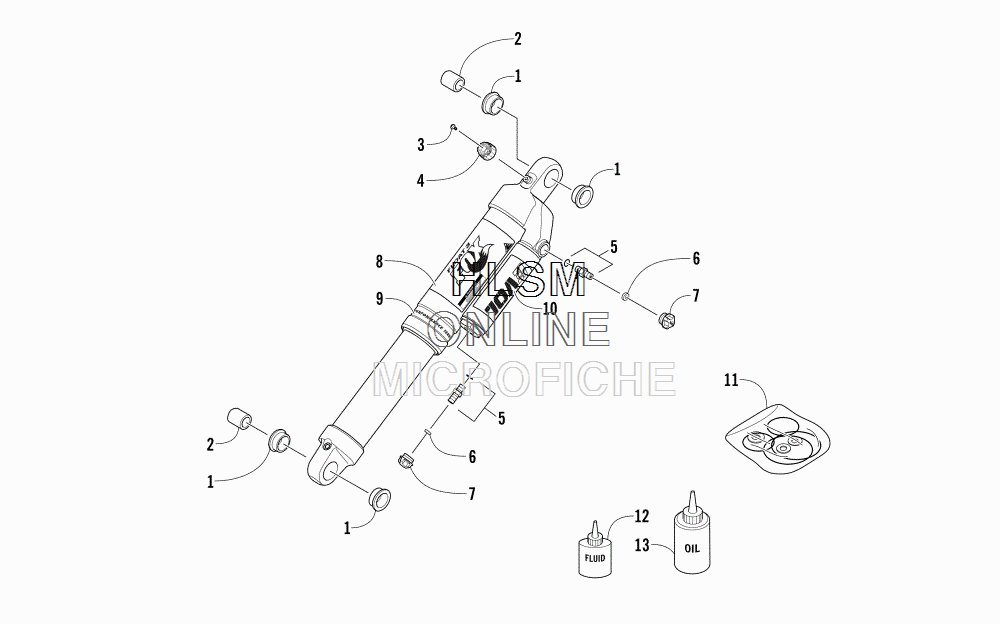

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat M 8000 MOUNTAIN CAT 162 GREEN EARLY BUILD - 2017 года выпуска`
-
№АртикулНазвание
-
-3704-131 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
11604-222 BUSHINGBUSHING
-
22604-223 SLEEVESLEEVE
-
33603-377 SCREW, MACHINESCREW, MACHINE
-
43603-386 KNOB, REBOUNDKNOB, REBOUND
-
52603-511 VALVE, AIRVALVE, AIR
-
62603-965 SEALSEAL
-
73603-367 CAP, AIR VALVECAP, AIR VALVE
-
83603-369 DECAL, SHOCK (WARNINGS)DECAL, SHOCK (WARNINGS)
-
93603-365 DECAL, (PERFORMANCE SERIES)DECAL, (PERFORMANCE SERIES)
-
103603-373 DECAL, (EVOL)DECAL, (EVOL)
-
114604-066 KIT, SEAL/BEARING REBUILDKIT, SEAL/BEARING REBUILD
-
124639-012 FLUID, FLOAT SHOCK - 8 OZFLUID, FLOAT SHOCK - 8 OZ
-
135639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
