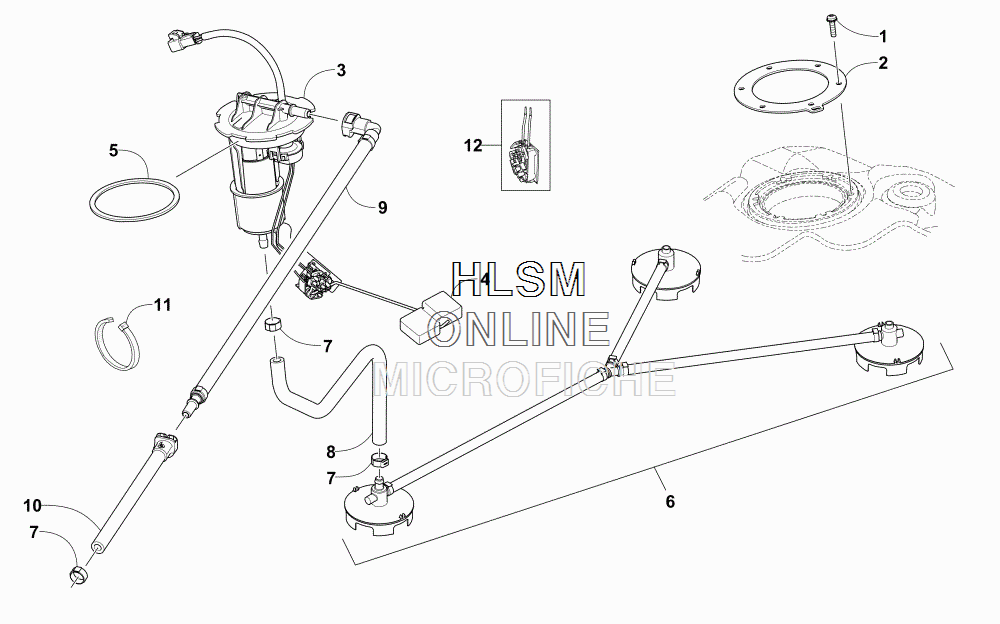

FUEL PUMP ASSEMBLY для Arctic Cat M 8000 MOUNTAIN CAT 162 GREEN EARLY BUILD - 2017 года выпуска
-
№АртикулНазвание
-
10423-898 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
22670-042 PLATE, RETAINING - FUEL PUMPPLATE, RETAINING - FUEL PUMP
-
32670-472 PUMP, FUEL - ASSEMBLY (INC. 4)PUMP, FUEL - ASSEMBLY (INC. 4)
-
42670-235 ...FLOAT...FLOAT
-
50470-838 SEALSEAL
-
62670-377 PICKUP, FUEL - ASSEMBLYPICKUP, FUEL - ASSEMBLY
-
70610-563 CLAMP, HOSECLAMP, HOSE
-
82670-442 HOSE, FUEL PUMP/PICKUPHOSE, FUEL PUMP/PICKUP
-
91770-146 FUEL LINE ASSEMBLYFUEL LINE ASSEMBLY
-
101770-147 FUEL LINE ASSEMBLYFUEL LINE ASSEMBLY
-
110123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
110123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
121770-170 FUEL LEVEL SENSOR KITFUEL LEVEL SENSOR KIT
