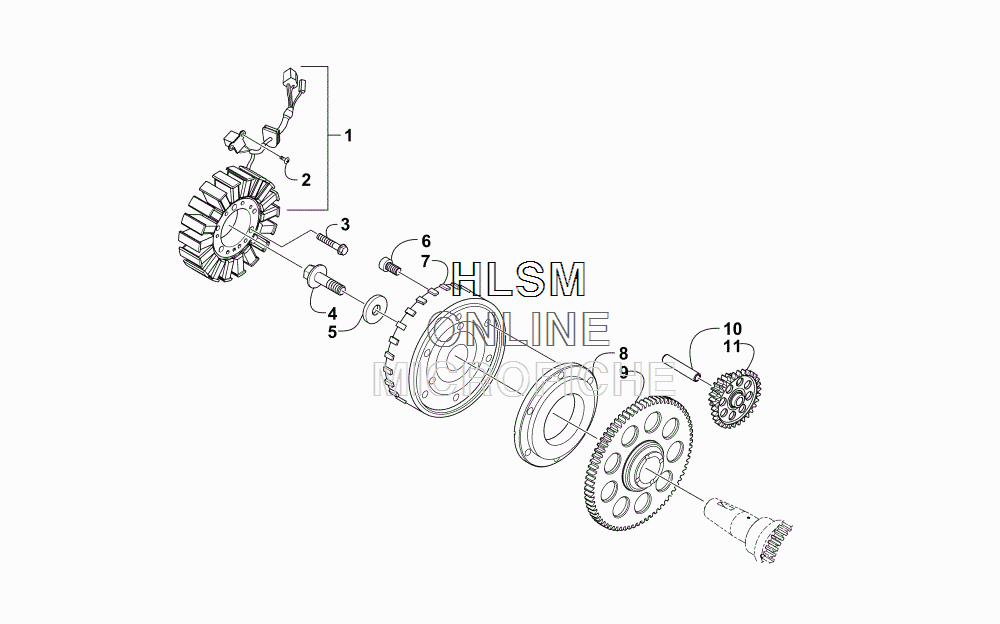

MAGNETO ASSEMBLY для Arctic Cat BEARCAT 3000 LT BLUE - 2017 года выпуска
-
№АртикулНазвание
-
13307-028 STATOR - ASSEMBLYSTATOR - ASSEMBLY
-
23303-308 SCREW, CAPSCREW, CAP
-
33305-945 SCREW, CAPSCREW, CAP
-
43307-031 SCREW, CAPSCREW, CAP
-
53307-032 WASHERWASHER
-
60826-120 SCREW, CAPSCREW, CAP
-
73307-027 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
83307-026 OUTER COVER, STARTING CLUTCHOUTER COVER, STARTING CLUTCH
-
93307-025 GEAR, STARTING CLUTCH - OUTERGEAR, STARTING CLUTCH - OUTER
-
100815-007 PIN, STARTER IDLER GEAR NO. 1PIN, STARTER IDLER GEAR NO. 1
-
113306-796 GEAR, STARTER REDUCTIONGEAR, STARTER REDUCTION
