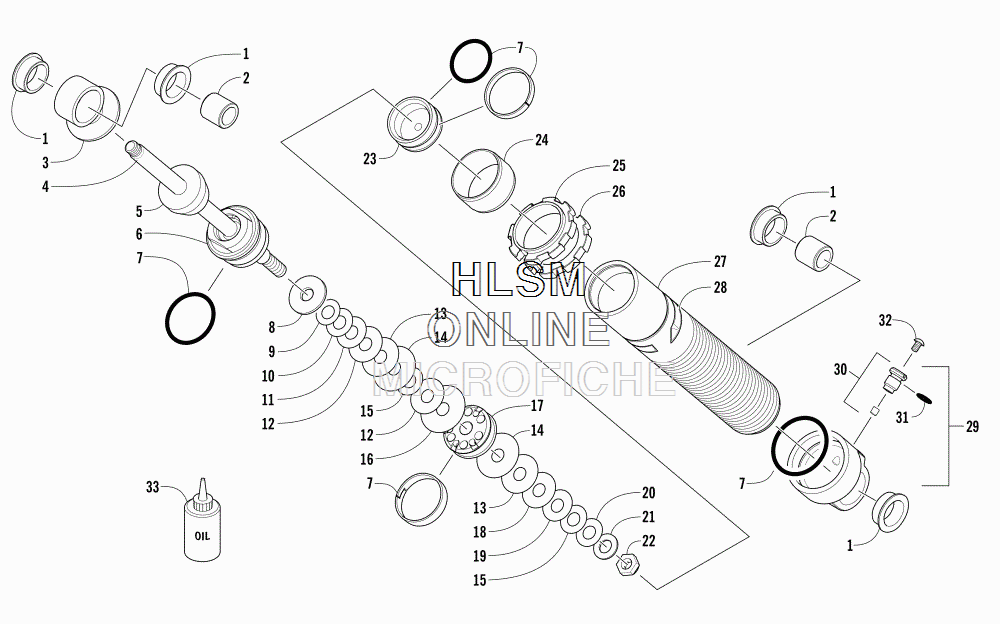

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat BEARCAT 3000 LT BLUE - 2017 года выпуска

  • №
    Артикул
    Название
  • -
    3703-508 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    3604-738 BUSHING
    BUSHING
  • 2
    3604-737 SLEEVE
    SLEEVE
  • 3
    2603-020 EYELET, SHOCK
    EYELET, SHOCK
  • 4
    3604-809 ROD, SHOCK
    ROD, SHOCK
  • 5
    3604-740 BUMPER, SHOCK
    BUMPER, SHOCK
  • 6
    4604-126 BEARING - ASSEMBLY
    BEARING - ASSEMBLY
  • 7
    4604-121 KIT, SEAL/REBUILD
    KIT, SEAL/REBUILD
  • 8
    3604-789 WASHER, TOP OUT
    WASHER, TOP OUT
  • 9
    3603-096 VALVE, 0.700 X 0.012 IN.
    VALVE, 0.700 X 0.012 IN.
  • 10
    3603-104 VALVE, 0.800 X 0.008 IN.
    VALVE, 0.800 X 0.008 IN.
  • 11
    3603-114 VALVE, 0.900 X 0.008 IN.
    VALVE, 0.900 X 0.008 IN.
  • 12
    3603-124 VALVE, 1.000 X 0.008 IN.
    VALVE, 1.000 X 0.008 IN.
  • 13
    3603-144 VALVE, 1.100 X 0.008 IN.
    VALVE, 1.100 X 0.008 IN.
  • 14
    3603-174 VALVE, 1.250 X 0.008 IN.
    VALVE, 1.250 X 0.008 IN.
  • 15
    3603-105 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 16
    3603-182 VALVE, 1.300 X 0.006 IN.
    VALVE, 1.300 X 0.006 IN.
  • 17
    2603-996 PISTON, 0.081 IN. - ORIFICE
    PISTON, 0.081 IN. - ORIFICE
  • 18
    3603-125 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 19
    3603-115 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 20
    3603-102 VALVE, 0.800 X 0.006 IN.
    VALVE, 0.800 X 0.006 IN.
  • 21
    3604-775 WASHER, BACKUP
    WASHER, BACKUP
  • 22
    3604-739 NUT
    NUT
  • 23
    3604-772 PISTON, FLOATING
    PISTON, FLOATING
  • 24
    3604-773 SLEEVE, WEAR
    SLEEVE, WEAR
  • 25
    2603-014 NUT, ADJUSTER
    NUT, ADJUSTER
  • 26
    3604-779 COLLAR, LOCKING - ADJUSTER NUT
    COLLAR, LOCKING - ADJUSTER NUT
  • 27
    3604-808 BODY, SHOCK
    BODY, SHOCK
  • 28
    1621-728 DECAL, WARNING - HIGH PRESSURE
    DECAL, WARNING - HIGH PRESSURE
  • 29
    2704-257 END CAP, SHOCK - ASSEMBLY (INC. 30-31)
    END CAP, SHOCK - ASSEMBLY (INC. 30-31)
  • 30
    3604-751 ...VALVE, PRESSURE (INC. 31)
    ...VALVE, PRESSURE (INC. 31)
  • 31
    3604-733 ......O-RING, VALVE
    ......O-RING, VALVE
  • 32
    3604-750 SCREW, MACHINE
    SCREW, MACHINE
  • 33
    5639-530 OIL, SHOCK - 1 QT
    OIL, SHOCK - 1 QT
