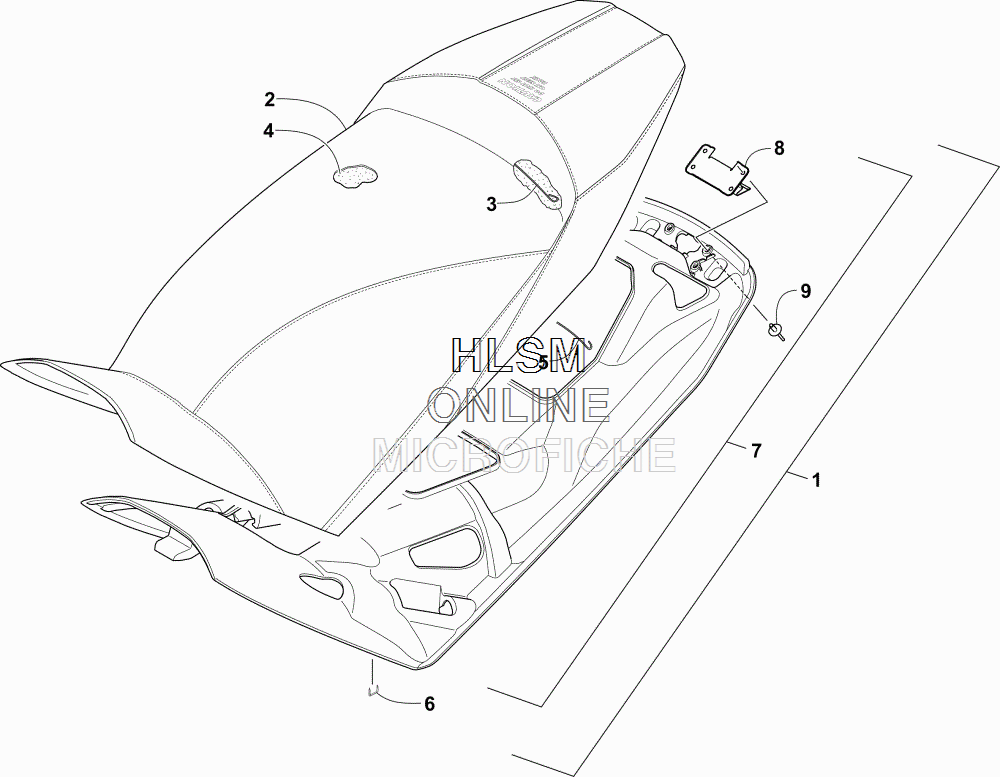

SEAT ASSEMBLY для Arctic Cat ZR 7000 RR 129 [S2016ZRURRUSG] - 2016 года выпуска`
-
№АртикулНазвание
-
16706-014 COMPLETE SEAT ASSEMBLY - GREEN (INC. 2-9)COMPLETE SEAT ASSEMBLY - GREEN (INC. 2-9)
-
25706-722 ...COVER, SEAT - GREEN (INC. 3)...COVER, SEAT - GREEN (INC. 3)
-
33606-369 ......WIRE, SEAT......WIRE, SEAT
-
40717-214 ...FOAM, SEAT...FOAM, SEAT
-
56606-461 ...WIRE, SEAT...WIRE, SEAT
-
60624-527 ...STAPLE...STAPLE
-
75706-770 ...SEAT BASE (INC. 8-9)...SEAT BASE (INC. 8-9)
-
86606-833 ......LATCH, SEAT......LATCH, SEAT
-
98061-708 ......RIVET......RIVET
Все узлы модели:
- A-ARM AND SWAY BAR ASSEMBLY
- AIR INTAKE ASSEMBLY
- BATTERY AND TRAY ASSEMBLY
- BELT GUARD ASSEMBLY
- CAMSHAFT- CHAIN- AND VALVE ASSEMBLY
- CHAIN CASE ASSEMBLY
- CONSOLE ASSEMBLY
- COOLING ASSEMBLY
- CRANKCASE ASSEMBLY
- CYLINDER HEAD ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVEN CLUTCH
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FRONT BUMPER AND FRAME ASSEMBLY
- FRONT SHOCK ABSORBER ASSEMBLY
- FUEL PUMP ASSEMBLY
- GAS TANK ASSEMBLY
- HANDLEBAR AND CONTROLS
- HEADLIGHT AND WIRING ASSEMBLIES
- HOOD ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- MAGNETO AND COVER ASSEMBLY
- OIL PAN ASSEMBLY
- OIL PUMP ASSEMBLY
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT ASSEMBLY
- REAR SUSPENSION FRONT ARM ASSEMBLY
- REAR SUSPENSION FRONT ARM SHOCK ABSORBER
- REAR SUSPENSION REAR ARM ASSEMBLY
- REAR SUSPENSION REAR ARM SHOCK ABSORBER
- • SEAT ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SKID PLATE AND SIDE PANEL ASSEMBLY
- STARTER MOTOR ASSEMBLY
- STEERING POST ASSEMBLY
- STEERING SUPPORT ASSEMBLY
- SUSPENSION FRONT - SHOCK ABSORBER
- THROTTLE BODY ASSEMBLY
- TIE ROD ASSEMBLY
- TRACK ASSEMBLY W/ SLIDE RAIL
- TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY
- WATER PUMP ASSEMBLY
- WINDSHIELD AND INSTRUMENTS ASSEMBLIES
