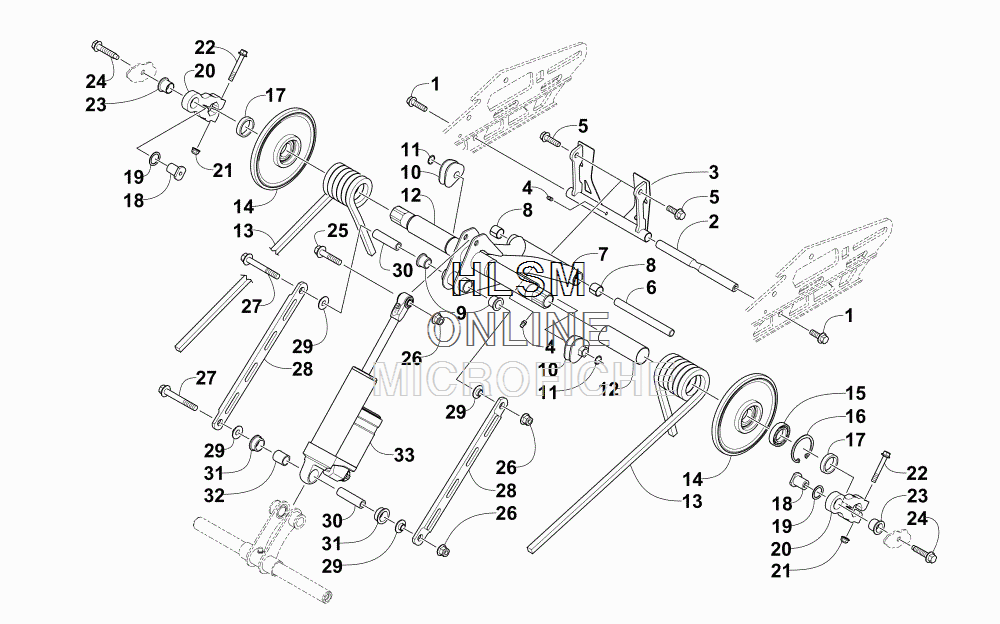

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat ZR 6000 RR GREEN EARLY BUILD [S2016ZRDRREBG] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    8413-831 SCREW, CAP
    SCREW, CAP
  • 2
    3604-965 AXLE
    AXLE
  • 3
    2704-389 ARM, REAR - BLACK (INC. ONE NO. 4)
    ARM, REAR - BLACK (INC. ONE NO. 4)
  • 4
    1623-010 ...FITTING, GREASE
    ...FITTING, GREASE
  • 5
    8413-041 SCREW, CAP
    SCREW, CAP
  • 6
    3604-638 AXLE
    AXLE
  • 7
    2704-533 ARM, IDLER - BLACK (INC. ONE NO. 4 AND 8-9)
    ARM, IDLER - BLACK (INC. ONE NO. 4 AND 8-9)
  • 8
    2603-481 ...BEARING
    ...BEARING
  • 9
    0104-386 ...BUSHING
    ...BUSHING
  • 10
    1604-204 BLOCK, SPRING ADJUSTER - RIGHT - BLACK
    BLOCK, SPRING ADJUSTER - RIGHT - BLACK
  • 10
    1604-205 BLOCK, SPRING ADJUSTER - LEFT - BLACK
    BLOCK, SPRING ADJUSTER - LEFT - BLACK
  • 11
    0623-138 RING, RETAINING
    RING, RETAINING
  • 12
    3604-819 SLEEVE, SPRING
    SLEEVE, SPRING
  • 13
    1704-576 SPRING, SUSPENSION - RIGHT - BLACK
    SPRING, SUSPENSION - RIGHT - BLACK
  • 13
    1704-577 SPRING, SUSPENSION - LEFT - BLACK
    SPRING, SUSPENSION - LEFT - BLACK
  • 14
    3604-264 WHEEL, IDLER (INC. 15-16)
    WHEEL, IDLER (INC. 15-16)
  • 15
    3604-257 ...BEARING
    ...BEARING
  • 16
    3604-256 ...RING, RETAINING
    ...RING, RETAINING
  • 17
    3604-289 SPACER, PIVOT - IDLER ARM
    SPACER, PIVOT - IDLER ARM
  • 18
    3604-979 AXLE, OFFSET ARM
    AXLE, OFFSET ARM
  • 19
    3604-930 WASHER
    WASHER
  • 20
    2704-218 PIVOT - IDLER ARM (INC. 21-23)
    PIVOT - IDLER ARM (INC. 21-23)
  • 21
    8427-802 ...NUT, LOCK
    ...NUT, LOCK
  • 22
    8408-860 ...SCREW, CAP
    ...SCREW, CAP
  • 23
    3604-713 ...BUSHING, FLARED
    ...BUSHING, FLARED
  • 24
    2623-002 SCREW, CAP
    SCREW, CAP
  • 25
    8408-045 SCREW, CAP
    SCREW, CAP
  • 26
    2623-076 NUT, LOCK - W/WASHER
    NUT, LOCK - W/WASHER
  • 27
    8408-090 SCREW, CAP
    SCREW, CAP
  • 28
    2704-230 LINK, SHOCK (INC. 29)
    LINK, SHOCK (INC. 29)
  • 29
    3604-266 ...INSERT, RAIL
    ...INSERT, RAIL
  • 30
    3604-694 AXLE
    AXLE
  • 31
    3604-804 BUSHING
    BUSHING
  • 32
    3604-802 SLEEVE
    SLEEVE
  • 33
    2704-636 SHOCK ABSORBER
    SHOCK ABSORBER
