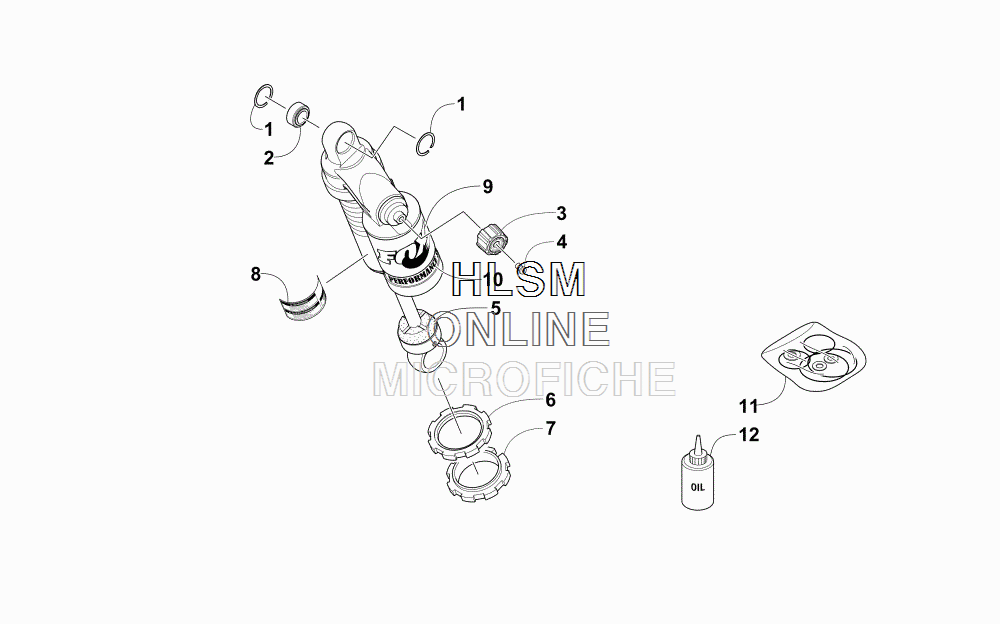

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat ZR 6000 RR GREEN EARLY BUILD [S2016ZRDRREBG] - 2016 года выпуска
-
№АртикулНазвание
-
-2704-635 SHOCK ABSORBERSHOCK ABSORBER
-
13604-527 RING, RETAININGRING, RETAINING
-
23604-526 BEARINGBEARING
-
33603-385 KNOB, DAMPING ADJUSTER - LOW SPEEDKNOB, DAMPING ADJUSTER - LOW SPEED
-
43603-377 SCREW, MACHINESCREW, MACHINE
-
53604-530 BUMPERBUMPER
-
62604-841 COLLAR, LOCKING - ADJUSTER NUTCOLLAR, LOCKING - ADJUSTER NUT
-
72604-840 NUT, ADJUSTERNUT, ADJUSTER
-
83603-418 DECAL, WARNINGDECAL, WARNING
-
93603-378 DECAL, RESERVOIRDECAL, RESERVOIR
-
103603-365 DECAL, "PERFORMANCE SERIES"DECAL, "PERFORMANCE SERIES"
-
114604-017 KIT, REBUILD - RESERVOIRKIT, REBUILD - RESERVOIR
-
125639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
