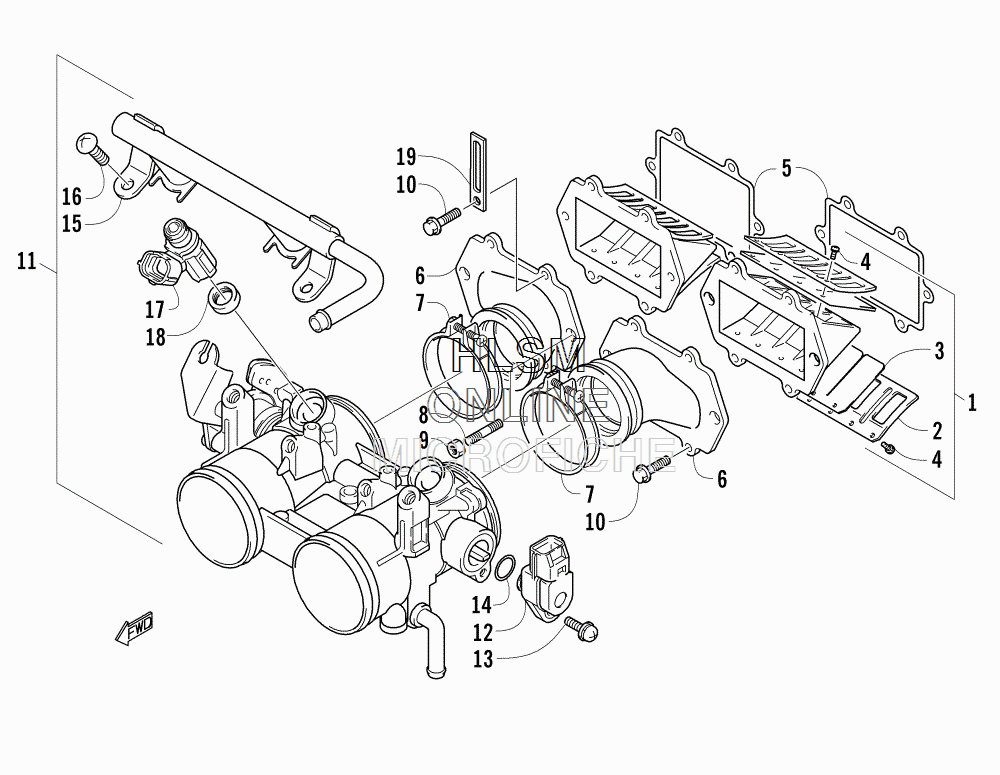

REED VALVE/THROTTLE BODY ASSEMBLY для Arctic Cat ZR 4000 LXR GREEN [S2016ZRCEFUSG] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    3005-876 VALVE, REED - ASSEMBLY (INC. 2-4)
    VALVE, REED - ASSEMBLY (INC. 2-4)
  • 2
    3005-877 ...STOPPER
    ...STOPPER
  • 3
    3005-878 ...VALVE, REED
    ...VALVE, REED
  • 4
    3004-506 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 5
    3005-879 GASKET, REED VALVE
    GASKET, REED VALVE
  • 6
    3007-462 PIPE, INTAKE - RIGHT
    PIPE, INTAKE - RIGHT
  • 6
    3007-463 PIPE, INTAKE - LEFT
    PIPE, INTAKE - LEFT
  • 7
    3007-464 CLAMP
    CLAMP
  • 8
    3007-465 BOLT, STUD
    BOLT, STUD
  • 9
    3007-373 NUT
    NUT
  • 10
    3007-409 BOLT
    BOLT
  • 11
    3007-466 BODY, THROTTLE - ASSEMBLY (INC. 12-18)
    BODY, THROTTLE - ASSEMBLY (INC. 12-18)
  • 12
    3007-467 ...SENSOR, THROTTLE POSITION - ASSEMBLY
    ...SENSOR, THROTTLE POSITION - ASSEMBLY
  • 13
    3006-652 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 14
    3007-468 ...O-RING
    ...O-RING
  • 15
    3007-469 ...PIPE, DELIVERY
    ...PIPE, DELIVERY
  • 16
    3423-814 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 17
    3007-051 ...INJECTOR, FUEL - ASSEMBLY (A)
    ...INJECTOR, FUEL - ASSEMBLY (A)
  • 17
    3007-052 ...INJECTOR, FUEL - ASSEMBLY (B)
    ...INJECTOR, FUEL - ASSEMBLY (B)
  • 17
    3007-053 ...INJECTOR, FUEL - ASSEMBLY (C)
    ...INJECTOR, FUEL - ASSEMBLY (C)
  • 18
    3403-121 ...CUSHION, INJECTOR
    ...CUSHION, INJECTOR
  • 19
    1623-984 CLAMP, ROUTING
    CLAMP, ROUTING
