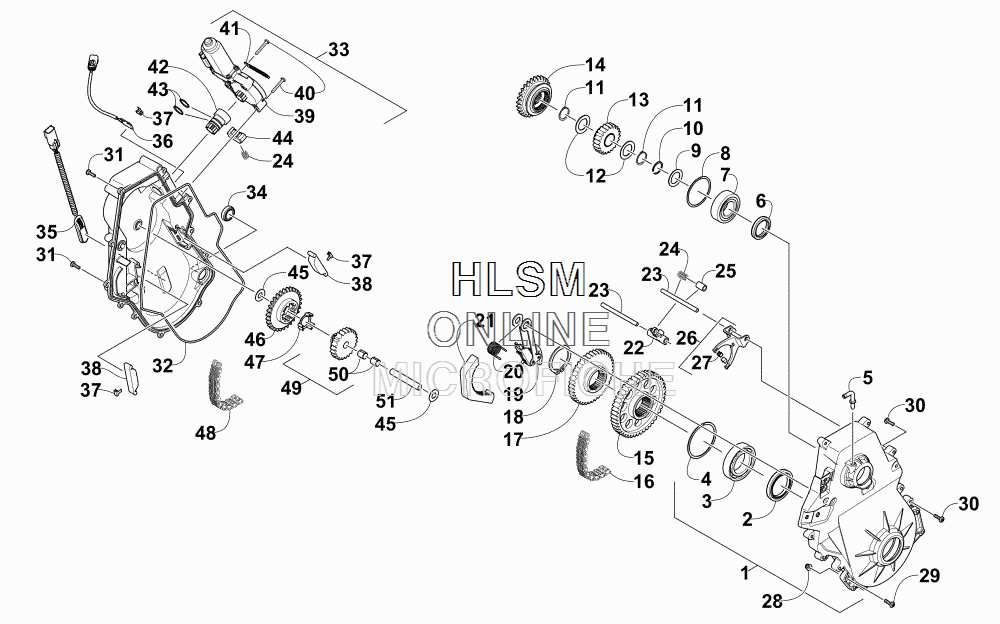

CHAIN CASE ASSEMBLY для Arctic Cat ZR 4000 LXR GREEN [S2016ZRCEFUSG] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1702-363 CHAIN CASE ASSEMBLY (INC. 2-8)
    CHAIN CASE ASSEMBLY (INC. 2-8)
  • 2
    2602-172 ...SEAL
    ...SEAL
  • 3
    2602-281 ...BEARING
    ...BEARING
  • 4
    2602-280 ...RING, RETAINING
    ...RING, RETAINING
  • 5
    2602-641 ...FITTING, ELBOW
    ...FITTING, ELBOW
  • 6
    2602-204 ...SEAL
    ...SEAL
  • 7
    2602-734 ...BEARING
    ...BEARING
  • 8
    2602-236 ...RING, RETAINING
    ...RING, RETAINING
  • 9
    0648-443 WASHER, SHIM (.060 IN.)
    WASHER, SHIM (.060 IN.)
  • 10
    1423-175 RING, RETAINING
    RING, RETAINING
  • 11
    1623-690 RING, RETAINING
    RING, RETAINING
  • 12
    2602-339 WASHER, THRUST
    WASHER, THRUST
  • 13
    1702-201 SPROCKET - 21T (13 WIDE)
    SPROCKET - 21T (13 WIDE)
  • 14
    2602-270 GEAR, SHIFT - REVERSE
    GEAR, SHIFT - REVERSE
  • 15
    2602-363 SPROCKET - 49T (13 WIDE)
    SPROCKET - 49T (13 WIDE)
  • 16
    2602-370 CHAIN - 90P (13 WIDE)
    CHAIN - 90P (13 WIDE)
  • 17
    2602-276 SPROCKET - 40T (11 WIDE)
    SPROCKET - 40T (11 WIDE)
  • 18
    2602-629 RING, RETAINING
    RING, RETAINING
  • 19
    1702-319 TENSIONER, ARM - ASSEMBLY
    TENSIONER, ARM - ASSEMBLY
  • 20
    2602-336 SPRING
    SPRING
  • 21
    2602-230 PLATE, RATCHET
    PLATE, RATCHET
  • 22
    1702-265 ARM, SHIFT FORK
    ARM, SHIFT FORK
  • 23
    2602-418 SHAFT, REVERSE
    SHAFT, REVERSE
  • 24
    2602-417 SPRING
    SPRING
  • 25
    2602-579 BUSHING
    BUSHING
  • 26
    1702-299 SHIFT FORK - ASSEMBLY (INC. 27)
    SHIFT FORK - ASSEMBLY (INC. 27)
  • 27
    2602-341 ...PAD, WEAR - SHIFT FORK
    ...PAD, WEAR - SHIFT FORK
  • 28
    8427-602 NUT, LOCK
    NUT, LOCK
  • 29
    8476-630 SCREW, MACHINE
    SCREW, MACHINE
  • 30
    8468-622 SCREW, MACHINE
    SCREW, MACHINE
  • 31
    8468-626 SCREW, MACHINE
    SCREW, MACHINE
  • 32
    2602-817 SEAL, CHAIN CASE
    SEAL, CHAIN CASE
  • 33
    1702-267 COVER, CHAIN CASE - REV - ASSEMBLY (INC. 34-38)
    COVER, CHAIN CASE - REV - ASSEMBLY (INC. 34-38)
  • 34
    2602-232 ...GLASS, SIGHT
    ...GLASS, SIGHT
  • 35
    0730-172 ...KIT, SPEEDOMETER SENSOR
    ...KIT, SPEEDOMETER SENSOR
  • 36
    0730-197 ...KIT, GEAR POSITION SENSOR
    ...KIT, GEAR POSITION SENSOR
  • 37
    1623-703 ...CLIP
    ...CLIP
  • 38
    2602-387 ...SNUBBER, CHAIN
    ...SNUBBER, CHAIN
  • 39
    0630-285 ACTUATOR, REVERSE
    ACTUATOR, REVERSE
  • 40
    2623-157 SCREW, MACHINE
    SCREW, MACHINE
  • 41
    1623-984 CLAMP, ROUTING
    CLAMP, ROUTING
  • 42
    0630-331 EXTENSION, ACTUATOR
    EXTENSION, ACTUATOR
  • 43
    0830-185 O-RING
    O-RING
  • 44
    0630-332 BLOCK, DETENT
    BLOCK, DETENT
  • 45
    2602-338 WASHER, THRUST
    WASHER, THRUST
  • 46
    2602-275 GEAR, REVERSE IDLER - 30T (11 WIDE)
    GEAR, REVERSE IDLER - 30T (11 WIDE)
  • 47
    2602-415 INSERT, IDLER
    INSERT, IDLER
  • 48
    2602-342 CHAIN - 68P (11 WIDE)
    CHAIN - 68P (11 WIDE)
  • 49
    1702-173 IDLER, REVERSE - ASSEMBLY (INC. 50)
    IDLER, REVERSE - ASSEMBLY (INC. 50)
  • 50
    2602-337 ...BEARING
    ...BEARING
  • 51
    2602-277 SHAFT, REVERSE
    SHAFT, REVERSE
