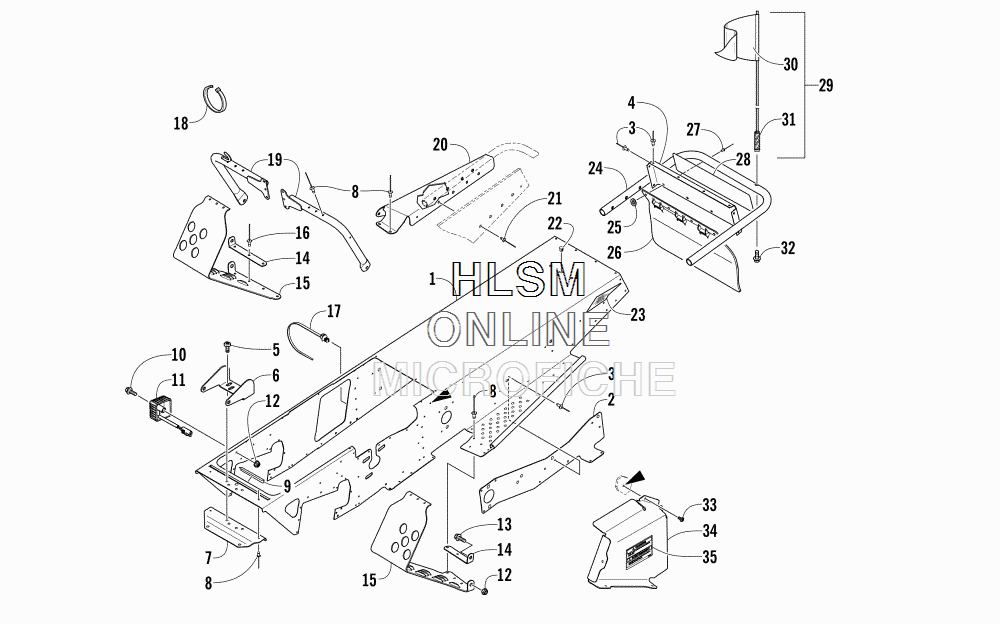

CHASSIS- FOOTREST- AND REAR BUMPER ASSEMBLY для Arctic Cat ZR 120 GREEN [S2016ZRAAAUSG] - 2016 года выпуска`
-
№АртикулНазвание
-
13718-073 TUNNEL ASSEMBLY (INC. 2-4)TUNNEL ASSEMBLY (INC. 2-4)
-
22706-156 ...PLATE, TUNNEL - REINFORCED - RIGHT...PLATE, TUNNEL - REINFORCED - RIGHT
-
22706-157 ...PLATE, TUNNEL - REINFORCED - LEFT...PLATE, TUNNEL - REINFORCED - LEFT
-
30123-418 ...RIVET, SOLID...RIVET, SOLID
-
42706-158 ...PLATE, COVER-TUNNEL...PLATE, COVER-TUNNEL
-
50623-892 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
62706-141 BRACKET, MOUNTING - HOODBRACKET, MOUNTING - HOOD
-
73706-774 PLATE, REINFORCEMENTPLATE, REINFORCEMENT
-
88060-484 RIVETRIVET
-
90706-371 TRIM - 3 FTTRIM - 3 FT
-
108020-045 SCREW, CAPSCREW, CAP
-
110630-181 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
128047-366 NUT, LOCKNUT, LOCK
-
138020-040 SCREW, CAPSCREW, CAP
-
142706-180 BRACKET, SUPPORT - FOOTREST - RIGHTBRACKET, SUPPORT - FOOTREST - RIGHT
-
142706-181 BRACKET, SUPPORT - FOOTREST - LEFTBRACKET, SUPPORT - FOOTREST - LEFT
-
151606-784 FOOTREST - RIGHTFOOTREST - RIGHT
-
151606-785 FOOTREST - LEFTFOOTREST - LEFT
-
168060-486 RIVETRIVET
-
170623-677 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
-
180123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
194706-824 SUPPORT, FOOTREST - RIGHTSUPPORT, FOOTREST - RIGHT
-
193706-773 SUPPORT, FOOTREST - LEFTSUPPORT, FOOTREST - LEFT
-
203606-994 END CAP, REAR BUMPER - RIGHTEND CAP, REAR BUMPER - RIGHT
-
203606-995 END CAP, REAR BUMPER - LEFTEND CAP, REAR BUMPER - LEFT
-
218060-706 RIVET - BLACKRIVET - BLACK
-
220623-562 PLUGPLUG
-
236611-688 DECAL, REFLECTOR - RIGHT - REDDECAL, REFLECTOR - RIGHT - RED
-
236611-689 DECAL, REFLECTOR - LEFT - REDDECAL, REFLECTOR - LEFT - RED
-
243706-006 BUMPER, REAR - BLACKBUMPER, REAR - BLACK
-
250123-802 WASHERWASHER
-
266606-449 SNOWFLAPSNOWFLAP
-
278060-628 RIVETRIVET
-
280621-615 DECAL, REAR TUNNELDECAL, REAR TUNNEL
-
295706-621 FLAG, SAFETY - ASSEMBLY (INC. 30-32)FLAG, SAFETY - ASSEMBLY (INC. 30-32)
-
301706-104 ...FLAG, SAFETY...FLAG, SAFETY
-
314706-643 ...MOUNTING, SAFETY FLAG - ASSEMBLY...MOUNTING, SAFETY FLAG - ASSEMBLY
-
328020-134 ...SCREW, CAP...SCREW, CAP
-
330623-301 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
341606-786 COVER, DRIVEN SPROCKETCOVER, DRIVEN SPROCKET
-
353611-754 DECAL, WARNING - COVERDECAL, WARNING - COVER
