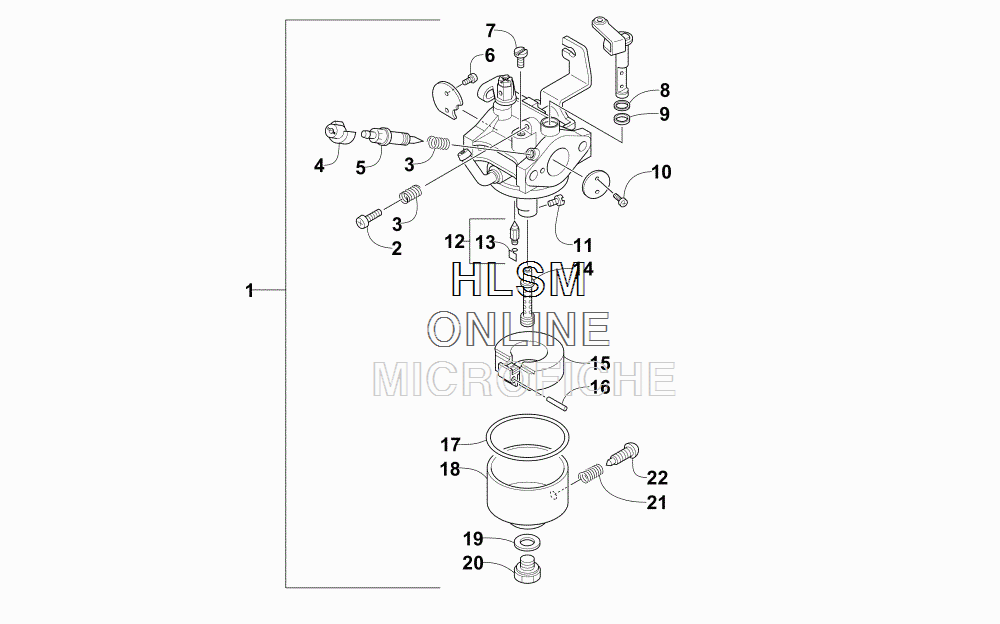

CARBURETOR ASSEMBLY для Arctic Cat ZR 120 GREEN [S2016ZRAAAUSG] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    3020-023 CARBURETOR ASSEMBLY (INC. 2-22)
    CARBURETOR ASSEMBLY (INC. 2-22)
  • 2
    3020-001 ...SCREW, THROTTLE STOP
    ...SCREW, THROTTLE STOP
  • 3
    3020-005 ...SPRING
    ...SPRING
  • 4
    3020-086 ...CAP, ADJUSTER SCREW
    ...CAP, ADJUSTER SCREW
  • 5
    3020-088 ...ADJUSTER SCREW, FUEL IDLE
    ...ADJUSTER SCREW, FUEL IDLE
  • 6
    3020-091 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 7
    3020-131 ...PILOT JET (37.5)
    ...PILOT JET (37.5)
  • 8
    3020-003 ...WASHER
    ...WASHER
  • 9
    3020-004 ...WASHER
    ...WASHER
  • 10
    3020-090 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 11
    3020-130 ...MAIN JET (77.5)
    ...MAIN JET (77.5)
  • 12
    3020-084 ...NEEDLE JET - ASSEMBLY (INC. 13)
    ...NEEDLE JET - ASSEMBLY (INC. 13)
  • 13
    3020-080 ......CLIP, RETAINING
    ......CLIP, RETAINING
  • 14
    3020-089 ...NOZZLE
    ...NOZZLE
  • 15
    3020-085 ...FLOAT
    ...FLOAT
  • 16
    3020-002 ...PIN, FLOAT
    ...PIN, FLOAT
  • 17
    3020-082 ...GASKET, FLOAT CHAMBER
    ...GASKET, FLOAT CHAMBER
  • 18
    3020-081 ...CHAMBER, FLOAT
    ...CHAMBER, FLOAT
  • 19
    3020-083 ...WASHER
    ...WASHER
  • 20
    3020-087 ...PLUG, DRAIN
    ...PLUG, DRAIN
  • 21
    3020-005 ...SPRING
    ...SPRING
  • 22
    3020-079 ...SCREW, MACHINE
    ...SCREW, MACHINE
