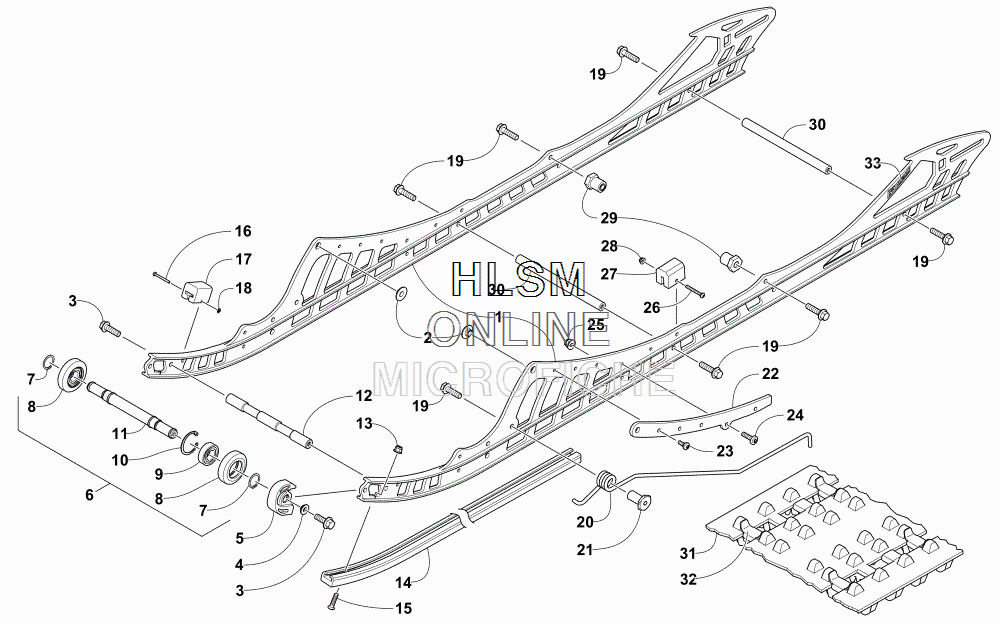

TRACK ASSEMBLY W/ SLIDE RAIL для Arctic Cat M 7000 SNO PRO 162 GREEN [S2016M7USEUSG] - 2016 года выпуска`
-
№АртикулНазвание
-
-2704-847 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
12704-802 RAIL, FORMED - WHITERAIL, FORMED - WHITE
-
23604-266 INSERT, RAILINSERT, RAIL
-
38408-831 SCREW, CAPSCREW, CAP
-
43604-928 SPACERSPACER
-
54604-117 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
62704-964 AXLE, IDLER WHEEL - ASSEMLY (INC. 7-11)AXLE, IDLER WHEEL - ASSEMLY (INC. 7-11)
-
71423-001 ...RING, RETAINING...RING, RETAINING
-
83604-844 ...WHEEL, IDLER - BLACK (INC. 9-10)...WHEEL, IDLER - BLACK (INC. 9-10)
-
93604-033 ......BEARING......BEARING
-
100623-946 ......RING, RETAINING......RING, RETAINING
-
113604-921 ...AXLE...AXLE
-
123604-630 AXLEAXLE
-
138047-366 NUT, LOCKNUT, LOCK
-
143604-716 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
150123-859 SCREW, MACHINESCREW, MACHINE
-
160123-767 RIVET, SOLIDRIVET, SOLID
-
170104-631 PAD, SHOCKPAD, SHOCK
-
180123-766 NUT, PUSHNUT, PUSH
-
198408-826 SCREW, CAPSCREW, CAP
-
201704-734 SCRATCHER, ICE - RIGHTSCRATCHER, ICE - RIGHT
-
201704-735 SCRATCHER, ICE - LEFTSCRATCHER, ICE - LEFT
-
213604-678 BUSHINGBUSHING
-
222704-613 BRACE, RAIL - WHITEBRACE, RAIL - WHITE
-
230423-538 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
248468-625 SCREW, MACHINESCREW, MACHINE
-
258427-602 NUT, LOCKNUT, LOCK
-
268470-540 SCREW, MACHINESCREW, MACHINE
-
271604-429 PAD, SHOCKPAD, SHOCK
-
288427-502 NUT, LOCKNUT, LOCK
-
293604-635 BUSHING, STOP - REAR ARMBUSHING, STOP - REAR ARM
-
303604-667 AXLEAXLE
-
312602-483 TRACK ASSEMBLY (INC. 32)TRACK ASSEMBLY (INC. 32)
-
322602-386 ...CLIP, GUIDE...CLIP, GUIDE
-
332621-930 DECAL, "FLOAT ACTION"DECAL, "FLOAT ACTION"
