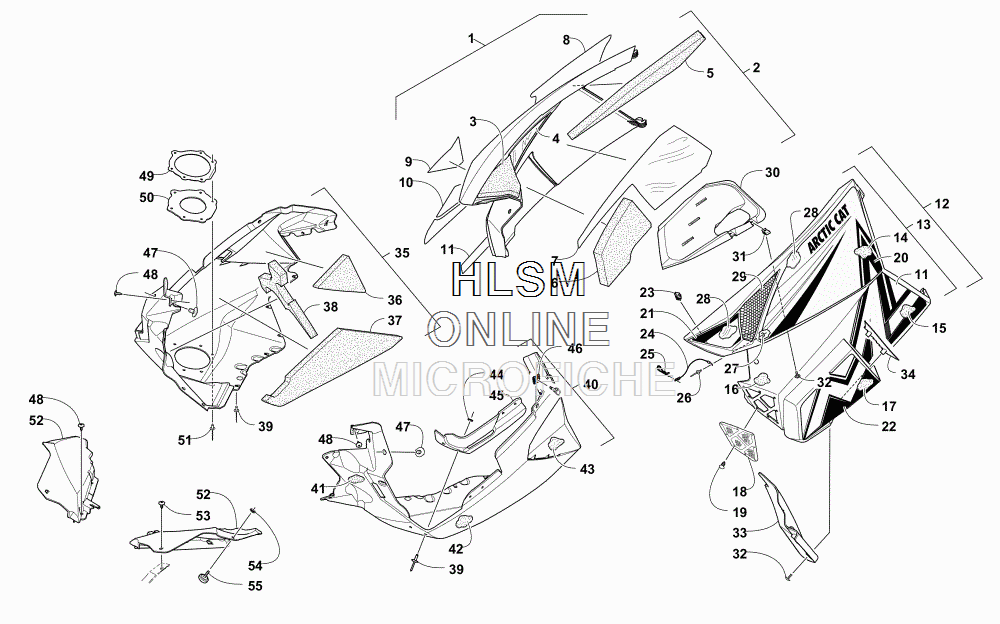

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat M 7000 SNO PRO 162 GREEN [S2016M7USEUSG] - 2016 года выпуска
-
№АртикулНазвание
-
14718-634 PANEL, SIDE - RIGHT W/DECALS - GREEN (INC. 2-10 AND ONE NO. 11, 24-27)PANEL, SIDE - RIGHT W/DECALS - GREEN (INC. 2-10 AND ONE NO. 11, 24-27)
-
23718-860 ...PANEL, SIDE - W/O DECALS - RIGHT - GREEN (INC. 3-7, 24-27)...PANEL, SIDE - W/O DECALS - RIGHT - GREEN (INC. 3-7, 24-27)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE - MIDDLE - RIGHT......FOIL, PROTECTIVE - MIDDLE - RIGHT
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
76606-416 ......FOIL, PROTECTIVE - LOWER - REAR RIGHT......FOIL, PROTECTIVE - LOWER - REAR RIGHT
-
82621-490 ...DECAL, SIDE PANEL - UPPER REAR - RIGHT - GREEN...DECAL, SIDE PANEL - UPPER REAR - RIGHT - GREEN
-
92621-494 ...DECAL, SIDE PANEL - UPPER FRONT - RIGHT - GREEN...DECAL, SIDE PANEL - UPPER FRONT - RIGHT - GREEN
-
102621-496 ...DECAL, SIDE PANEL - LOWER FORWARD - RIGHT - GREEN...DECAL, SIDE PANEL - LOWER FORWARD - RIGHT - GREEN
-
112621-498 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT - GREEN...DECAL, SIDE PANEL - LOWER REAR - RIGHT - GREEN
-
112621-499 ...DECAL, SIDE PANEL - LOWER REAR - LEFT - GREEN...DECAL, SIDE PANEL - LOWER REAR - LEFT - GREEN
-
124718-645 PANEL, SIDE - LEFT W/DECALS - GREEN (INC. ONE NO. 11 AND 13-27)PANEL, SIDE - LEFT W/DECALS - GREEN (INC. ONE NO. 11 AND 13-27)
-
133718-859 ...PANEL, SIDE - W/O DECALS - LEFT - GREEN (INC. 14-19, 23-27)...PANEL, SIDE - W/O DECALS - LEFT - GREEN (INC. 14-19, 23-27)
-
140617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
150617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
160617-631 ......FOAM, SIDE PANEL - CENTER FRONT - LEFT......FOAM, SIDE PANEL - CENTER FRONT - LEFT
-
170617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
182602-704 ......SCREEN, VENT......SCREEN, VENT
-
190623-269 ......CLIP, RETAINER......CLIP, RETAINER
-
202621-491 ...DECAL, SIDE PANEL - UPPER REAR - LEFT - GREEN...DECAL, SIDE PANEL - UPPER REAR - LEFT - GREEN
-
212621-495 ...DECAL, SIDE PANEL - UPPER FRONT - LEFT - GREEN...DECAL, SIDE PANEL - UPPER FRONT - LEFT - GREEN
-
222621-497 ...DECAL, SIDE PANEL - LOWER FORWARD - LEFT - GREEN...DECAL, SIDE PANEL - LOWER FORWARD - LEFT - GREEN
-
231623-637 ...CLIP, U-NUT...CLIP, U-NUT
-
240607-447 ...CABLE...CABLE
-
250605-283 ...CLIP, HAIRPIN...CLIP, HAIRPIN
-
268060-486 ...RIVET...RIVET
-
278050-127 ...WASHER...WASHER
-
280619-206 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
295706-531 SCREEN, INTAKESCREEN, INTAKE
-
301702-369 DUCT, AIR - CLUTCHDUCT, AIR - CLUTCH
-
311623-030 CLIP, U-NUTCLIP, U-NUT
-
320623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
332602-711 DEFLECTOR, AIRDEFLECTOR, AIR
-
342602-703 RETAINER, AIR DEFLECTORRETAINER, AIR DEFLECTOR
-
353718-788 PLATE, SKID - W/O DECALS - RIGHT - BLACK (INC. 36-38)PLATE, SKID - W/O DECALS - RIGHT - BLACK (INC. 36-38)
-
360617-640 ...FOAM, SKID PLATE - UPPER REAR - RIGHT...FOAM, SKID PLATE - UPPER REAR - RIGHT
-
370617-638 ...FOAM, SKID PLATE - CENTER FRONT - RIGHT...FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
380617-636 ...FOAM, SKID PLATE - UPPER FRONT - RIGHT...FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
398061-708 RIVETRIVET
-
403718-789 PLATE, SKID - W/O DECALS - LEFT - BLACK (INC. 39, 41-45)PLATE, SKID - W/O DECALS - LEFT - BLACK (INC. 39, 41-45)
-
410617-637 ...FOAM, SKID PLATE - UPPER FRONT - LEFT...FOAM, SKID PLATE - UPPER FRONT - LEFT
-
420617-639 ...FOAM, SKID PLATE - CENTER FRONT - LEFT...FOAM, SKID PLATE - CENTER FRONT - LEFT
-
430617-641 ...FOAM, SKID PLATE - UPPER REAR - LEFT...FOAM, SKID PLATE - UPPER REAR - LEFT
-
440123-802 WASHERWASHER
-
456606-613 PANEL, REINFORCEMENTPANEL, REINFORCEMENT
-
462623-005 CLIP, RETAININGCLIP, RETAINING
-
476606-592 PIN, RETAININGPIN, RETAINING
-
481623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
492612-685 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
502612-964 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
518061-508 RIVETRIVET
-
526606-342 FASCIA, FRONT - RIGHT - BLACKFASCIA, FRONT - RIGHT - BLACK
-
526606-579 FASCIA, FRONT - LEFT - BLACKFASCIA, FRONT - LEFT - BLACK
-
530623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
542623-001 NUT, PUSHNUT, PUSH
-
551623-999 SCREW, THUMBSCREW, THUMB
