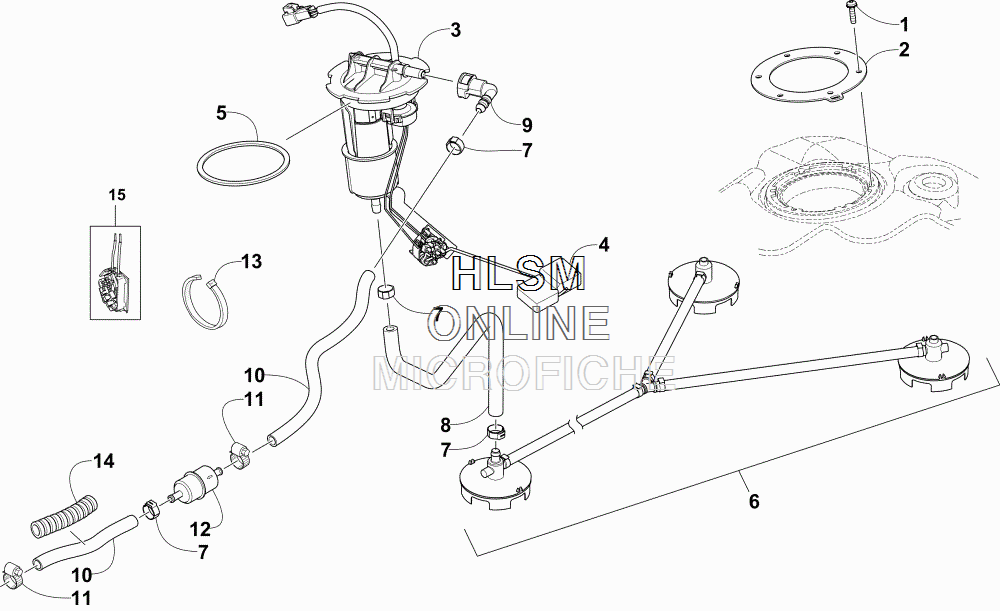

FUEL PUMP ASSEMBLY для Arctic Cat M 6000 153 GREEN [S2016M6DE3USG] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    0423-898 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 2
    2670-042 PLATE, RETAINING - FUEL PUMP
    PLATE, RETAINING - FUEL PUMP
  • 3
    2670-358 PUMP, FUEL - ASSEMBLY (INC. 4)
    PUMP, FUEL - ASSEMBLY (INC. 4)
  • 4
    2670-235 ...FLOAT
    ...FLOAT
  • 5
    0470-838 SEAL
    SEAL
  • 6
    2670-377 PICKUP, FUEL - ASSEMBLY
    PICKUP, FUEL - ASSEMBLY
  • 7
    0610-563 CLAMP, HOSE
    CLAMP, HOSE
  • 8
    2670-442 HOSE, FUEL PUMP/PICKUP
    HOSE, FUEL PUMP/PICKUP
  • 9
    1670-878 FITTING, QUICK-CONNECT
    FITTING, QUICK-CONNECT
  • 10
    0610-971 HOSE, FUEL - IN TANK - 10 FT
    HOSE, FUEL - IN TANK - 10 FT
  • 11
    0623-373 CLAMP, HOSE
    CLAMP, HOSE
  • 12
    1670-825 FILTER, FUEL
    FILTER, FUEL
  • 13
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 13
    0123-903 TIE, CABLE - 11.5 IN.
    TIE, CABLE - 11.5 IN.
  • 14
    1619-349 LOOM, 5/8" NON-SLIT - 5 FT
    LOOM, 5/8" NON-SLIT - 5 FT
  • 15
    1770-170 FUEL LEVEL SENSOR KIT
    FUEL LEVEL SENSOR KIT
