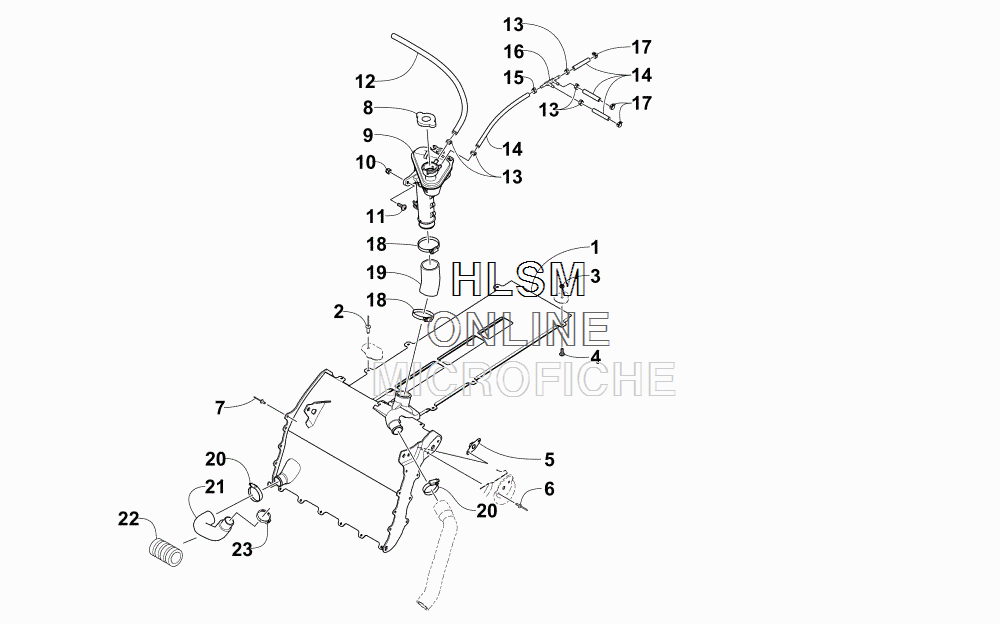

COOLING ASSEMBLY для Arctic Cat M 6000 153 GREEN [S2016M6DE3USG] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    0713-110 EXCHANGER, HEAT
    EXCHANGER, HEAT
  • 2
    8060-702 RIVET - BLACK
    RIVET - BLACK
  • 3
    8422-502 NUT, LOCK
    NUT, LOCK
  • 4
    8476-516 SCREW, MACHINE
    SCREW, MACHINE
  • 5
    0608-631 PLATE, RETAINING
    PLATE, RETAINING
  • 6
    8060-708 RIVET - BLACK
    RIVET - BLACK
  • 7
    8060-706 RIVET - BLACK
    RIVET - BLACK
  • 8
    2606-284 CAP
    CAP
  • 9
    0613-135 TANK, COOLANT
    TANK, COOLANT
  • 10
    8422-602 NUT, LOCK
    NUT, LOCK
  • 11
    8476-625 SCREW, MACHINE
    SCREW, MACHINE
  • 12
    0610-692 HOSE - GREEN - 25 FT
    HOSE - GREEN - 25 FT
  • 12
    0610-693 HOSE - GREEN - 100 FT
    HOSE - GREEN - 100 FT
  • 13
    1623-655 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    0610-881 HOSE - 26 FT
    HOSE - 26 FT
  • 15
    1623-619 CLAMP, HOSE
    CLAMP, HOSE
  • 16
    0610-717 FITTING, DOUBLE-T
    FITTING, DOUBLE-T
  • 17
    0623-063 CLAMP, HOSE
    CLAMP, HOSE
  • 18
    0423-317 CLAMP
    CLAMP
  • 19
    0610-936 HOSE, COOLANT - FILLER NECK/HEAT EXCHANGER
    HOSE, COOLANT - FILLER NECK/HEAT EXCHANGER
  • 20
    2623-088 CLAMP, HOSE
    CLAMP, HOSE
  • 21
    0610-864 HOSE, COOLANT - ENGINE/HEAT EXCHANGER
    HOSE, COOLANT - ENGINE/HEAT EXCHANGER
  • 22
    0619-619 CONDUIT, FLEXIBLE - 4 IN.
    CONDUIT, FLEXIBLE - 4 IN.
  • 23
    1623-656 CLAMP, HOSE
    CLAMP, HOSE
