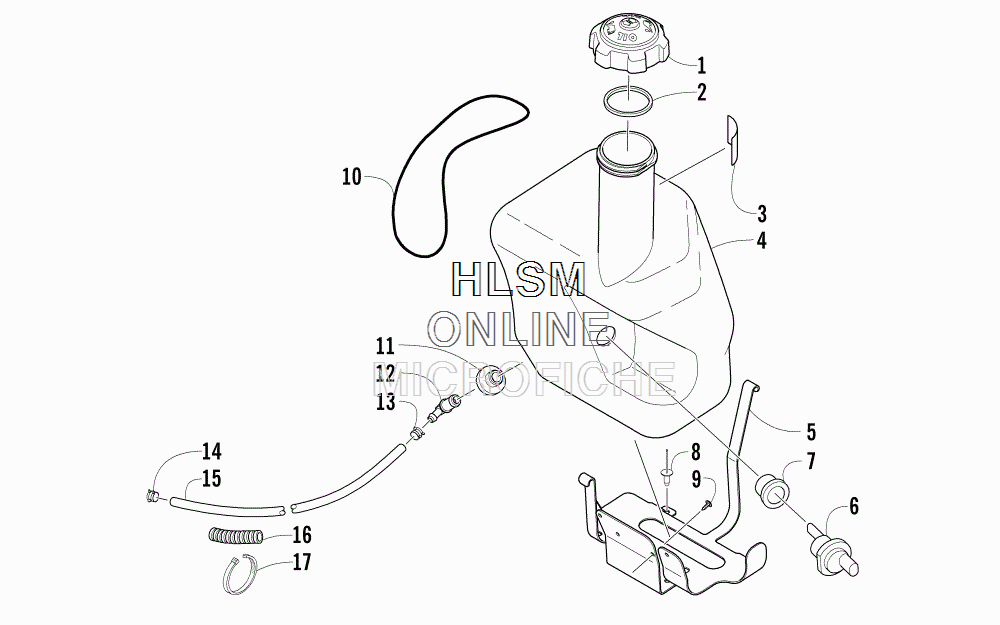

OIL TANK ASSEMBLY для Arctic Cat LYNX 2000 BLACK [S2016LXDFCUSB] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1670-365 CAP, VENTED - OIL (INC. 2)
    CAP, VENTED - OIL (INC. 2)
  • 2
    0109-733 ...SEAL, GAS TANK CAP
    ...SEAL, GAS TANK CAP
  • 3
    1611-564 DECAL, OIL TANK
    DECAL, OIL TANK
  • 4
    1670-922 TANK, OIL
    TANK, OIL
  • 5
    3706-798 BRACKET, MOUNTING - OIL TANK
    BRACKET, MOUNTING - OIL TANK
  • 6
    0609-915 SWITCH, LEVEL - OIL (INC. 7)
    SWITCH, LEVEL - OIL (INC. 7)
  • 7
    0609-924 ...GROMMET
    ...GROMMET
  • 8
    8060-686 RIVET
    RIVET
  • 9
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 10
    1623-693 O-RING
    O-RING
  • 11
    1670-325 GROMMET
    GROMMET
  • 12
    1670-494 FITTING, OIL TANK
    FITTING, OIL TANK
  • 13
    1623-042 CLAMP, 10MM
    CLAMP, 10MM
  • 14
    1623-351 CLAMP, HOSE
    CLAMP, HOSE
  • 15
    6101-009 HOSE - 50 FT
    HOSE - 50 FT
  • 15
    6101-001 HOSE - 100 FT
    HOSE - 100 FT
  • 16
    0716-558 CONDUIT, PROTECTIVE - 10 FT
    CONDUIT, PROTECTIVE - 10 FT
  • 17
    0123-811 TIE, CABLE - 4 IN.
    TIE, CABLE - 4 IN.
