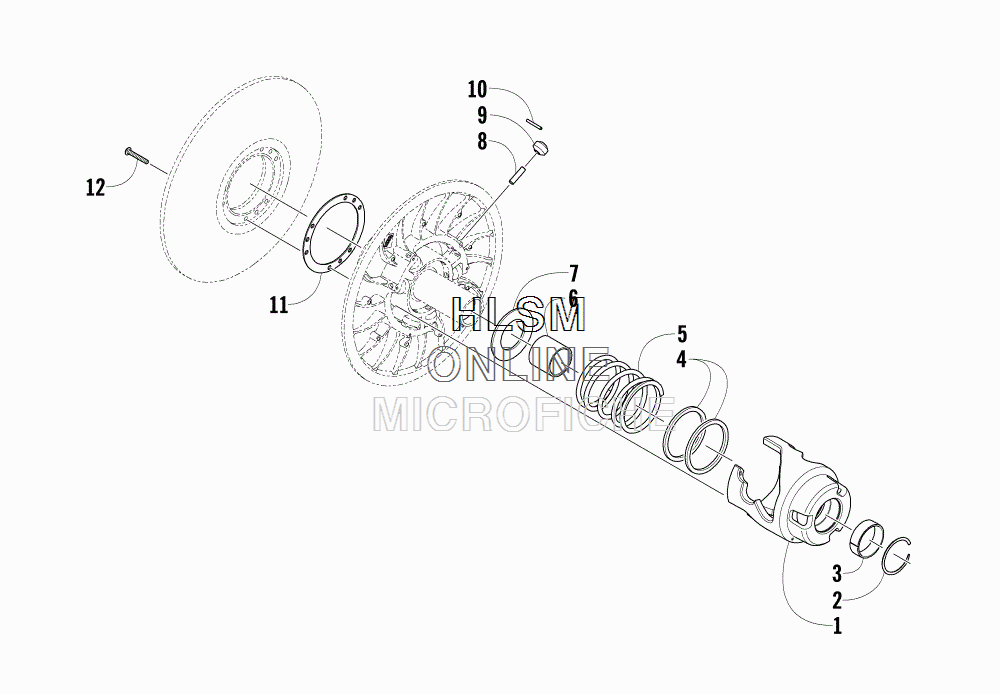

DRIVEN CLUTCH для Arctic Cat LYNX 2000 BLACK [S2016LXDFCUSB] - 2016 года выпуска

  • №
    Артикул
    Название
  • -
    0726-311 CLUTCH, DRIVEN
    CLUTCH, DRIVEN
  • 1
    0748-714 CAM, DRIVEN 44°/40° - W/BEARING - ASSEMBLY (INC. 2-3)
    CAM, DRIVEN 44°/40° - W/BEARING - ASSEMBLY (INC. 2-3)
  • 1
    0748-700 CAM, DRIVEN 36° (OVER 5,000 FT ALT.) (INC. 2-3)
    CAM, DRIVEN 36° (OVER 5,000 FT ALT.) (INC. 2-3)
  • 2
    0648-433 ...RING, SNAP
    ...RING, SNAP
  • 3
    0648-009 ...BEARING, DRIVEN CLUTCH
    ...BEARING, DRIVEN CLUTCH
  • 4
    0648-713 SEAT, SPRING
    SEAT, SPRING
  • 5
    0648-774 SPRING, DRIVEN CLUTCH - ORANGE
    SPRING, DRIVEN CLUTCH - ORANGE
  • 6
    0648-806 SPACER
    SPACER
  • 7
    0648-453 SEAT, SPRING - DRIVEN
    SEAT, SPRING - DRIVEN
  • 8
    0648-097 PIN, ROLLER BEARING
    PIN, ROLLER BEARING
  • 9
    0648-139 ROLLER, CAM
    ROLLER, CAM
  • 10
    8070-224 PIN, SPRING
    PIN, SPRING
  • 11
    0637-322 UPDATE KIT, TORQUE BRACKET RETAINER (INC. 12)
    UPDATE KIT, TORQUE BRACKET RETAINER (INC. 12)
  • 12
    1623-517 ...SCREW, MACHINE - TSBH 10-24 X 1.25 W/2353
    ...SCREW, MACHINE - TSBH 10-24 X 1.25 W/2353
