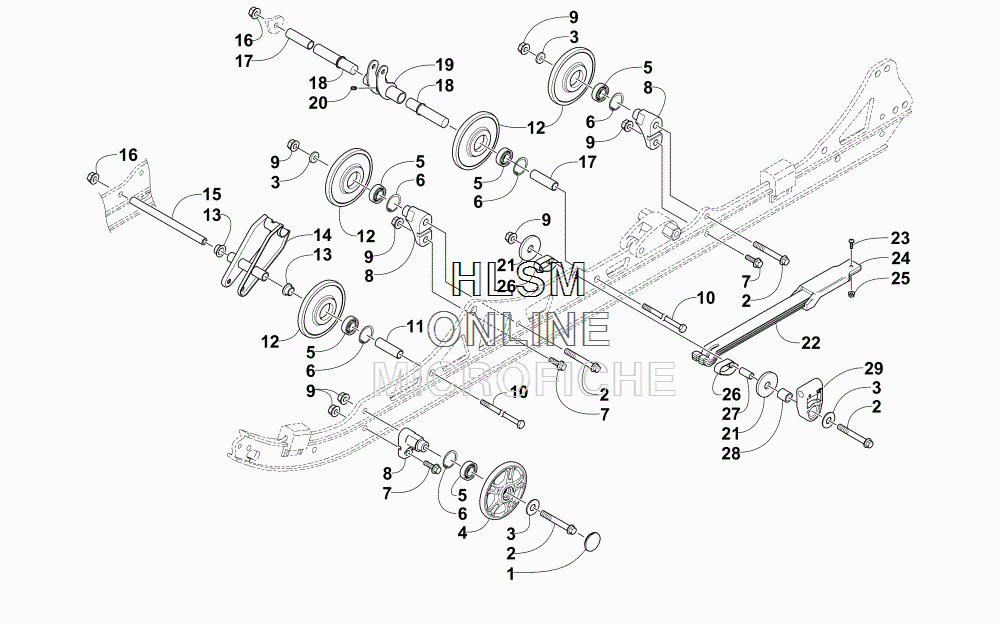

IDLER WHEEL ASSEMBLY для Arctic Cat BEARCAT 2000 XT BLUE [S2016BCDWTUSL] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1604-952 CAP, IDLER WHEEL
    CAP, IDLER WHEEL
  • 2
    8408-880 SCREW, CAP
    SCREW, CAP
  • 3
    8450-133 WASHER
    WASHER
  • 4
    3604-454 WHEEL, IDLER - BLUE (INC. 5-6)
    WHEEL, IDLER - BLUE (INC. 5-6)
  • 5
    3604-033 ...BEARING
    ...BEARING
  • 6
    0623-946 ...RING, RETAINING
    ...RING, RETAINING
  • 7
    8408-830 SCREW, CAP
    SCREW, CAP
  • 8
    3604-004 BLOCK, MOUNTING - IDLER WHEEL
    BLOCK, MOUNTING - IDLER WHEEL
  • 9
    8427-802 NUT, LOCK
    NUT, LOCK
  • 10
    1623-756 SCREW, CAP
    SCREW, CAP
  • 11
    3604-432 SPACER
    SPACER
  • 12
    3604-807 WHEEL, IDLER - BLACK (INC. 5-6)
    WHEEL, IDLER - BLACK (INC. 5-6)
  • 13
    3604-430 SPACER
    SPACER
  • 14
    1704-770 BRACKET, MOUNTING - FRONT SHOCK
    BRACKET, MOUNTING - FRONT SHOCK
  • 15
    3604-429 AXLE
    AXLE
  • 16
    8427-002 NUT, LOCK
    NUT, LOCK
  • 17
    3604-501 SPACER
    SPACER
  • 18
    3604-502 AXLE
    AXLE
  • 19
    1704-674 PIVOT, SHOCK (INC. 20)
    PIVOT, SHOCK (INC. 20)
  • 20
    1623-010 ...FITTING, GREASE
    ...FITTING, GREASE
  • 21
    0623-746 WASHER
    WASHER
  • 22
    1704-279 SPRING, OVERLOAD - ASSEMBLY (INC. 23-26)
    SPRING, OVERLOAD - ASSEMBLY (INC. 23-26)
  • 23
    0623-121 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 24
    2604-788 ...BLOCK, WEAR
    ...BLOCK, WEAR
  • 25
    8041-276 ...NUT, LOCK
    ...NUT, LOCK
  • 26
    1604-412 ...CLIP, RETAINING
    ...CLIP, RETAINING
  • 27
    0604-739 BUSHING, OVERLOAD SPRING
    BUSHING, OVERLOAD SPRING
  • 28
    1604-430 SPACER, SPRING SLIDE
    SPACER, SPRING SLIDE
  • 29
    2604-516 SLIDE, SPRING
    SLIDE, SPRING
