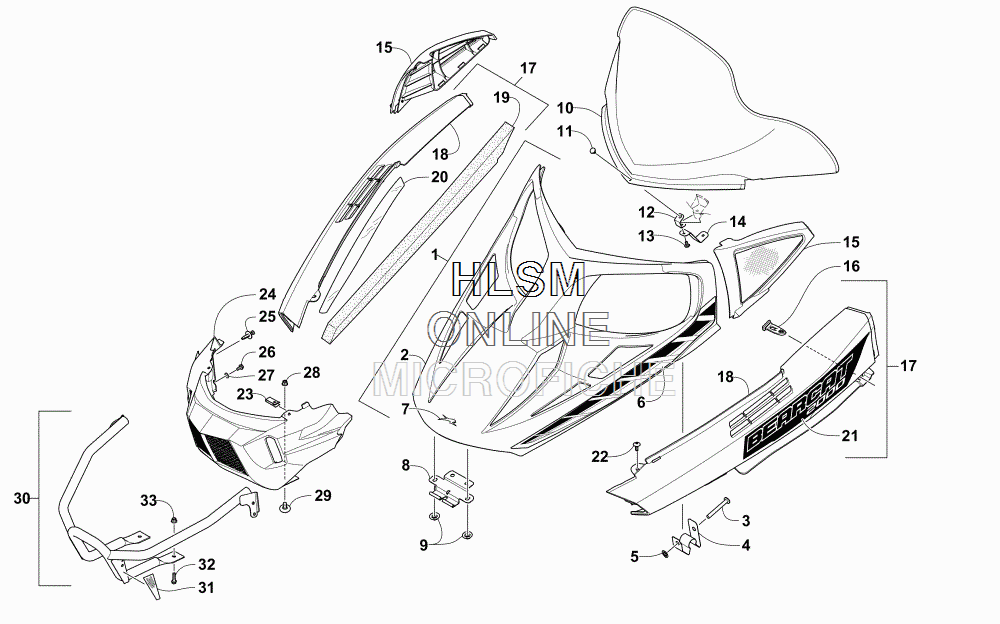

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat BEARCAT 2000 XT BLUE [S2016BCDWTUSL] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-854 HOOD W/DECALS - WHITE (INC. 2-7)
    HOOD W/DECALS - WHITE (INC. 2-7)
  • 2
    7800-956 ...HOOD W/O DECALS - WHITE (INC. 3-5)
    ...HOOD W/O DECALS - WHITE (INC. 3-5)
  • 3
    1623-610 ......PIN, RETAINING
    ......PIN, RETAINING
  • 4
    5706-084 ......CLIP, HOOD HOLD-DOWN - RIGHT
    ......CLIP, HOOD HOLD-DOWN - RIGHT
  • 4
    5706-085 ......CLIP, HOOD HOLD-DOWN - LEFT
    ......CLIP, HOOD HOLD-DOWN - LEFT
  • 5
    1623-409 ......NUT, PUSH
    ......NUT, PUSH
  • 6
    2621-780 ...DECAL, HOOD - RIGHT
    ...DECAL, HOOD - RIGHT
  • 6
    2621-781 ...DECAL, HOOD - LEFT
    ...DECAL, HOOD - LEFT
  • 7
    4411-479 ...DECAL, AIRCAT
    ...DECAL, AIRCAT
  • 8
    6606-027 BRACKET, HINGE
    BRACKET, HINGE
  • 9
    1623-469 NUT, STAMPED
    NUT, STAMPED
  • 10
    5606-962 WINDSHIELD, HIGH - TINT
    WINDSHIELD, HIGH - TINT
  • 11
    1623-677 RIVET, PLASTIC
    RIVET, PLASTIC
  • 12
    4606-961 BRACKET, WINDSHIELD - HOLD-DOWN
    BRACKET, WINDSHIELD - HOLD-DOWN
  • 13
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    5606-277 BRACKET, WINDSHIELD
    BRACKET, WINDSHIELD
  • 15
    5606-940 BEZEL, INTAKE - RIGHT - WHITE
    BEZEL, INTAKE - RIGHT - WHITE
  • 15
    5606-941 BEZEL, INTAKE - LEFT - WHITE
    BEZEL, INTAKE - LEFT - WHITE
  • 16
    4606-926 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 17
    4718-852 SPAR, FRONT - W/DECALS - RIGHT - BLUE (INC. 18-21)
    SPAR, FRONT - W/DECALS - RIGHT - BLUE (INC. 18-21)
  • 17
    4718-853 SPAR, FRONT - W/DECALS - LEFT - BLUE (INC. 18-19 AND 21)
    SPAR, FRONT - W/DECALS - LEFT - BLUE (INC. 18-19 AND 21)
  • 18
    3718-886 ...SPAR, FRONT - W/O DECALS - RIGHT - BLUE (INC. 19)
    ...SPAR, FRONT - W/O DECALS - RIGHT - BLUE (INC. 19)
  • 18
    3718-887 ...SPAR, FRONT - W/O DECALS - LEFT - BLUE (INC. 19)
    ...SPAR, FRONT - W/O DECALS - LEFT - BLUE (INC. 19)
  • 19
    0617-656 ......FOAM, FRONT SPAR - RIGHT
    ......FOAM, FRONT SPAR - RIGHT
  • 19
    0617-657 ......FOAM, FRONT SPAR - LEFT
    ......FOAM, FRONT SPAR - LEFT
  • 20
    4606-934 FOIL, SPAR - RIGHT
    FOIL, SPAR - RIGHT
  • 21
    2621-788 DECAL, FRONT SPAR - RIGHT
    DECAL, FRONT SPAR - RIGHT
  • 21
    2621-789 DECAL, FRONT SPAR - LEFT
    DECAL, FRONT SPAR - LEFT
  • 22
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 23
    1623-030 CLIP, U-NUT
    CLIP, U-NUT
  • 24
    5606-725 FASCIA, FRONT - BLUE
    FASCIA, FRONT - BLUE
  • 25
    0623-362 CLIP, RETAINING
    CLIP, RETAINING
  • 26
    0623-966 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 27
    8053-242 WASHER, EXTERNAL TOOTH LOCK
    WASHER, EXTERNAL TOOTH LOCK
  • 28
    8427-602 NUT, LOCK
    NUT, LOCK
  • 29
    1623-775 SCREW, SHOULDER
    SCREW, SHOULDER
  • 30
    4706-961 BUMPER, FRONT - BLACK (INC. 31)
    BUMPER, FRONT - BLACK (INC. 31)
  • 31
    9611-386 ...DECAL, REFLECTOR - RIGHT - AMBER
    ...DECAL, REFLECTOR - RIGHT - AMBER
  • 31
    9611-387 ...DECAL, REFLECTOR - LEFT - AMBER
    ...DECAL, REFLECTOR - LEFT - AMBER
  • 32
    8408-025 SCREW, CAP
    SCREW, CAP
  • 33
    8427-002 NUT, LOCK
    NUT, LOCK
