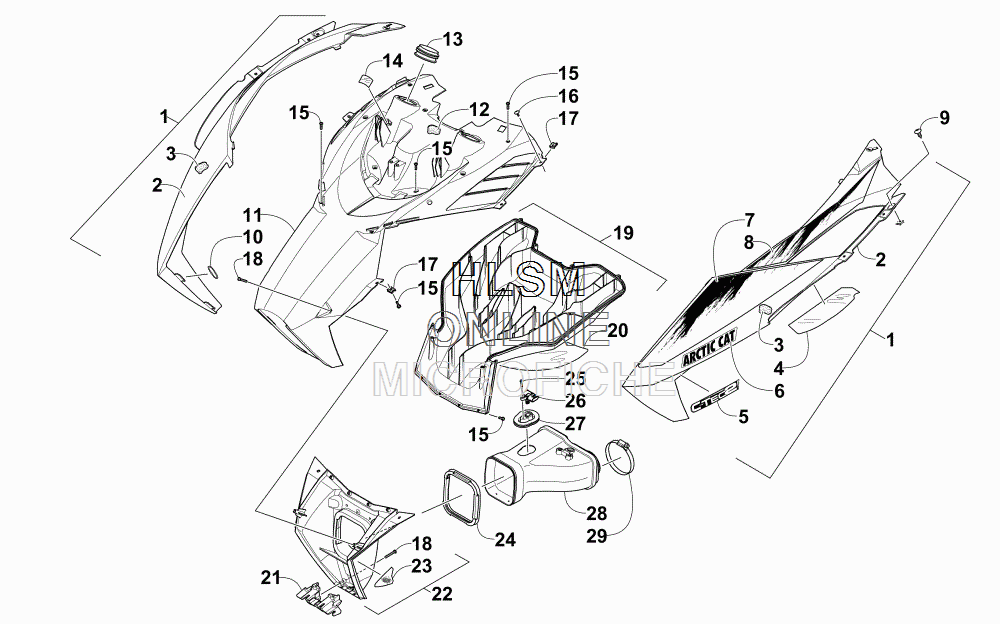

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat ZR 6000 SNO PRO ES (ORANGE) [S2015ZRDSPUSO] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-368 HOOD W/DECALS - RIGHT - WHITE (INC. 2-3, ONE NO. 5, ONE NO. 6, AND 7-8)
    HOOD W/DECALS - RIGHT - WHITE (INC. 2-3, ONE NO. 5, ONE NO. 6, AND 7-8)
  • 2
    3718-612 ...HOOD W/O DECALS - RIGHT - WHITE (INC. 3)
    ...HOOD W/O DECALS - RIGHT - WHITE (INC. 3)
  • 3
    0617-646 ......FOAM, HOOD - RIGHT
    ......FOAM, HOOD - RIGHT
  • 7
    1621-462 ...DECAL, HOOD - FRONT RIGHT
    ...DECAL, HOOD - FRONT RIGHT
  • 8
    1621-464 ...DECAL, HOOD - REAR RIGHT
    ...DECAL, HOOD - REAR RIGHT
  • 1
    4718-369 HOOD W/DECALS - LEFT - WHITE (INC. 2-4, ONE NO. 5, ONE NO. 6, AND 7-8)
    HOOD W/DECALS - LEFT - WHITE (INC. 2-4, ONE NO. 5, ONE NO. 6, AND 7-8)
  • 2
    3718-613 ...HOOD W/O DECALS - LEFT - WHITE (INC. 3-4)
    ...HOOD W/O DECALS - LEFT - WHITE (INC. 3-4)
  • 3
    0617-647 ......FOAM, HOOD - LEFT
    ......FOAM, HOOD - LEFT
  • 4
    6606-407 ......FOIL, PROTECTIVE
    ......FOIL, PROTECTIVE
  • 5
    0621-906 ...DECAL, HOOD - "C-TEC"
    ...DECAL, HOOD - "C-TEC"
  • 6
    0621-732 ...DECAL, HOOD - "ARCTIC CAT"
    ...DECAL, HOOD - "ARCTIC CAT"
  • 7
    1621-463 ...DECAL, HOOD - FRONT LEFT
    ...DECAL, HOOD - FRONT LEFT
  • 8
    1621-465 ...DECAL, HOOD - REAR LEFT
    ...DECAL, HOOD - REAR LEFT
  • 9
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 10
    1623-960 O-RING
    O-RING
  • 11
    5706-356 PLENUM, INTAKE - UPPER (INC. 12)
    PLENUM, INTAKE - UPPER (INC. 12)
  • 12
    0617-648 ...FOAM, INTAKE
    ...FOAM, INTAKE
  • 13
    6606-386 BOOT, INTAKE
    BOOT, INTAKE
  • 14
    2606-007 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 15
    1623-933 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 16
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 17
    1623-939 CLIP, U-NUT
    CLIP, U-NUT
  • 18
    1623-929 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 19
    5706-358 PLENUM, INTAKE - LOWER REAR (INC. 20)
    PLENUM, INTAKE - LOWER REAR (INC. 20)
  • 20
    6606-406 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 21
    6606-822 RETAINER, PLENUM
    RETAINER, PLENUM
  • 22
    5706-990 PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 23)
    PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 23)
  • 23
    0621-989 ...DECAL, REFLECTOR - AMBER
    ...DECAL, REFLECTOR - AMBER
  • 24
    0617-624 ADAPTER, BOOT
    ADAPTER, BOOT
  • 25
    2623-016 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 26
    0824-052 SENSOR, AIR TEMPERATURE
    SENSOR, AIR TEMPERATURE
  • 27
    2670-444 BOOT
    BOOT
  • 28
    1770-056 BOOT, INTAKE
    BOOT, INTAKE
  • 29
    0423-018 CLAMP, HOSE
    CLAMP, HOSE
