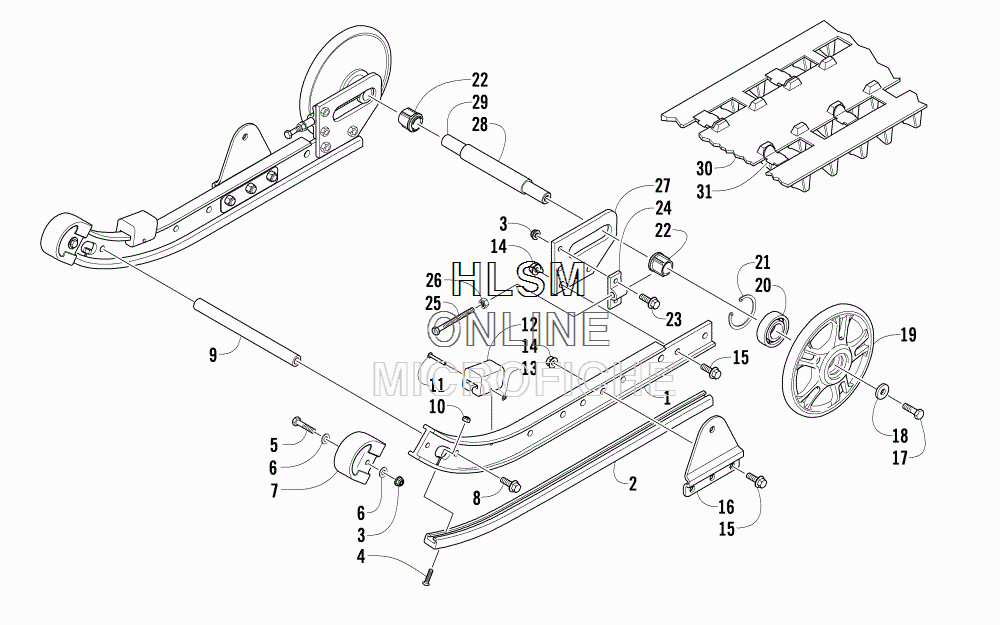

SLIDE RAIL- IDLER WHEELS- AND TRACK ASSEMBLY для Arctic Cat ZR 120 (RUSSIAN) (BLACK) [S2015ZRAAARUB] - 2015 года выпуска`

№

Артикул

Название
-

2704-442 COMPLETE SKID FRAME ASSEMBLY

COMPLETE SKID FRAME ASSEMBLY

123 550 ₽
1

1604-705 RAIL, FORMED

RAIL, FORMED

10 810 ₽
2

1604-568 WEARSTRIP (BLACK)

WEARSTRIP (BLACK)

3 530 ₽
3

8047-366 NUT,HEX FLG-NY LOCK 1/4-20 GR F Z & Y

NUT,HEX FLG-NY LOCK 1/4-20 GR F Z & Y

60 ₽
4

0123-859 SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z & Y

SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z & Y

170 ₽
5

8002-043 SCREW,CAP-HH 1/4-20 X1.125 G5 Z & Y

SCREW,CAP-HH 1/4-20 X1.125 G5 Z & Y

110 ₽
6

8050-217 WASHER,FLAT- 1/4 X .625 X .065 Z & Y

WASHER,FLAT- 1/4 X .625 X .065 Z & Y

20 ₽
7

0604-231 NOSE PIECE, SLIDE RAIL - BLACK

NOSE PIECE, SLIDE RAIL - BLACK

2 280 ₽
8

1623-566 SCREW,CAP-HFH 5/16-18 X0.875 G5 W/2353

SCREW,CAP-HFH 5/16-18 X0.875 G5 W/2353

250 ₽
9

1604-566 AXLE, CROSS-BRACE

AXLE, CROSS-BRACE

3 110 ₽
10

8041-366 NUT, HEX - THIN LOCK

NUT, HEX - THIN LOCK

40 ₽
11

0123-767 RIVET,SOLID-1/8 X 1.50

RIVET,SOLID-1/8 X 1.50

150 ₽
12

0104-631 PAD,SHOCK-RUBBER

PAD,SHOCK-RUBBER

920 ₽
13

0423-090 NUT,PRESS ON (PUSHNUT)-1/8 STUD

NUT,PRESS ON (PUSHNUT)-1/8 STUD

60 ₽
14

8047-426 NUT, HEX - FLANGE - NY LOCK

NUT, HEX - FLANGE - NY LOCK

110 ₽
15

8020-131 SCREW,CAP-HFH 5/16-18 X0.875 G5 Z & Y

SCREW,CAP-HFH 5/16-18 X0.875 G5 Z & Y

230 ₽
16

0704-896 BRACKET, SUPPORT - FRONT ARM - PAINTED (BLACK)

BRACKET, SUPPORT - FRONT ARM - PAINTED (BLACK)

2 910 ₽
17

1623-427 SCREW,CAP-HFH 3/8-16X1.000 W/2353

SCREW,CAP-HFH 3/8-16X1.000 W/2353

270 ₽
18

0623-664 WASHER,FLAT 1.00X.390X.164 Z & Y

WASHER,FLAT 1.00X.390X.164 Z & Y

190 ₽
19

3604-299 WHEEL, IDLER - WHITE (INC. 20-21)

WHEEL, IDLER - WHITE (INC. 20-21)

7 900 ₽
20

3604-033 ...BEARING,WHL-NSK CHINA 6004-W/ENS GREASE

...BEARING,WHL-NSK CHINA 6004-W/ENS GREASE

3 110 ₽
21

0623-946 ...RING,INTERNAL RETAINING-#165

...RING,INTERNAL RETAINING-#165

310 ₽
22

3604-503 BUSHING, ADJUSTER SPACER, REAR WHEEL-OUTER

BUSHING, ADJUSTER SPACER, REAR WHEEL-OUTER

690 ₽
23

8020-040 SCREW,CAP-HFH 1/4-20 X 0.750 Z & Y

SCREW,CAP-HFH 1/4-20 X 0.750 Z & Y

270 ₽
24

0604-206 ADJUSTER, TRACK

ADJUSTER, TRACK

2 070 ₽
25

0124-310 SCREW, CAP HHCS 3/8-16X4.0 THREADED GR5 Z & Y

SCREW, CAP HHCS 3/8-16X4.0 THREADED GR5 Z & Y

380 ₽
26

8042-486 NUT,3/8-16 HEX-REG-GR5 Z & Y

NUT,3/8-16 HEX-REG-GR5 Z & Y

40 ₽
27

3604-543 HOUSING, AXLE - REAR

HOUSING, AXLE - REAR

4 780 ₽
28

3604-541 SPACER,REAR WHEEL- 5.41" LG

SPACER,REAR WHEEL- 5.41" LG

3 320 ₽
29

3604-542 AXLE, REAR

AXLE, REAR

5 400 ₽
30

2602-476 TRACK - 2.125 X 10.00 X 0.688 (INC. 31)

TRACK - 2.125 X 10.00 X 0.688 (INC. 31)

76 120 ₽
31

1602-079 ...CLIP, GUIDE

...CLIP, GUIDE

1 660 ₽
