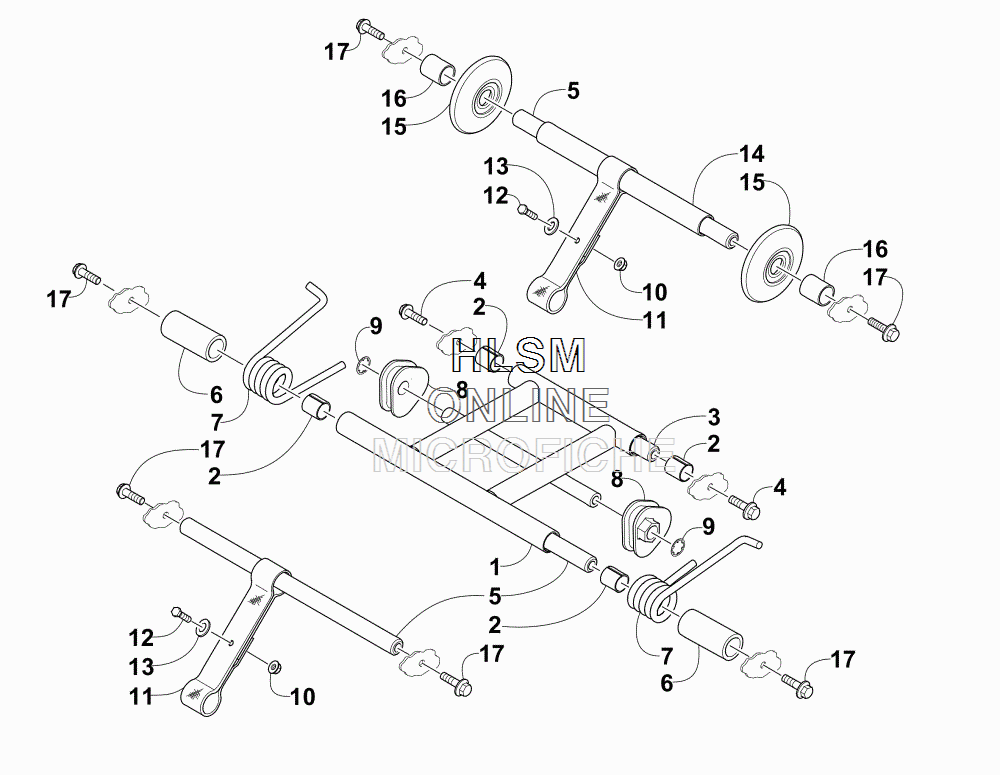

REAR SUSPENSION ARM ASSEMBLY для Arctic Cat ZR 120 (INTERNATIONAL) (BLACK) [S2015ZRAAAOSB] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    2704-016 ARM, REAR SUSPENSION (INC. 2)
    ARM, REAR SUSPENSION (INC. 2)
  • 2
    0603-083 ...BEARING,GARLOCK 10DU12
    ...BEARING,GARLOCK 10DU12
  • 3
    3604-606 AXLE,ARM-LOWER
    AXLE,ARM-LOWER
  • 4
    1623-566 SCREW,CAP-HFH 5/16-18 X0.875 G5 W/2353
    SCREW,CAP-HFH 5/16-18 X0.875 G5 W/2353
  • 5
    3604-605 AXLE, IDLER
    AXLE, IDLER
  • 6
    1604-715 SLEEVE, SPRING
    SLEEVE, SPRING
  • 7
    0704-894 SPRING, SUSPENSION - RIGHT - PAINTED (BLACK)
    SPRING, SUSPENSION - RIGHT - PAINTED (BLACK)
  • 7
    0704-895 SPRING, SUSPENSION - LEFT - PAINTED (BLACK)
    SPRING, SUSPENSION - LEFT - PAINTED (BLACK)
  • 8
    1604-204 BLOCK, SPRING ADJUSTER - RIGHT - (BLACK)
    BLOCK, SPRING ADJUSTER - RIGHT - (BLACK)
  • 8
    1604-205 BLOCK, SPRING ADJUSTER - LEFT - (BLACK)
    BLOCK, SPRING ADJUSTER - LEFT - (BLACK)
  • 9
    0623-138 RING,RETAINING-ADJUSTER BLOCK 9/16
    RING,RETAINING-ADJUSTER BLOCK 9/16
  • 10
    8047-366 NUT,HEX FLG-NY LOCK 1/4-20 GR F Z & Y
    NUT,HEX FLG-NY LOCK 1/4-20 GR F Z & Y
  • 11
    1604-708 STRAP, LIMITER
    STRAP, LIMITER
  • 12
    8002-042 SCREW,CAP-HH 1/4-20 X1.00 G5 Z & Y
    SCREW,CAP-HH 1/4-20 X1.00 G5 Z & Y
  • 13
    8050-222 WASHER,FLAT- 1/4 X .734 X .063 Z & Y
    WASHER,FLAT- 1/4 X .734 X .063 Z & Y
  • 14
    1604-564 SPACER,INNER-UPPER IDLER
    SPACER,INNER-UPPER IDLER
  • 15
    0300-180 WHEEL, REAR IDLER
    WHEEL, REAR IDLER
  • 16
    1604-565 SPACER,OUTER-UPPER IDLER
    SPACER,OUTER-UPPER IDLER
  • 17
    8020-131 SCREW,CAP-HFH 5/16-18 X0.875 G5 Z & Y
    SCREW,CAP-HFH 5/16-18 X0.875 G5 Z & Y
