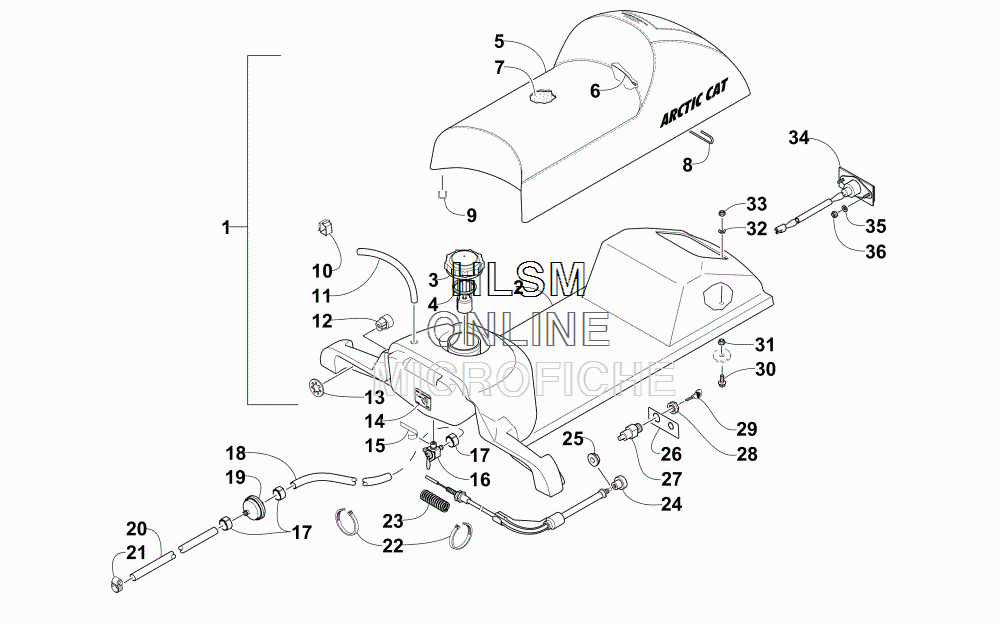

GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY для Arctic Cat ZR 120 (INTERNATIONAL) (BLACK) [S2015ZRAAAOSB] - 2015 года выпуска`

№

Артикул

Название
1

3718-760 COMPLETE SEAT - ASSEMBLY (INC. 2-9)

COMPLETE SEAT - ASSEMBLY (INC. 2-9)

91 930 ₽
2

1670-969 ...TANK, GAS/SEAT-BASE

...TANK, GAS/SEAT-BASE

45 750 ₽
3

2670-271 ...CAP, GAS TANK W/GAUGE (INC. 4)

...CAP, GAS TANK W/GAUGE (INC. 4)

6 440 ₽
4

0109-733 ......GASKET, GAS TANK CAP

......GASKET, GAS TANK CAP

540 ₽
5

5706-343 ...COVER, SEAT (INC. 6)

...COVER, SEAT (INC. 6)

25 580 ₽
6

5606-156 ......WIRE, SEAT-BENT

......WIRE, SEAT-BENT

710 ₽
7

1706-017 ...FOAM, SEAT(IDL 60-65),48@1.8

...FOAM, SEAT(IDL 60-65),48@1.8

15 390 ₽
8

2606-942 ...WIRE, SEAT (8.0)-BENT

...WIRE, SEAT (8.0)-BENT

380 ₽
9

0624-528 ...STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA

...STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA

24 120 ₽
10

0123-394 CLIP, CABLE

CLIP, CABLE

210 ₽
11

0610-969 HOSE - 25 FT

HOSE - 25 FT

0 ₽
12

0116-469 BUSHING, RECOIL STARTER

BUSHING, RECOIL STARTER

830 ₽
13

1623-841 NUT, PUSH - .850 X 1.20"

NUT, PUSH - .850 X 1.20"

290 ₽
14

3611-856 DECAL, SHUT-OFF VALVE

DECAL, SHUT-OFF VALVE

1 870 ₽
15

0670-289 TAPE, TEFLON-ROLL

TAPE, TEFLON-ROLL

960 ₽
16

2670-064 VALVE, SHUT-OFF - GAS TANK

VALVE, SHUT-OFF - GAS TANK

8 310 ₽
17

0610-419 CLAMP, HOSE (14.5), 12.0 MM TO 14.5 MM

CLAMP, HOSE (14.5), 12.0 MM TO 14.5 MM

290 ₽
18

0410-143 HOSE, GASLINE - 25 FT

HOSE, GASLINE - 25 FT

32 440 ₽
19

2670-075 FILTER, FUEL-INLINE-1/4

FILTER, FUEL-INLINE-1/4

2 700 ₽
20

0610-772 HOSE, GASLINE - 25 FT

HOSE, GASLINE - 25 FT

37 640 ₽
21

0623-373 CLAMP,HOSE #4 {6202}

CLAMP,HOSE #4 {6202}

440 ₽
22

0123-788 TIE, CABLE - 8 IN.

TIE, CABLE - 8 IN.

20 ₽
23

2670-144 SPRING, CHOKE RETURN

SPRING, CHOKE RETURN

1 240 ₽
24

0687-230 CABLE, CHOKE (INC. 25)

CABLE, CHOKE (INC. 25)

6 650 ₽
25

0687-181 ...NUT,PLASTIC-CHOKE

...NUT,PLASTIC-CHOKE

250 ₽
26

4611-767 DECAL, SWITCH/CHOKE

DECAL, SWITCH/CHOKE

1 870 ₽
27

0109-822 SWITCH, IGNITION (INC. 28-29)

SWITCH, IGNITION (INC. 28-29)

10 190 ₽
28

0609-111 ...NUT,RETAINING-5/8-32UN2B BLK PLASTIC

...NUT,RETAINING-5/8-32UN2B BLK PLASTIC

980 ₽
29

0116-065 ...KEY,IGNITION

...KEY,IGNITION

1 240 ₽
30

8020-040 SCREW,CAP-HFH 1/4-20 X 0.750 Z & Y

SCREW,CAP-HFH 1/4-20 X 0.750 Z & Y

270 ₽
31

8041-366 NUT, HEX - THIN LOCK

NUT, HEX - THIN LOCK

40 ₽
32

0623-184 WASHER,FLAT 1/4 X 1.0 Z & Y

WASHER,FLAT 1/4 X 1.0 Z & Y

170 ₽
33

0123-108 NUT 1/4-20 NYL CAP

NUT 1/4-20 NYL CAP

190 ₽
34

0609-934 TAILLIGHT ASSEMBLY

TAILLIGHT ASSEMBLY

8 110 ₽
35

8450-079 WASHER, FLAT-M5-5.78X20X2.30-Z & Y

WASHER, FLAT-M5-5.78X20X2.30-Z & Y

540 ₽
36

8427-502 NUT,HEX FLG-NYL LOCK M5X.8 CL8 Z & Y

NUT,HEX FLG-NYL LOCK M5X.8 CL8 Z & Y

150 ₽
