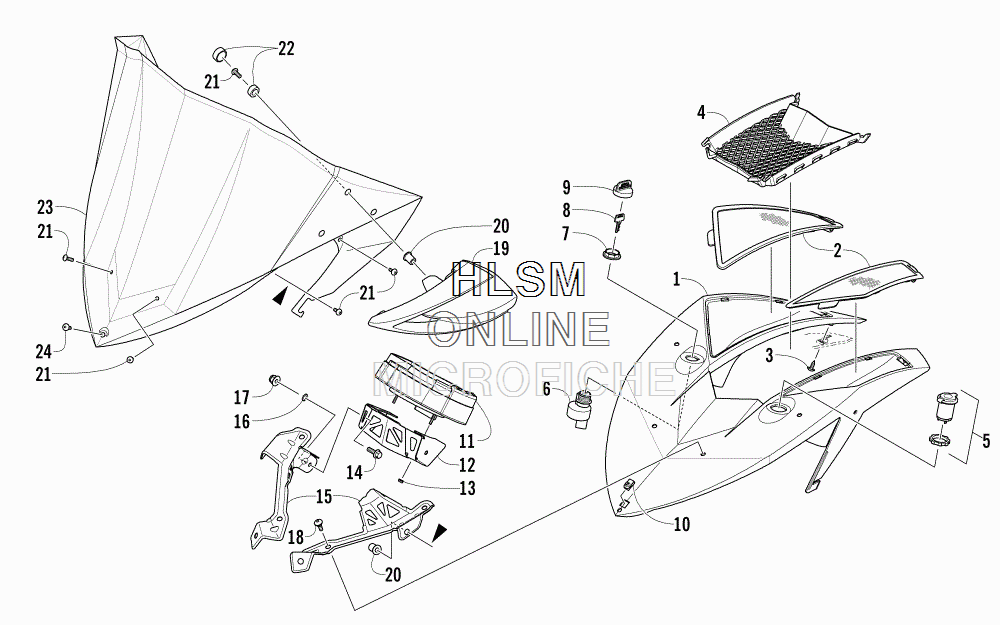

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat XF 8000 CROSS-TOUR 141 (ORANGE) [S2015X8HCTUSO] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    5706-535 POD, INSTRUMENT - ORANGE
    POD, INSTRUMENT - ORANGE
  • 2
    0608-736 SCREEN, INTAKE - INJECTION MOLD - RIGHT
    SCREEN, INTAKE - INJECTION MOLD - RIGHT
  • 2
    0608-737 SCREEN, INTAKE - INJECTION MOLD - LEFT
    SCREEN, INTAKE - INJECTION MOLD - LEFT
  • 3
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 4
    6606-556 VENT
    VENT
  • 5
    0641-897 OUTLET, ACCESSORY - 12V
    OUTLET, ACCESSORY - 12V
  • 6
    0609-910 SWITCH, IGNITION (INC. 7-9)
    SWITCH, IGNITION (INC. 7-9)
  • 7
    0430-050 ...NUT, FLANGE - IGNITION SWITCH
    ...NUT, FLANGE - IGNITION SWITCH
  • 8
    0430-042 ...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)
    ...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)
  • 8
    0430-043 ...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)
    ...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)
  • 9
    0430-054 ...COVER, KEY
    ...COVER, KEY
  • 10
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 11
    0620-391 SPEEDO/TACH-PREMIUM-CALIB (XF/M)
    SPEEDO/TACH-PREMIUM-CALIB (XF/M)
  • 12
    5706-252 BRACKET, SPEEDOMETER GAUGE - CENTER - BLACK
    BRACKET, SPEEDOMETER GAUGE - CENTER - BLACK
  • 13
    0423-493 NUT W/WASHER
    NUT W/WASHER
  • 14
    8410-616 SCREW, CAP
    SCREW, CAP
  • 15
    5706-250 BRACKET, SPEEDOMETER GAUGE - RIGHT - BLACK
    BRACKET, SPEEDOMETER GAUGE - RIGHT - BLACK
  • 15
    5706-251 BRACKET, SPEEDOMETER GAUGE - LEFT - BLACK
    BRACKET, SPEEDOMETER GAUGE - LEFT - BLACK
  • 16
    8053-212 WASHER, LOCK
    WASHER, LOCK
  • 17
    8427-602 NUT, LOCK
    NUT, LOCK
  • 18
    0423-355 SCREW, SHOULDER
    SCREW, SHOULDER
  • 19
    6639-629 MIRROR KIT - SINGLE (INC. SIX NO. 20-22)
    MIRROR KIT - SINGLE (INC. SIX NO. 20-22)
  • 19
    6639-630 MIRROR KIT - PAIR (INC. SIX NO. 20-22)
    MIRROR KIT - PAIR (INC. SIX NO. 20-22)
  • 20
    1623-764 ...NUT, EXPANSION
    ...NUT, EXPANSION
  • 21
    8477-516 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 22
    0124-054 ...CAP, SNAP W/ WASHER
    ...CAP, SNAP W/ WASHER
  • 23
    6606-514 WINDSHIELD, MID CRUISER W/ HOLES
    WINDSHIELD, MID CRUISER W/ HOLES
  • 24
    8477-510 SCREW, MACHINE - TSTRH M5 X 0.8 X 10
    SCREW, MACHINE - TSTRH M5 X 0.8 X 10
