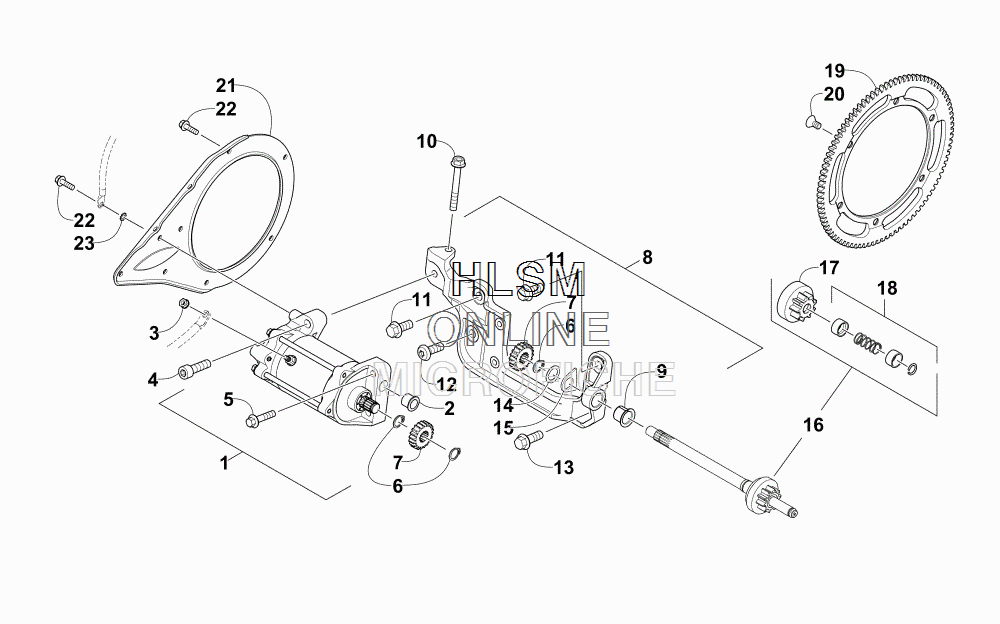

STARTER MOTOR ASSEMBLY для Arctic Cat XF 8000 CROSS-TOUR 141 (ORANGE) [S2015X8HCTUSO] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0745-370 MOTOR, STARTER (INC. 2)
    MOTOR, STARTER (INC. 2)
  • 2
    0645-108 ...BUSHING
    ...BUSHING
  • 3
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 4
    1423-093 SCREW, CAP-HSH M10 X 1.25 X 35
    SCREW, CAP-HSH M10 X 1.25 X 35
  • 5
    8408-836 SCREW, CAP-HFH M8X1.25X35 CL8.8 W/2353
    SCREW, CAP-HFH M8X1.25X35 CL8.8 W/2353
  • 6
    0645-638 RING, SNAP
    RING, SNAP
  • 7
    0645-678 GEAR,STARTER-20T-9.52MM
    GEAR,STARTER-20T-9.52MM
  • 8
    0745-400 BRACKET, MOUNTING - STARTER MOTOR (INC. 9)
    BRACKET, MOUNTING - STARTER MOTOR (INC. 9)
  • 9
    0645-749 ...BUSHING
    ...BUSHING
  • 10
    1623-945 SCREW, CAP-HFH-M8X1.25X65 CL 10.9
    SCREW, CAP-HFH-M8X1.25X65 CL 10.9
  • 11
    8409-026 SCREW, CAP-HFH M10X1.25X25 CL10.9 W/2353
    SCREW, CAP-HFH M10X1.25X25 CL10.9 W/2353
  • 12
    1623-963 SCREW, MACH-TSTRH M10X1.25X30 Z & Y/CL 10.9
    SCREW, MACH-TSTRH M10X1.25X30 Z & Y/CL 10.9
  • 13
    8409-031 SCREW, CAP-HFH M10X1.25X30 CL10.9 W/2353
    SCREW, CAP-HFH M10X1.25X30 CL10.9 W/2353
  • 14
    0645-752 WASHER, THRUST 17.17 ID X 24.41 OD.
    WASHER, THRUST 17.17 ID X 24.41 OD.
  • 15
    0645-780 WASHER, THRUST-16.6ID X 33.3 OD X 2.66MM
    WASHER, THRUST-16.6ID X 33.3 OD X 2.66MM
  • 16
    0745-405 SHAFT, PINION - ASSEMBLY (INC. 17-18)
    SHAFT, PINION - ASSEMBLY (INC. 17-18)
  • 17
    0645-686 ...GEAR, PINION-10T
    ...GEAR, PINION-10T
  • 18
    0745-398 ...PINION STOPPER ASSEMBLY
    ...PINION STOPPER ASSEMBLY
  • 19
    0745-402 RING GEAR, ELECTRIC START - TREATED
    RING GEAR, ELECTRIC START - TREATED
  • 20
    1623-821 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    0645-694 PLATE, RETAINING - STARTER MOTOR
    PLATE, RETAINING - STARTER MOTOR
  • 22
    8408-621 SCREW, CAP
    SCREW, CAP
  • 23
    8053-242 WASHER, EXTERNAL TOOTH LOCK - 5/16 (AZ & Y)
    WASHER, EXTERNAL TOOTH LOCK - 5/16 (AZ & Y)
