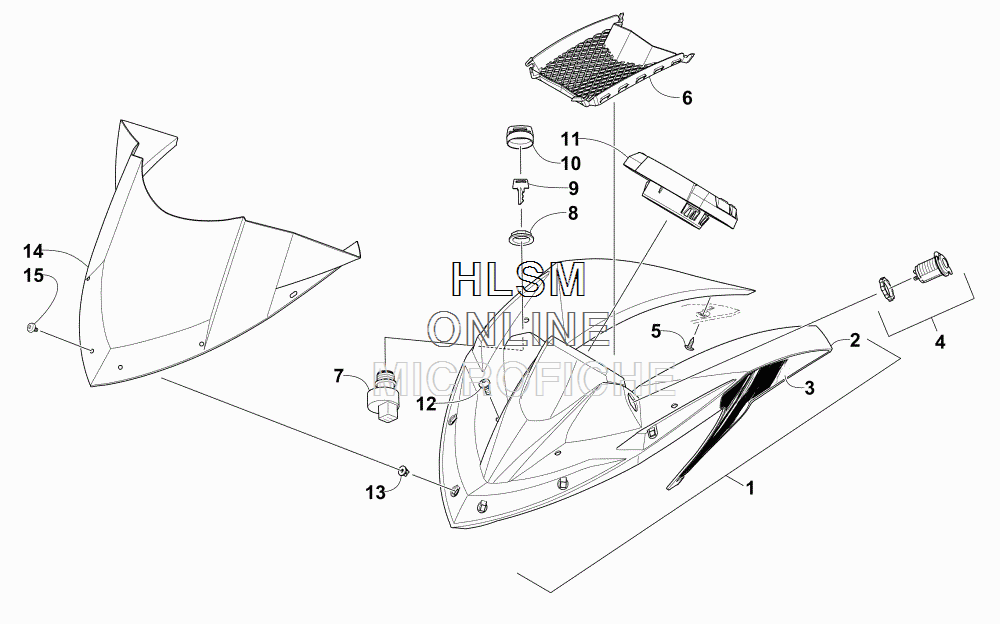

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat XF 7000 SNO PRO 137 (ORANGE) [S2015XFUSPUSO] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-325 POD, W/DECALS - (BLACK) (INC. 2-3)
    POD, W/DECALS - (BLACK) (INC. 2-3)
  • 2
    6606-628 ...POD, INSTRUMENT - (BLACK)
    ...POD, INSTRUMENT - (BLACK)
  • 3
    1621-460 ...DECAL, POD - RIGHT
    ...DECAL, POD - RIGHT
  • 3
    1621-461 DECAL, POD - LEFT
    DECAL, POD - LEFT
  • 4
    0641-897 OUTLET, ACCESSORY - 12V
    OUTLET, ACCESSORY - 12V
  • 5
    1623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
    SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
  • 6
    6606-556 VENT,POD
    VENT,POD
  • 7
    0609-911 SWITCH, IGNITION (INC. 8-10)
    SWITCH, IGNITION (INC. 8-10)
  • 8
    0430-050 ...NUT, FLANGE - IGNITION SWITCH
    ...NUT, FLANGE - IGNITION SWITCH
  • 9
    0430-042 ...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)
    ...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)
  • 9
    0430-043 ...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)
    ...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)
  • 10
    0430-054 ...COVER, KEY
    ...COVER, KEY
  • 11
    0720-019 GAUGE, SPEEDOMETER
    GAUGE, SPEEDOMETER
  • 12
    2623-042 SCREW,SHOULDER-TSBH-M6-1.0 X 18- (BLACK)
    SCREW,SHOULDER-TSBH-M6-1.0 X 18- (BLACK)
  • 13
    1623-025 INSERT GROMMET,SCREW-PLASTIC
    INSERT GROMMET,SCREW-PLASTIC
  • 14
    6606-876 WINDSHIELD - LOW - (ORANGE)
    WINDSHIELD - LOW - (ORANGE)
  • 15
    2623-146 SCREW,SELF TAP-TSTRH-M6X14-BOSSCREW
    SCREW,SELF TAP-TSTRH-M6X14-BOSSCREW
